Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera

Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera thumbnail-1
Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera thumbnail-2
Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera thumbnail-3
Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera photo-1
Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera photo-2
Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP Mini Poe IP Dome Camera photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-2CD2512F-IS
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-2CD2512F-IS
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

mini dome ip camera
HD720p Video, Up to 10m IR
DWDR/3D DNR/BLC, Support On-board Storage
Built-in 2.8mm lens
Audio,alarm,poe

Hikvision High Quality Indoor 2.8mm Lens DWDR BLC IR 1.3MP mini poe IP dome Camera



Features of poe ip dome camera:

1/3" 1.3 Megapixel Progressive Scan CMOS;

ICR true day/night;

Max 25fps/30fps @1.3M(1280×960) & 720P;

H.264/M-JPEG & dual-stream compression;

Built-in 2.8mm lens;

Low illumination;

3D DNR & DWDR & BLC;

IR range: up to 10m;

PoE, Audio I/O; Alarm I/O



Specifications

DS-2CD2512F-IS

Camera

Image Sensor:

1/3" Progressive Scan CMOS

Min. Illumination:

0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter time:

1/25(1/30) s to 1/100,000 s

Lens:

4mm@ F2.0 (2.8mm, 6mm optional)
Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm)

Lens Mount:

M12

Adjustment Range:

Pan: -30°-30°, Tilt: 0~75°, Rotation: 0-360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR



Compression Standard

Video Compression:

H.264/M-JPEG

Bit Rate:

32 Kbps ~ 16 Mbps

Audio Compression:

-S: G.711/G.726/MP2L2

Dual Stream:

Yes




Max. Image Resolution:

1280x960

Frame Rate:

50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720),

25 fps (704 x 576), 25 fps (640 x 480)
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720),

30 fps (704 x 576), 30 fps (640 x 480)

Image Settings:

Rotate mode, Saturation, Brightness, Contrast adjustable

by client software or web browser

BLC:

Yes, zone configurable

ROI:

Yes, up to 4 configurable areas



Network

Network Storage:

NAS

Alarm Trigger:

Motion detection, Tampering alarm

Protocols:

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,

RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,

Bonjour

Security:

User Authentication, Watermark, IP address filtering,

anonymous access

System Compatibility:

ONVIF, PSIA, CGI, ISAPI



Interface

Communication Interface:

1 RJ45 10M / 100M ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

Reset Button:

Yes



General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

Max. 5 W

Impact Protection:

IEC60068-275Eh, 50J; EN50102, up to IK08

Weather Proof:

IP66

IR Range:

10 meters

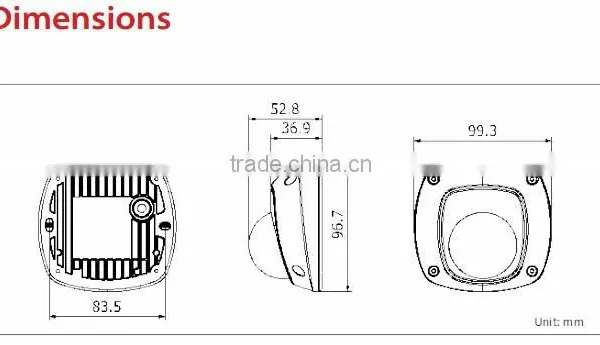

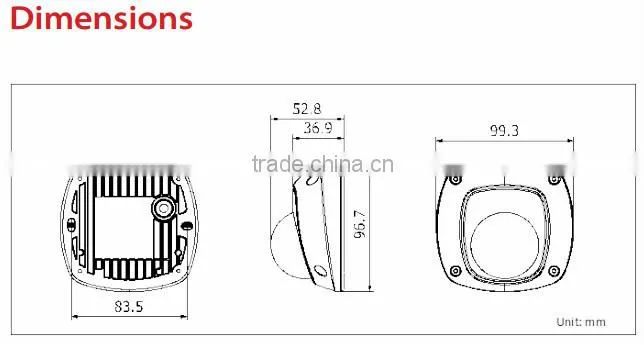

Dimensions:

99.3×96.7×52.8

Weight:

600g (1.32 lbs)
