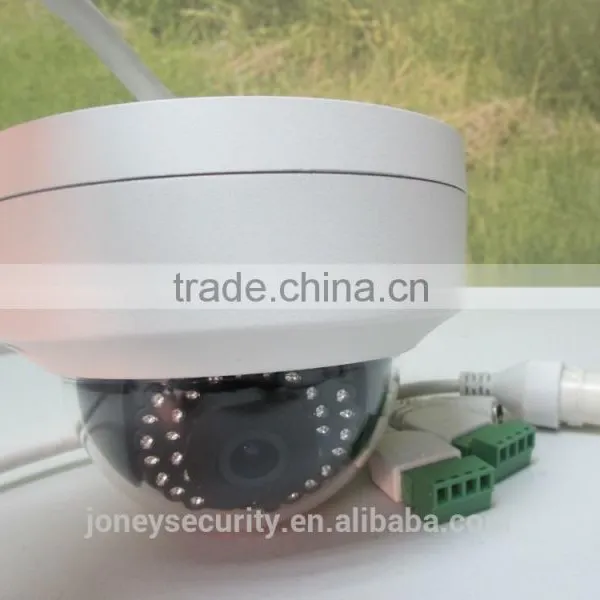

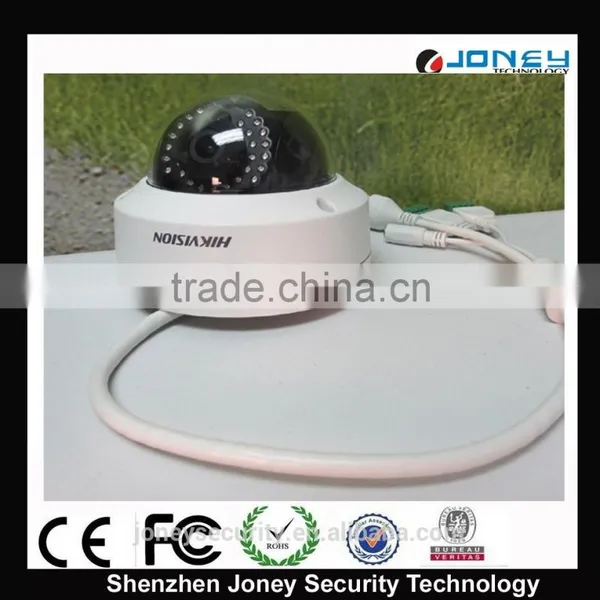

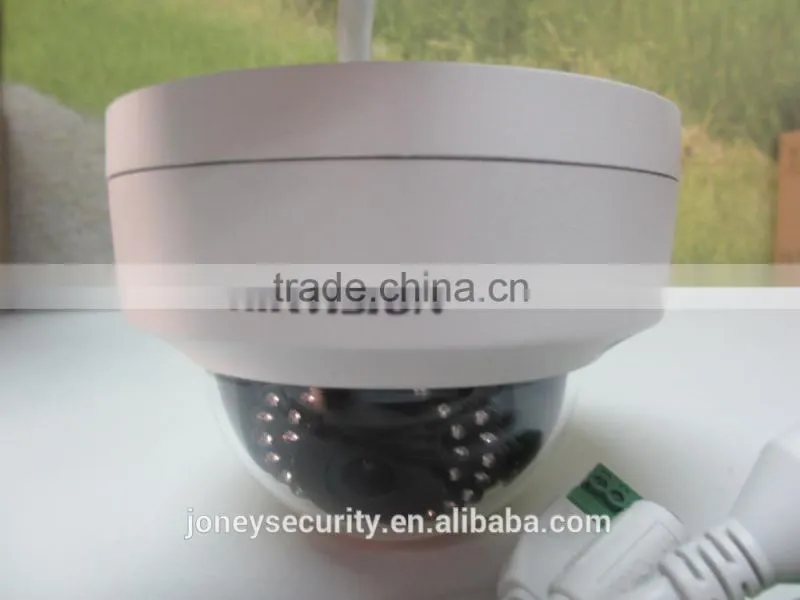

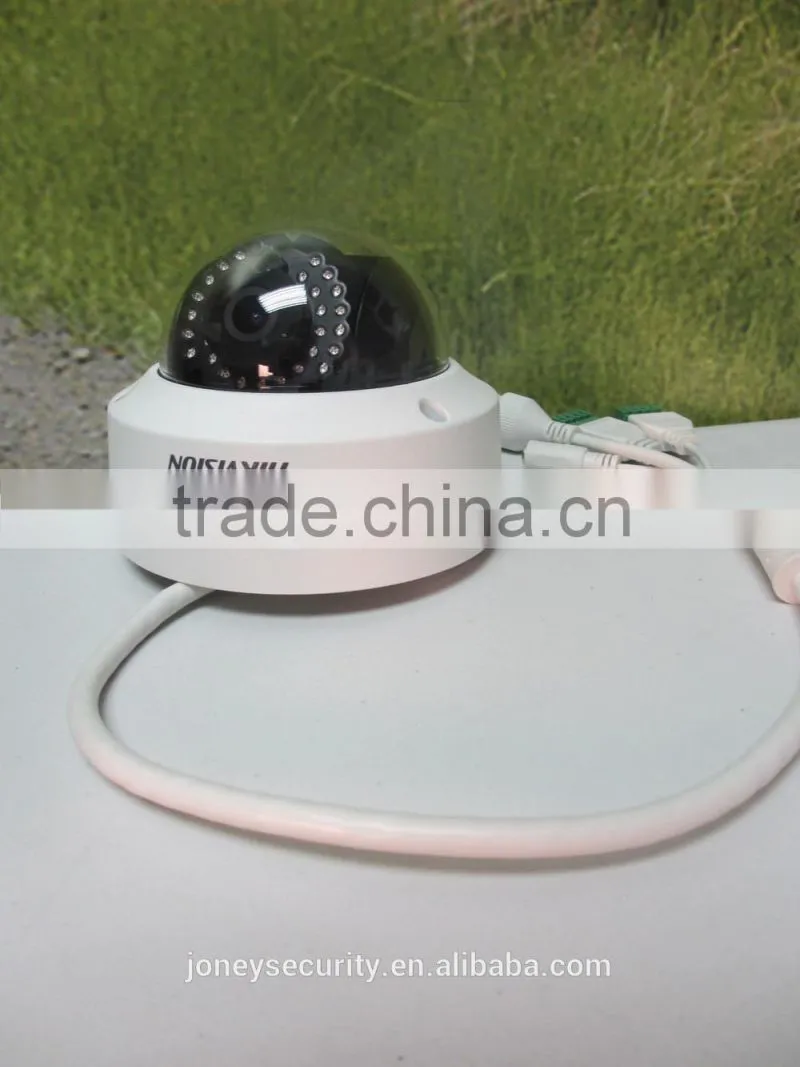

Hikvision 3MP poe ip camera DS-2CD2132-I / DS-2CD2132F-IS
Features: hikvision ip camera dome ip camera network ip camera hikvision ip camera
- DS-2CD2132-I
- 3MP IP66 Network Mini Dome Camera
-
• 3MP (2048 x 1536) high resolution• Full HD1080p real-time video• Up to 30m IR visibility• True day/night• 3D DNR & DWDR & BLC• IP66 rating• Vandal-proof housing
Specification: hikvision ip camera dome ip camera network ip camera hikvision ip camera
DS-2CD132-I
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Min. Illumination: | | | 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Lens: | | | 4mm@ F2.0 (2.8mm, 6mm, 12mm optional) 2048 × 1536: Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm) 1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan:0° - 355°, Tilt: 0° - 65° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| Video bit rate: | | | 32Kbps~12Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 2048×1536 |
| Frame Rate: | | | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 5 W (Max. 7 W with IR cut filter on) |
| Impact Protection: | | | IK08 Protection Level |
| Weather Proof: | | | IP66 |
| IR Range: | | | Approx. 10 to 30 meters |
| Dimensions: | | | Φ111 × 82 (4.4” × 3.2”) |
| Weight: | | | 500g (1.1 lbs) |
Multiple languages for OSD

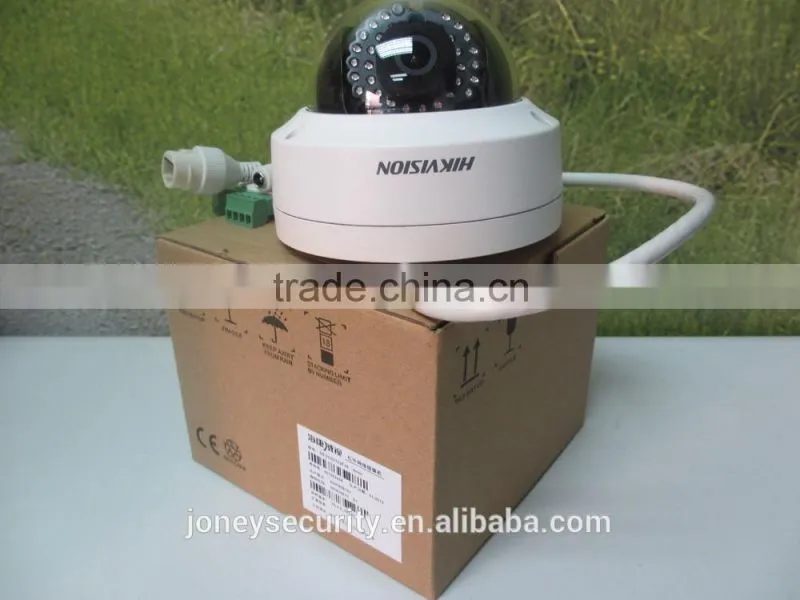

1PCS in each brown box ,24pcs full carton, 1.0kg/pcs ,24 kgs/carton
Company Info
Shenzhen Joney Security Technology Co., Ltd is specializing in developing, manufacturing and marketing of security products.
Our products include CCTV and access Control, such as CCTV cameras, DVR, IP cameras, NVR, Analog HD cameras like HD-CVI, AHD and HD-SDI.
Access control products such as biometric devices, access control system, fingerprint locks and Home alarm system.
Meanwhile we are the Agent for some top level brands in China like Dahua, Hikvision and ZK Software, with large quantity in stock to make fast delivery.
Established in 2009, We serve more than 300 customers worldwide, 2 factories with a total area of 1500 square meters, Key components from Sony, Sharp, Panasonic and LG.
100QC inspectors ensure the all of our items bear CE, FCC and RoHS marks, 8 QC inspection steps before shipping, 18 months warranty.
20 engineers and 50 technicians will work on your OEM/ODM requirements and after sale service.
500-piece orders are shipped within 7 working days.
To benefit from our excellent service and products, Please contact us today.
