Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera

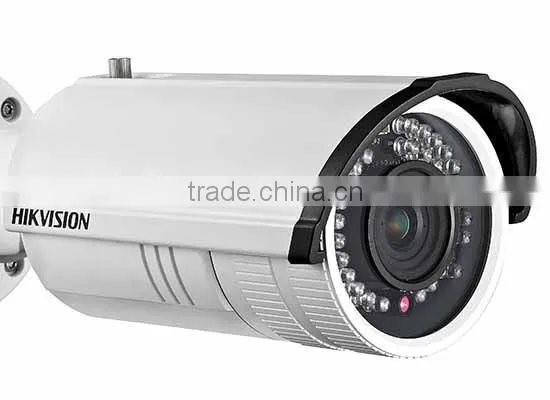

DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera

DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera thumbnail-1
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera thumbnail-2
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera thumbnail-3
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera thumbnail-4
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera photo-1
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera photo-2
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera photo-3
DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip Camera photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-2CD4232FWD-I
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-2CD4232FWD-I
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof





Joney Main Products



                             HD IP Camera   HD AHD Camera                                        HD SDI Camera    HD CVI Camera   HD IP PTZ                   Analog CCTV Camera   Dahua Products   Hikvision Products    AHD DVR   Standalone DVR     NVR     Hybrid  DVR     CCTVAccessaries







Company Information





 Further information about our products , please add my skype : joneytech_sales01











DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal  ip camera





Product Description



  Specification :  PoE Hikvision ip camera



  • DS-2CD4232FWD-IZH
Camera



DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera







Image Sensor:  1/3" Progressive Scan CMOS
Minimum Illumination:  0.14 lux  F1.4, AGC on, 0 lux with IR
Shutter Time:  1s ~ 1/100,000s
Lens:  2.8 ~ 12mm @F1.4, angle of view: 91.2° ~ 28.3° (-Z: motorized VF lens)
Lens Mount:  φ14
Day& Night:  ICR
Digital Noise Reduction:  3D DNR
Wide Dynamic Range:  120dB
Auto Iris Lens:  DC drive
Angle of view:  113° ~ 33.8°
Noise reduction:  3D DNR
Compression Standard
Video Compression:  H.264/Mpeg4/M-JPEG
H.264 Compression Profile:  Baseline profile / main profile / high profile
Bit Rate:  32 Kbps~16Mbps
Max Image Resolution:  1920 x 1080
Frame Rate:  60 Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings:  Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
browser
BLC:  Yes, zone configurable
3rd stream frame rate:  Independent setting, up to:
60Hz: 30fps (1920 x 1080)
ROI codec M:  Yes, up to 4 configurable areas.
Network
Network Storage:  NAS
Alarm Trigger:  Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error
Protocols:  TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
System Compatibility:  ONVIF, PSIA, CGI
Security:  User authentication, watermark, IP address filtering, anonymous access, reset
Interface
Communication Interface:  1 RJ45 10 M/100 M Ethernet port
On-board Storage:  Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Power Supply:  12 V DC ± 10%; PoE (802.3af)
Power Consumption:  Max. 11W
-Z/-H: Max. 12W
Working Temperature (Operating Conditions):  -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Impact Protection:  IEC60068-275Eh, 50J; EN50102, exceeding IK10
IR Range:  Up to 30m
Dimensions:  98 x 105 × 328.8 mm
Weight:  1700 g (3.75 lbs)
Weather Proof:  IP66





DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip cameraDS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera





 Features :  PoE Hikvision ip camera



• Up to 2048 x 1536 high resolution
• Full HD1080p video
• Smart Codec
• 120dB WDR, 3D DNR
• Triple streams
• On-board storage, up to 64GB
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD
• Smart Facial Detection
• Intrusion Detection
• Built-in heater(-H)
• Defog
• EIS (Electronic Image Stabilization)



 DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip cameraDS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera

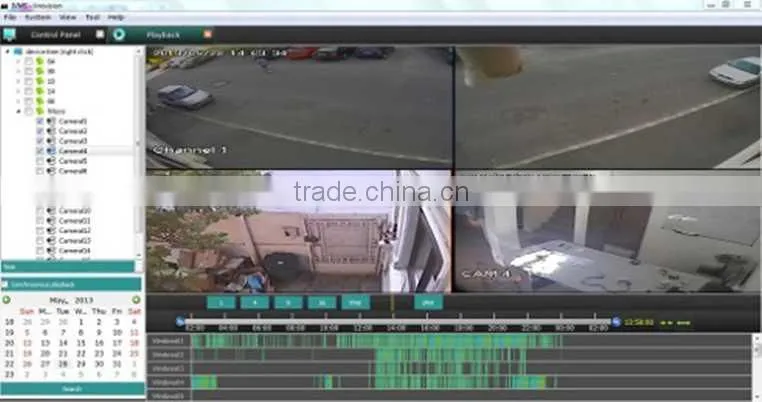

Powerful CMS Monitoring Software



DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera





Software

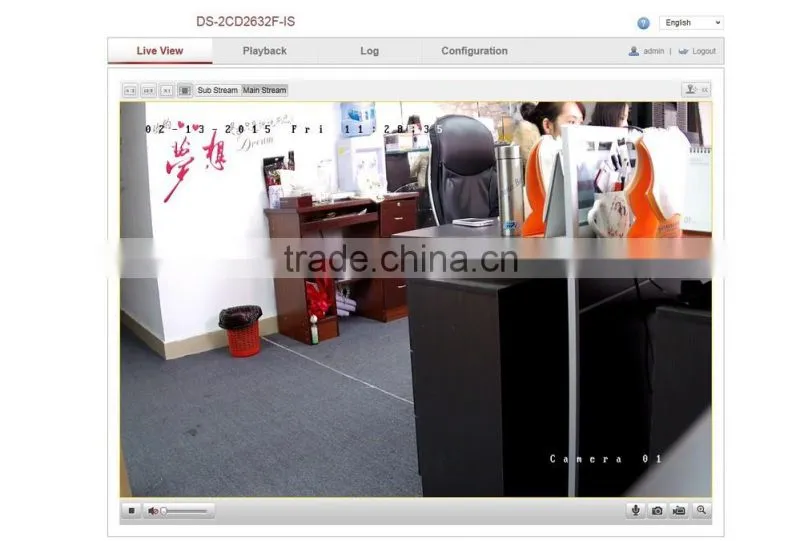

Hikvision ip camera IE interface



Multiple languages optional for OSD menu





HIKVISION IP CAMERA CMS VIEW INTERFACE
