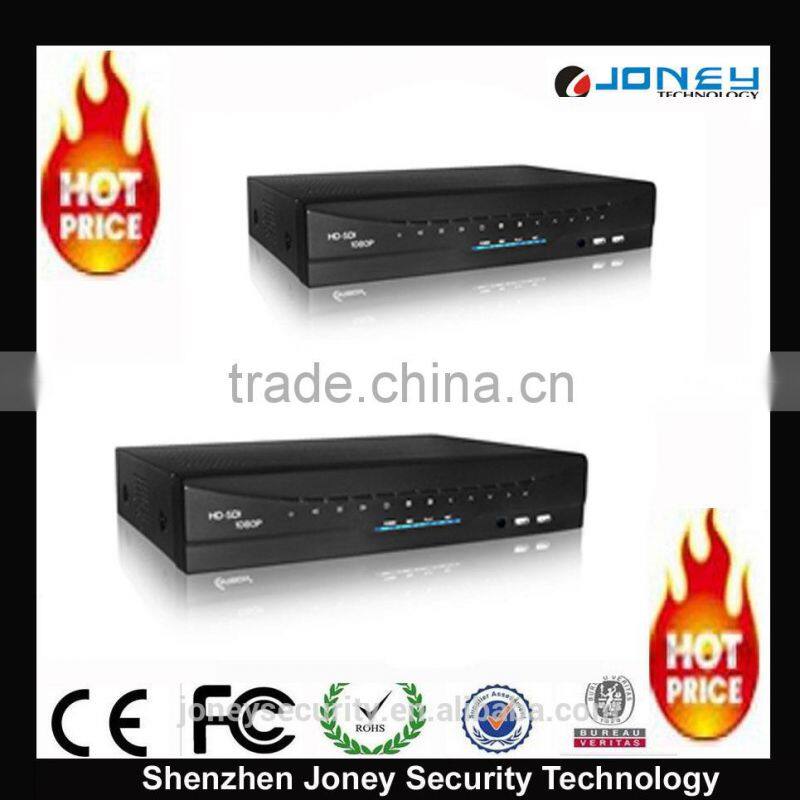

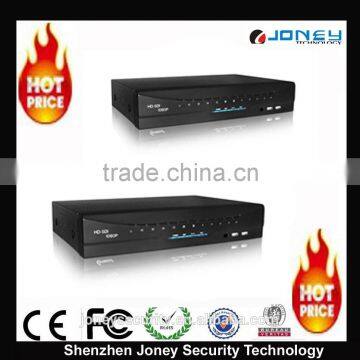

7CH HDMI H.264 hd Cctv Digital Video Recorder (1080P Hd Sdi Dvr)

Name: 7CH HDMI H.264 hd Cctv Digital Video Recorder (1080P Hd Sdi Dvr)
Brand: Joney
SKU: 128336977
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney

Model Number:

DVR-HD9073E

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney

Model Number DVR-HD9073E

Specifications

4CH HD-SDI video inputs
4ch audio in & 1ch audio out
Max 100/120fps@1080P
HDMI, VGA output
4ch alarm in &1ch alarm outRS485

7CH HDMI h.264 hd cctv digital video recorder (1080P Hd Sdi Dvr)

Product Description

H.264 Hd Cctv Digital Video Recorder Features :

4CH HD-SDI video inputs .

4ch audio in & 1ch audio out.

Max 100/120fps@1080P

HDMI, VGA output .

4ch alarm in &1ch alarm out, RS485

4ch sync realtime playback:4x1080P.

2 USB, RJ45(1000M),Support free DDNS,P2P,3G,DC12V,3.5A, 4KG

DVR size:352(W)x252(D)x71(H)mm

H.264 Hd Cctv Digital Video Recorder Specification

Model				HD9043E	HD9073E
Video		HD-SDI Camera Input		4 Channels (1080p/1080i/720p)	7 Channels (1080p/1080i/720p)
		Output		1 HDMI, 1 VGA
Audio		Audio Input		4 RCA
		Output		1 RCA
Sensor In / Alarm Out				4/1
Operating System				Embedded Linux OS
Display	HDMI Out			1920x1080p , 1920x1080i
	VGA Out			1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
	Split Screen			1/4	1/4/7/9
Recording	Compression(Video/Audio)			H.264 / ADPCM
	Resolution			1080p, 720p, 960H, D1, 2CIF, CIF
	Picture Quality			3 Steps (Best / Good / Standard)
	Rec Mode			Normal / Alarm / Motion / Audio event / Duration / Schedule
	Total Frame		NTSC	120fps@1080p	210fps@1080p
			PAL	100fps@1080p	175fps@1080p
Playback	Split Display			1/4	1/4/7/9
	Search Mode			Date & Time, Calendar, Event(Alarm/Motion), Bookmark
	Speed			Forward(x1/2/4/8/16) , Backward(x2/4/8/16)
Network	Protocol			TCP/IP, SMTP, HTTP, DHCP, PPPOE(ADSL)
	Serial Communication			RS-485 x2 (PTZ & Keyboard Control)
	Web Browser			Internet Explorer 5.0 Higher
	Event Transport			E-mail notification with JPEG when Event occurs
	Monitoring Software			PC Client, CMS, Mobile Viewer
Archive	Archive Device			USB 2.0 x2
Event	Motion Detection			Area : Programmable motion detection area for each camera
				Sensitivity : 3 Steps for each channel
	Alarm Hold Time			5~240 Sec
	Event Log			Up to 2,500 events (Alarm/ Motion/ Video&Power Loss etc.)
PTZ control	Controller			IR Remocon / Mouse / Keyboard
	Protocol			RS485 Interface (Pelco-P/D)
Others	HDD			Support internal 2xHDD up to 6TB
	Power Source			DC 12V/3.5A
	Power Consumption			40W
	Weight (Unit/Box)			3Kg / 4Kg
	Dimension (Unit/Box)			352(W)x252(D)x71(H)mm / 400(W)x340(D)x145(H)mm
