1.Summarize

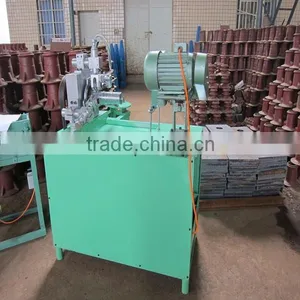

YJG110 type pipe-maling machine is for volume production of reserved channels for construction of bridges, construction of prestressed spiral corrugated duct.
The structure of this machine is compact, small size, light weight, easy indoor and outdoor construction site operations. The duct it produced with impermeability, pressure, high strength, good flexibility.
2. Main technical parameter for lqm duct machine
Processing Speed |
6m/min |
Rotate |
1230r/min |
Corrugated Duct Thread Pitch |
25mm |
Cutter Power |
2.2KW/380V/ |
Metal Strip Spec |
0.25-0.4mm×36mm |
Rotate |
2840r/min |
Motor Spec |
YCT180-4A |
Cooling Pump Power |
90w/380v |
Motor Power |
4KW/380V |
Flow |
25L/min |
3. Opeartion of lqm duct machine
1. Before operation, you should check assembly of the machine
2. Adjusting the embossing device and the clamping device, adjust the hand screw pressed flower round and pinch roller, embossing wheel, relying on the mandrel to push pressure seams, and a pattern, use the pinch roller compression, and thenlock nut on the screw pressed flower round and pinch roller handle screw.
3. Pressing the switch of the electric pump
4. Starting the machine to produce, when the length is 500mm, turning down the machine.
5. Starting the cutting machine and cut this duct.
6. Measuring the pitch and adjust it.
7. After measuring and adjusting repeatedly, when the duct confirming, you can produce large quantity.
8. When the strip is used up, lap up the new put on the strip and the original strip.
