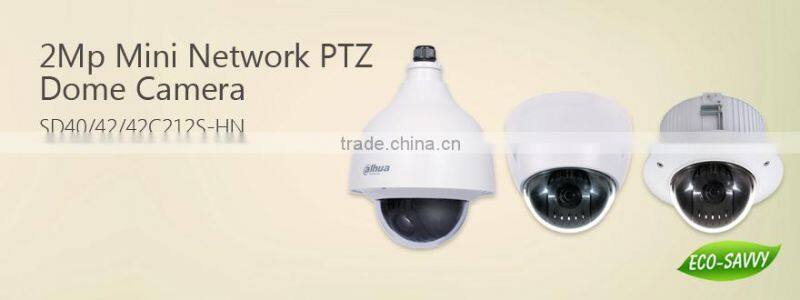

Dahua 2015 New CCTV Security Products, IP66, POE 2MP Mini Network PTZ Dome Camera
- shenzhen
- Money Gram Credit Card
You May Like
-
Dahua PTZ Camera , SD65S220-HNI Mini Ptz Camera With Auto Tracking
-
2015 New Products Dahua Ptz Dome Camera , SD63220S-HN PTZ Dome Camera
-
CA-FW191I 800TVL Dahua Camera With Motorized Zoom Lens 2.7-9mm
-
1080P 2 Megapixel Hd-cvi Dahua Camera
-
Motorized 3-9mm Lens IR POE Dahua ip Camera IPC-HFW5302C
-
8 Channels 4 Poe Nvr for Dahua H.264 Nvr Kits NVR4108H-P Onvif Hdmi
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua | |
| Model Number | SD40212S-HN | Type | Other, Digital Camera, new cctv product 2015 | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
new cctv product 2015Powerful 12x optical zoom
Support intelligent 3D positioning
IP66, POE+
HD IP Camera HD AHD Camera HD SDI Camera HD CVI Camera HD IP PTZ Analog CCTV Camera Dahua Products Hikvision Products AHD DVR Standalone DVR NVR Hybrid DVR CCTV Accessaries
Dahua 2015 New CCTV Security Products, IP66, POE 2MP Mini Network PTZ Dome Camera
Features : new cctv product 2015
>Support dual-streams encoding
>Max. 25/30fps@1080P (1920x1080) & 50/60fps@720P resolution
>DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
>Max 300°/s pan speed, 360° continuous pan rotation
>Up to 80 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>IP66, POE+
Specification : new cctv product 2015
| Model | DH-SD40212S-HN | DH-SD42212S-HN | DH-SD42C212S-HN | |
| Camera | ||||
| Image Sensor | 1/2.8" Exmor CMOS | |||
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |||
| Horizontal Resolution | >1000TVL | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | 1/3s ~1/30,000s | |||
| Min. Illumination | Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 | |||
| S/N Ratio | More than 55dB | |||
| Camera Features | ||||
| Day/Night | Auto(ICR) / Color / B/W | |||
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |||
| Gain Control | Auto / Manual | |||
| Noise Reduction | 2D / 3D | |||
| Privacy Masking | Up to 24 areas | |||
| Digital Zoom | 16x | |||
| Lens | ||||
| Focal Length | 5.1 mm~61.2mm (12x Optical zoom) | |||
| Max Aperture | F1.6~ F3.0 | |||
| Focus Control | Auto / Manual | |||
| Angle of View | H: 51.3° ~ 4.64° | |||
| Close Focus Distance | 100mm~1000mm | |||
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |||
| Manual Control Speed | Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s | |||
| Preset Speed | Pan: 300°/s; Tilt:200°/s | |||
| Preset | 80(DH-SD) | |||
| PTZ Mode | 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan | |||
| Speed Setup | Human-oriented focal length/ speed adaptation | |||
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |||
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |||
| Video | ||||
| Compression | H.264 / MJPEG | |||
| Resolution | 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | |||
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) | ||
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |||
| Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |||
| Audio | ||||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | |||
| Interface | 1/1 channel In/Out | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |||
| Compatibility | ONVIF PSIA CGI | |||
| Max. User Access | 20 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Auxiliary Interface | ||||
| Memory Slot | Micro SD, Max 64GB | |||
| RS485 | N/A | |||
| Alarm | 2/1 channel In/Out | |||
| General | ||||
| Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |||
| Power Consumption | 12W, 22W(Heater on) | 12W | ||
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | -20ºC ~ 60ºC / Less than 90% RH | ||
| Ingress Protection | IP66 | N/A | ||
| Vandal Resistance | IK10 | |||
| Dimensions | Φ186mm×234mm | Φ170mm×155mm | Φ198mm×158mm | |
| Weight | 2.3Kg | 1.8Kg | 2.3Kg | |

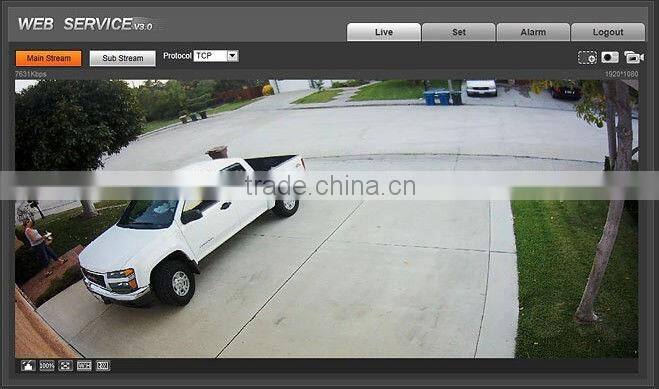

Day time by IE:

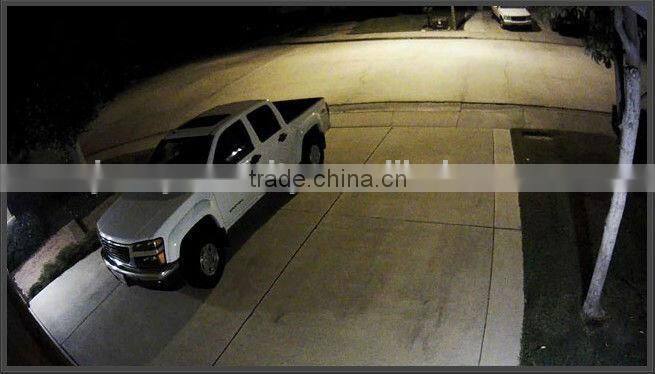

Night time by IE:
*Quick Professinal Reply
Your inquiry related to our products or price will be reply within 24 hours(Except weekend or holiday in China)
*OEM&ODM
Any of your idea on camera,we can help put it into real products.
*Delivery Time
3-7 working days,7-15 working days for bulk quantity.
We are all ready to serve you.
*MOQ
Lower MOQ,and we suggest our partner can test our sample first.
Sample order is accepted.
*Warranty
2 years warranty & life long technical support.All products have been passed through strict quality control.
*Payment
We accept Paypal,Western Union or T/T before production.
If buyer have any problems about payment,please contact us ASAP.
Further information please add my skype : joneytech_sales01
