Home > Products > Dahua IPC/NVR/DVR/HD-CVI > HAC-HDW2200M 2Megapixel 1080P Waterproof IR HD CVI Mini Dome Dahua Camera

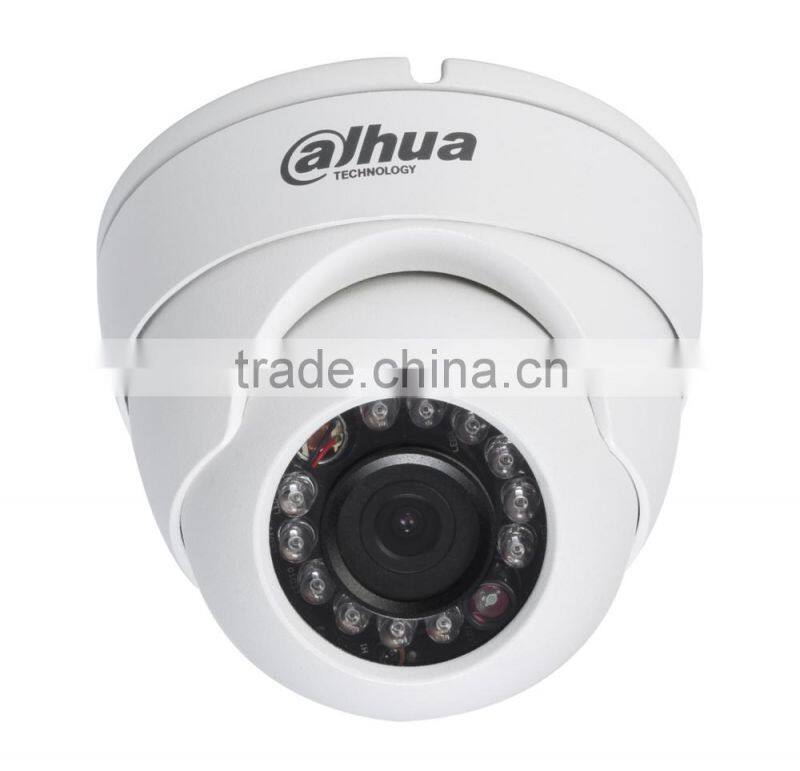

HAC-HDW2200M 2Megapixel 1080P Waterproof IR HD CVI Mini Dome Dahua Camera
- shenzhen
- Credit Card
You May Like
-
Cheap 4/8 Channel NVR Smart Mini 1U NVR Digital Network Video Recorder Dahua NVR
-
Dahua 2015 New CCTV Security Products, IP66, POE 2MP Mini Network PTZ Dome Camera
-
Dahua PTZ Camera , SD65S220-HNI Mini Ptz Camera With Auto Tracking
-
2015 New Products Dahua Ptz Dome Camera , SD63220S-HN PTZ Dome Camera
-
CA-FW191I 800TVL Dahua Camera With Motorized Zoom Lens 2.7-9mm
-
1080P 2 Megapixel Hd-cvi Dahua Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua | |
| Model Number | HAC-HDW2200M | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
dahua camera25/30fps@1080P
6mm fixed lens, IP66, DC12V
OSD, 20m, Smart IR
100% Dahua English version, software, meun same

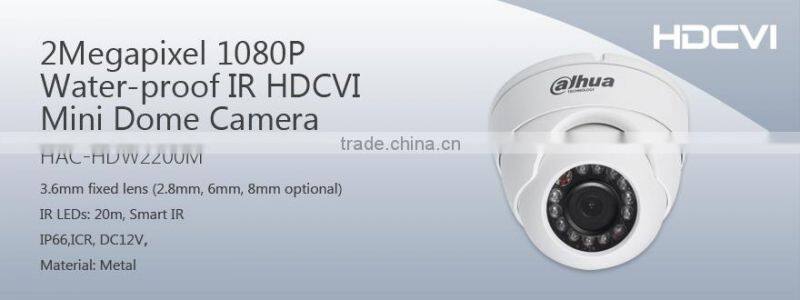

HAC-HDW2200M 2Megapixel 1080P Waterproof IR HD CVI Mini Dome dahua camera
Features:
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switch.
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V



Specification:
| Model | DH-HAC-HDW2200MP | DH-HAC-HDW2200MN |
| Camera | ||
| Image Sensor | 1/3" 2Megapixel CMOS | |
| Effective Pixels | 1920(H) x1080(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 1920×1080@25 fps? 1920×1080@30 fps?1280×720@25 fps? 1280×720@30 fps?1280×720@50 fps?1280×720@60 fps | |
| Synchronization | Internal | |
| Min. Illumination | 0.05Lux F1.2(AGC ON),0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Max. IR LEDs Length | 20m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 3D/2D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm, 6mm, 8mm optional) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | Max 6W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 300m via 75-3 coaxial cable | |
| Ingress Protection | IP66 | |

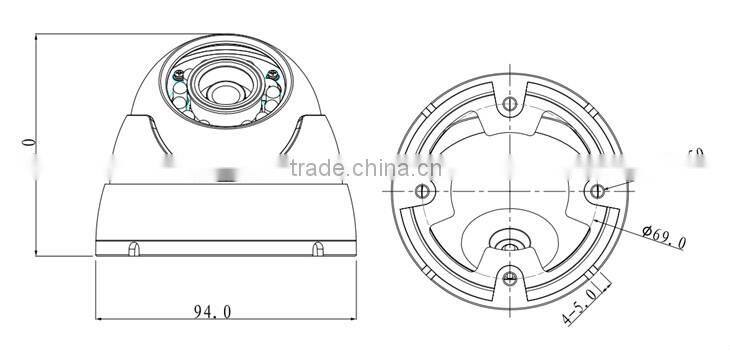

| Dimensions | Φ94.0mm x 98mm | |
| Weight | 0.33Kg | |
