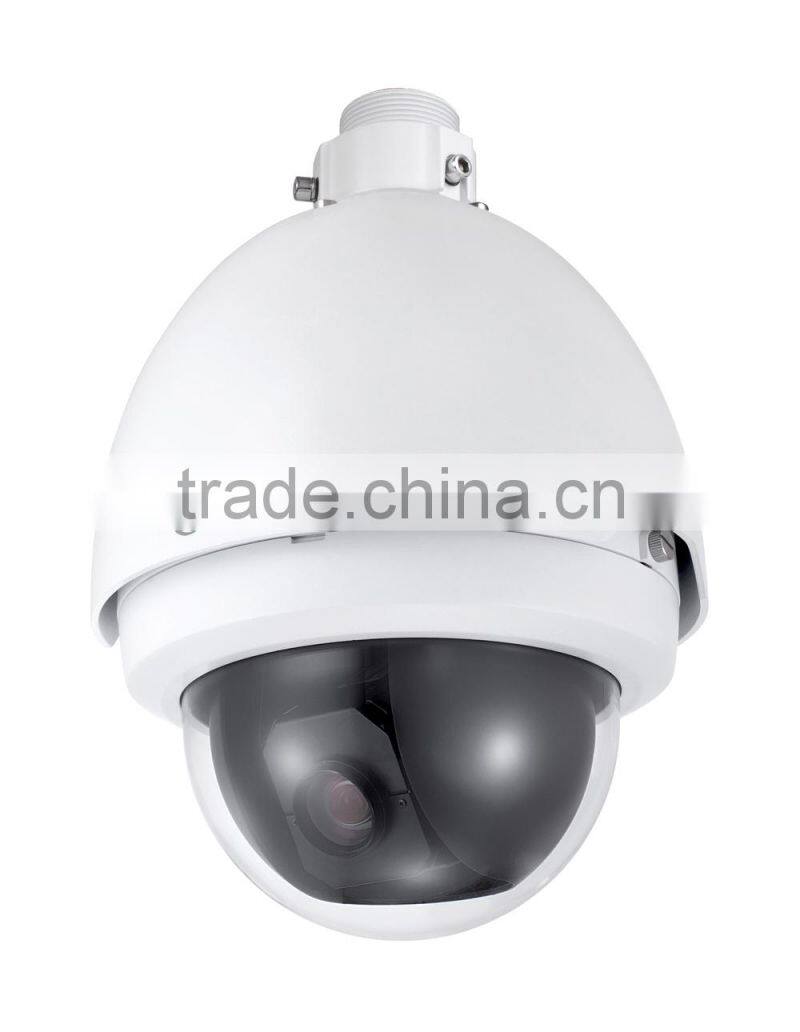

Dahua Speed Dome Camera 2MP 30X Zoom Dahua Auto Tracking PTZ ip Camera(SD65230HNI)
- Shenzhen
- Money Gram Credit Card
You May Like
-
2mp 20X Optical Zoom Dahua Speed Dome Camera Dahua Auto Tracking PTZ ip Camera(SD65220HNI)
-
Easy Installation 3megapixel Full HD 20X Optical Zoom Auto Focus Network Dahua PTZ Dome Camera(SD65320-HN)
-
Dahua High Speed Full HD ip Camera 1.3MP 30X Optical Zoom Dahua Infared PTZ Dome Camera With Wipe WDR SD Card Slot Alarm
-
150M IR Day& Night 2MP 30X Optical Zoom Full HD Dahua IP PTZ Camera With Wipe WDR SD Card Slot Alarm
-
Dahua 3 Megapixel 20x Zoom Full HD Wipe IP Dahua Speed Dome Camera PTZ Dome Camera(SD6AW320-HN)
-
H.264 Smart Mini Network 1080P 8 Channel Dahua POE NVR
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua | |
| Model Number | SD65230-HNI | Type | Other, IP Camera, Dahua Auto Tracking PTZ ip Camera(SD65230HNI) | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Vandal-proof |
Product Description
2mp 30X optical zoom Dahua Speed dome Camera Dahua Auto Tracking PTZ ip Camera(SD65230HNI)
Features:dahua ip camera ip camera dahua dahua ip ip dahua camera
>Powerful 20x/30x optical zoom

Specification:
| Model | DH-SD65220-HNI | DH-SD65230-HNI | DH-SD65S220-HNI | |
| Image Sensor | 1/2.8” Exmor CMOS | |||
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |||
| Min. Illumination | Color: 0.05LuxF1.6,B/W: 0.005LuxF1.6 | Color: 0.5LuxF1.6; B/W: 0.095LuxF1.6 | ||
| Camera Features | ||||
| Day/Night | Auto(ICR) / Color / B/W | |||
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | BLC / HLC / WDR | ||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |||
| Gain Control | Auto / Manual | |||
| Noise Reduction | Ultra DNR (2D/3D) | |||
| Digital Zoom | 16x | 12x | ||
| Defog | On / Off | N/A | ||
| Lens | ||||
| Focal Length | 4.7mm ~ 94.0mm (20x Optical zoom) | 4.3mm~129mm (30x Optical zoom) | 4.7mm~94.0mm(20x Optical zoom) | |
| Max Aperture | F1.6 ~ F3.5 | F1.6 ~ F4.7 | F1.6 ~ F3.5 | |
| Focus Control | Auto / Manual | |||
| Angle of View | H: 55.4° ~ 2.80° | H: 65.1°~ 2.34° | H: 55.4° ~ 2.90° | |
| Close Focus Distance | 10mm ~ 1000mm | 10mm ~ 1200mm | 10mm~ 800mm | |
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |||
| Preset Speed | Pan: 400°/s; Tilt: 300°/s | |||
| Preset | 80(DH-SD), 255(Pelco-P/D) | |||
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |||
| Speed Setup | Human-oriented focal length/ speed adaptation | |||
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |||
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |||
| Time Task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time | |||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |||
| Video | ||||
| Compression | H.264 / MJPEG | |||
| Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |||
| Frame Rate | Main Stream | 1080P (1 ~ 25/30fps) / 720P(1~50/60fps) | ||
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |||
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |||
| Audio | ||||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | |||
| Interface | 1/1 channel In/Out | |||
| Intelligent Function | ||||
| Auto Tracking | Single-scene, multiple-scene, panorama-scene | |||
| IVS | Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc. | |||
| Tracking Trigger Mode | Manual / Auto (alarm triggered) | |||
| Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |||
| ONVIF | ONVIF Profile S | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Auxiliary Interface | ||||
| Memory Slot | Micro SD, Max 64GB | |||
| Alarm | 7/2 channel In/Out | |||
| Power Supply | AC 24V/3A (±10%) | |||
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |||

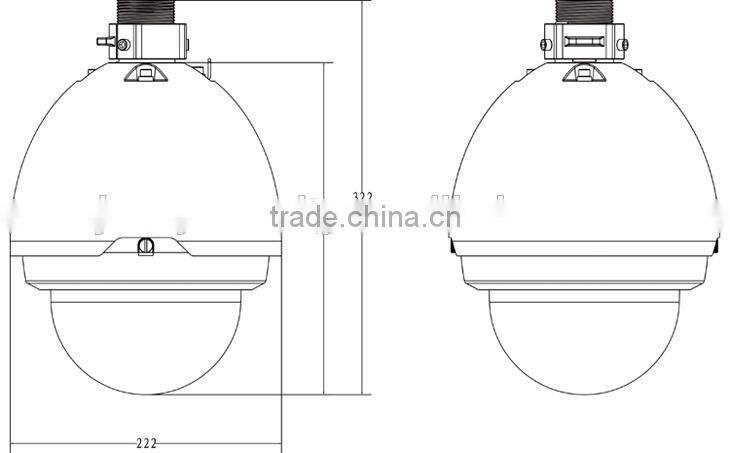

| Dimensions | Φ222(mm) x 322(mm) | |||
| Weight | 5.0kg | |||
