Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua DH-SD6C230T-HN | |
| Model Number | Dahua DH-SD6C230T-HN | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

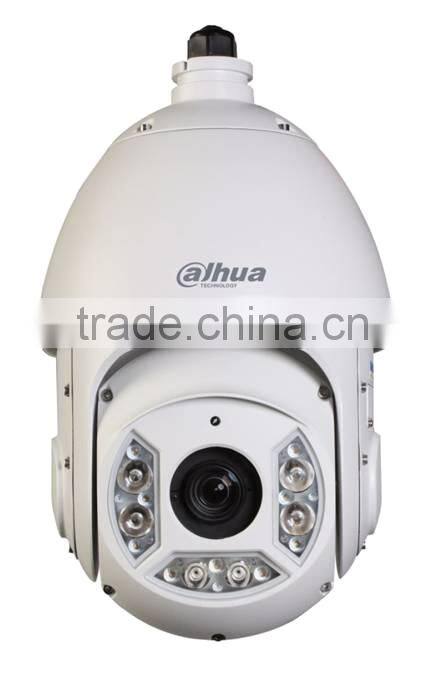

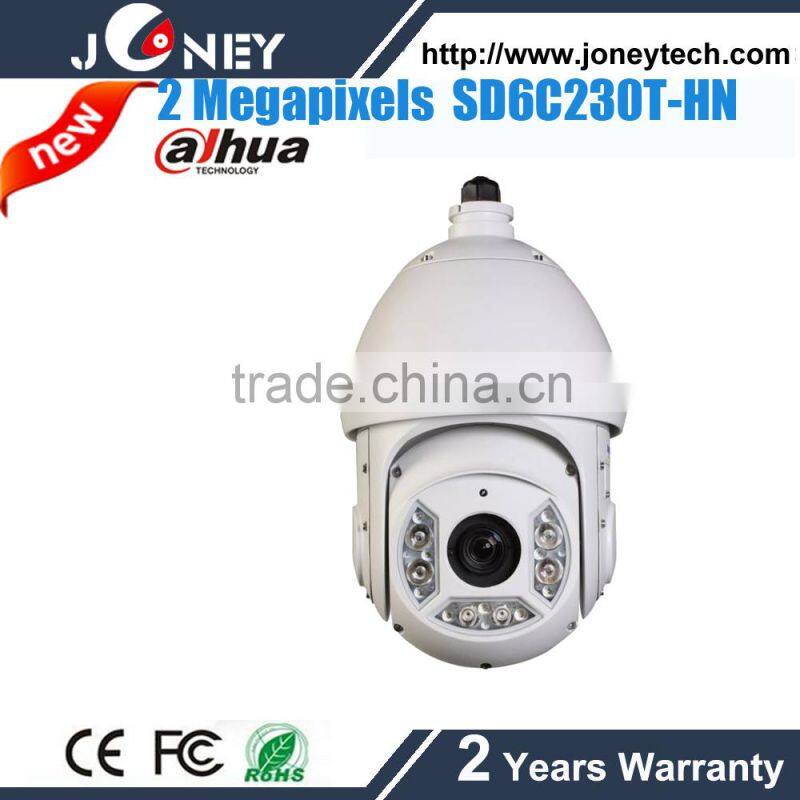

DH-SD6C230T-HN 30x optical zoom Face detection,Tripwire, Dahua PTZ Camera
2Mp Full HD 30x Optical Zoom PTZ Dome Camera
SD6C230T-HN
Features :
30x optical zoom
Support Triple-streams encoding
Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Max 240°/s pan speed, 360° endless pan rotation
Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 2/1 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
Micro SD memory, IP66
IR Distance up to 100m
2Mp Full HD 30x Optical Zoom PTZ Dome Camera
SD6C230T-HN
Technical Specifications:
| Model | DH-SD6C230T-HN | |
| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux F1.6; B/W: 0.005Lux F1.6 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.5mm~135mm (30x Optical zoom) | |
| Max Aperture | F1.6 ~ F4.4 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 67.8° ~ 2.77° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| IR Distance | 100m (2 near IR LED+ 4 far IR LED) | |
| Video | ||
| Compression | H.264H/H.264B/H.264/ MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC 24V/3A | |
| Power Consumption | 10.5W, 26W (IR on, Heater on) | |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Dimensions | Φ204.7(mm) x 359.9(mm) | |
| Weight | 5kg | |
2Mp Full HD 30x Optical Zoom PTZ Dome Camera
SD6C230T-HN

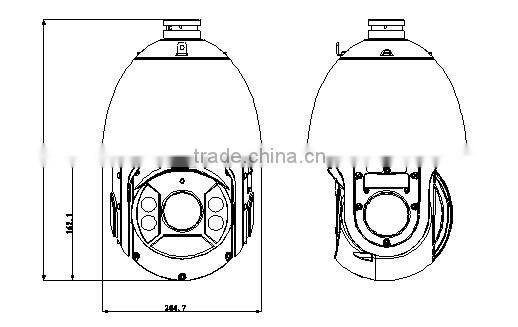

Dimensions (mm)
Accessories
Accessories (Optional)
iDMSS(IPad/IPhone) Mobile Client Software
IPhone
IPad
gDMSS(Android) Mobile Client Software
