Function | ||
1. High-performance CPU, support HDMI, VGA video output | ||
System | ||
Chipset |
Hisilion 3520A |
|
Operation System |
Embedded LINUX |
|
Bandwidth |
64Mbps |
|
Pentaplex |
Live play, recording, playback, backup & remote access |
|
Control Mode |
Front panel button, USB mouse, IR remote control, Network, Wireless mouse |
|
Video | ||
IP Camera Input |
4CH/8CH/ 16CH 720P@30fps(4Mbps); 4CH/8CH/16CH 1080P@30fps(8Mbps) |
|
Protocol |
ONVIF2.0 compliant |
|
Output |
1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600 |
|
1CH VGA@1280×1024/1024×768/800×600 | ||
Audio | ||
Input |
4CH/8CH /16CH RCA |
|
Output |
1CH RCA (Line out, 2Vpp, 300ohms) |
|
POE Ports 4channel with 4POE Ports,8/16 Channel NVR with 8POE Ports | ||
Recording | ||
Video compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
|
Audio compression |
G.711 |
|
Image Encoding |
Self-adaptive with local bandwidth, variable streaming & fixed streaming |
|
Dual Stream |
Support, main stream $ sub stream |
|
Resolution(NVR) |
5MP/3MP/2MP/1.3MP/1P/VGA/D1 |
|
Recording Mode |
Manual, Auto, Motion detect, scheduled |
|
Time bar |
Support |
|
Video detect | ||
Trigger Events |
Recording, PTZ, Tour, Email |
|
Motion Detect |
Support with variable sensitivity level |
|
Snapshot |
JPEG capture |
|
Playback & backup | ||
Max Playback |
4CH/8CH/16CH |
|
Backup Mode |
USB, HDD, Network Backup, Mobile HDD |
|
Networking | ||
Ethernet |
1 RJ-45 Port (10M/100M) |
|
Protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP, FTP, UPnP |
|
Remote Operation |
Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information |
|
Smart Phone |
iPhone, Android, Symbian, Blackberry, Windows Mobile |
|
HDD | ||
Capacity |
Support 2x SATA2.0 HDD each 4TB max. |
|
HDD Management |
Auto Hibernation, HDD faulty alarm & RAID |
|
Auxiliary Interface | ||
USB |
2x USB 2.0 |
|
RS485 |
Standard 485 for PTZ control |
|
Environment | ||
Power Supply |
DC 12V 4A |
|
DC +48V 2A(POE Mode) | ||
Working Environment |
-10°C~+55°C / 10%-90%RH |
|
Dimension |
350Wx245Dx60H(mm) |
|
Weight |
3Kg (without HDD) |
|
Installation |
Desk type |
|
Key Features
• Dual H.264 Streaming, Variable Bit Rate, self-adaptive with brandwidth
• Onvif Compliant, 4CH 8CH 16CH 1MP 720P/4CH 8CH 16CH 2MP 1080P input
• Support web interface & CMS, iphone/Android mobile view
• Support 1x SATA HDD each 2TB max.
• Support UPNP, free DDNS, Digital zoom
• Support 3G/WIFI USB, 3G Dongle
• Built-in 4CH or 8ch POE (Power over Ethernet (IEEE 802.3af) ports, Power DC48V/2A input
• Support P2P(Plug & Play), access with device ID, No DDNS needed

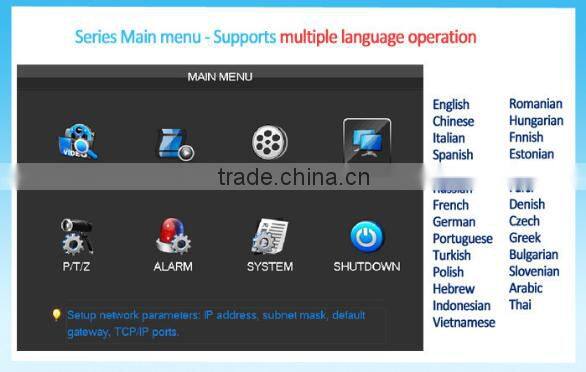

NVR support multiple language

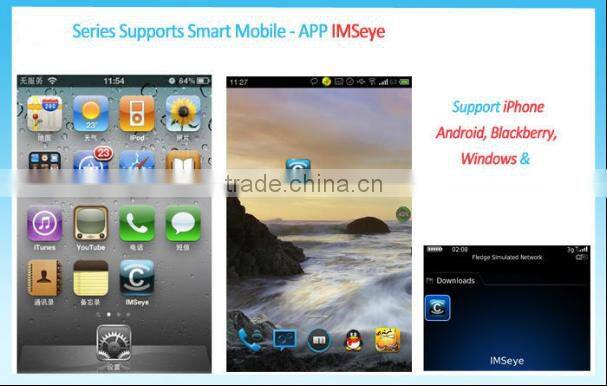

NVR support smart mobile-APP IMSEYE

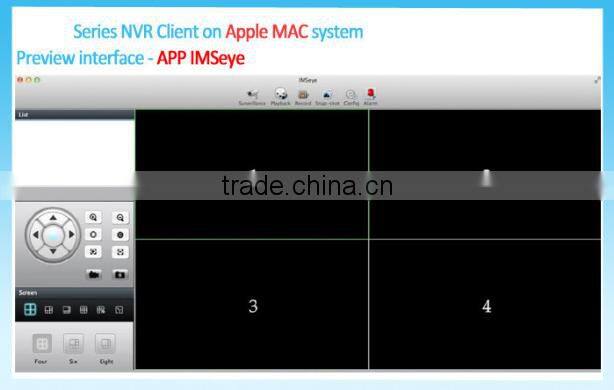

NVR web client support Apple Mac system

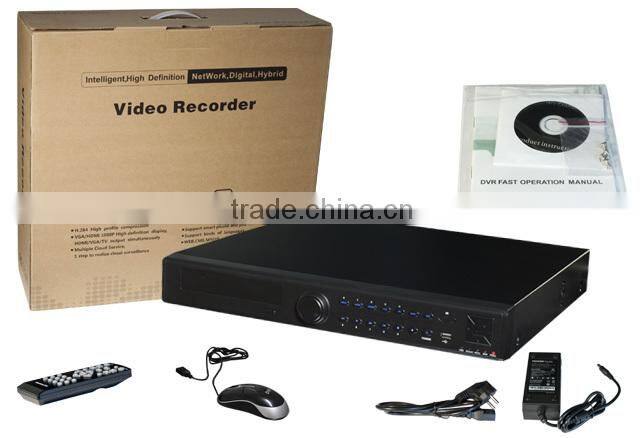

Packaging

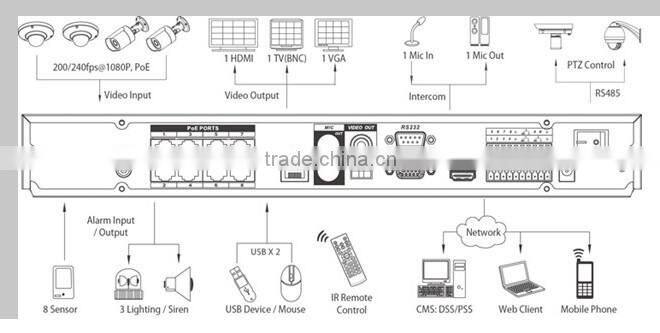

Application Demo
