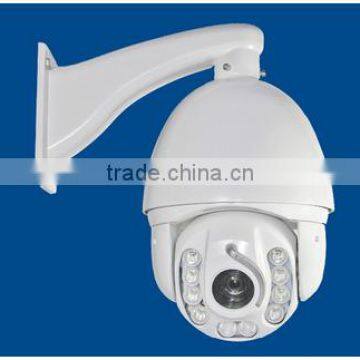

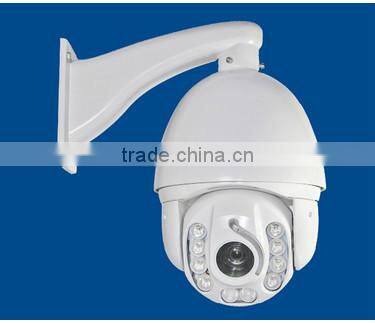

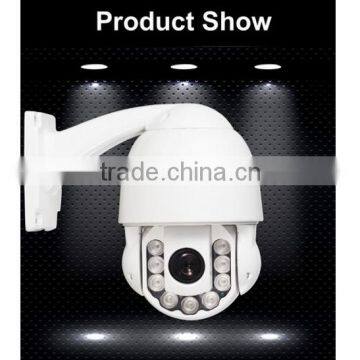

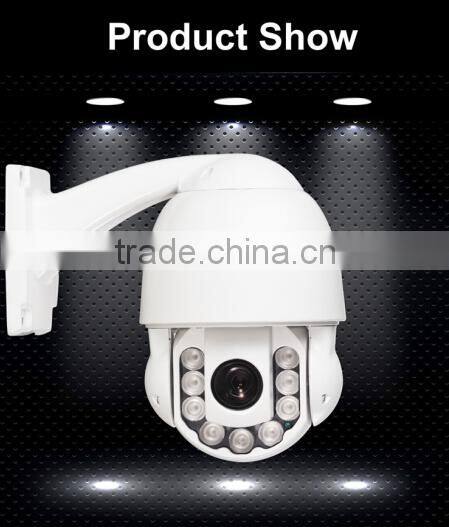

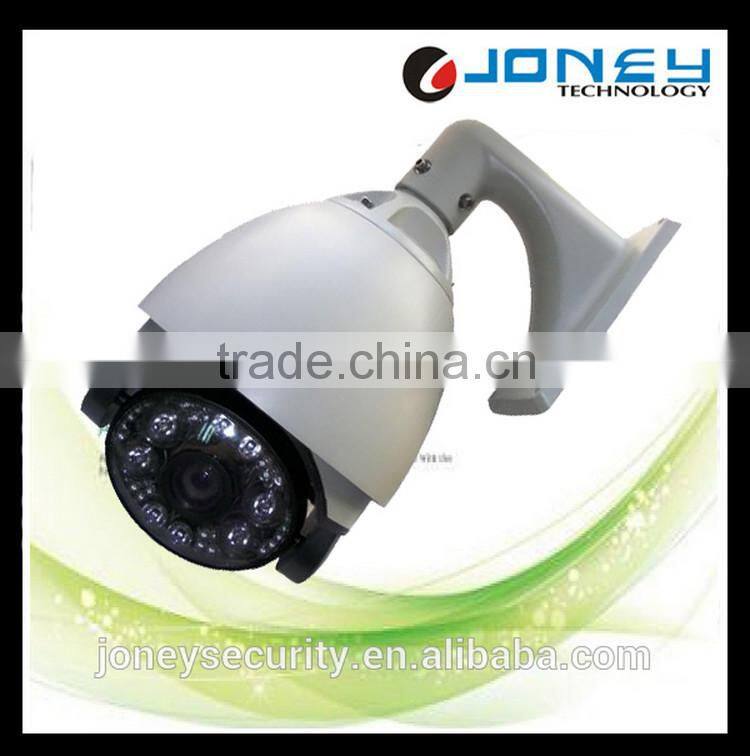

2 Mega pixels IP Speed dome ptz camera with IR Cut filter
IP Speed ptz dome camera
1)4 inch Mini Megapixels 10x optical zoom ptz ip camera
2)Encoding chip:TI DM368
3)Image sensor:1/3" Progressive Scan CMOS
4)1920*1080 (1080P),focus F=5.5mm~55mm 10X optical zoom
5)H.264 High Profile/M-JPEG Coding,rate 96k~6M bps, max 30fps 1080P, Frame rate adjustable, supports three -stream
6)Level speed 240 degrees / sec, vertical speed 200 degrees / sec, 256 preset positions, support cruise, limit the level of support scanning
7)Can support Onvif communication protocol and GB/T28181 network platform provides configuration client development kit SDK
8)audio and SD card function optional
9)2KG 30*17*30(cm), Wall mount or Ceiling mount bracket.
Model |
IPC-PTZ9002R-10X IP Speed ptz dome camera |
|
IP Speed dome ptz camera | ||
Image Sensor |
1/3" Progressive Scan CMOS |
|
Effective Pixels |
1920*1080 PTZ IP camera |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
|
Min. Illumination |
Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on) |
|
S/N Ratio |
>50dB |
|
Camera Features | ||
Max. IR LEDs Length |
IR Range 100 m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC |
|
White Balance |
Auto |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D |
|
Privacy Masking |
N/A |
|
Lens | ||
Focal Length |
10X Zoom 5.5-55mm optional |
|
Max Aperture |
F1.6 |
|
Angle of View |
81.1°-26.2° |
|
Mount Type |
MTV mount (Interchangeable Lens) |
|
Video | ||
Compression |
H.264 / MJPEG |
|
Frame Rate |
Main Stream |
1920*1080 30fps |
Sub Stream |
VGA 640*360 30FPS |
|
Bit Rate |
128Kbps~8Mbps,Supports CBR/VBR |
|
Audio | ||
Compression |
G.711 |
|
Interface |
1/1 channel In/Out |
|
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP |
|
ONVIF |
ONVIF Ver. 2.0 |
|
Max. User Access |
10 users |
|
Smart Phone |
iPhone, iPad, Android |
|
General | ||
Power Supply |
DC12V |
|
Power Consumption |
<6W |
|
Working Environment |
-10°C~+60°C, 10%~90% |
|
Ingress Protection |
IP66 |
|
Dimension |
130 mm (H) * Φ150 mm |
|
Weight |
1.0 KG |
|
Package Dimension |
170*170*185 mm |
|
Package Weight |
1.1 KG |
|
Approvals |
CE FCC RoHS |
|
