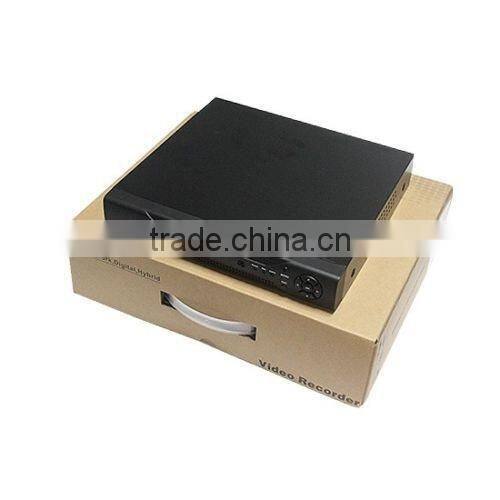

Analog/IP/HDCVI Camera 1080p HD CVI DVR 4channel HD CVI
US$ 50 - 60
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
joney
Model Number:
CVR5104H
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P2P 8ch HD CVI DVR 1080P Full Realtime H 264 Standalone DVRUS$ 190 - 200MOQ: 1 Unit -
Tribrid 3 in 1HD CVI DVR 1080P 4CH H 264 DVRUS$ 60 - 70MOQ: 1 Unit
-
P2P Standalone HD CVI DVR 1080P 8CH H 264 DVRUS$ 80 - 90MOQ: 1 Unit
-
16ch Channel HD CVI DVR 1080P DVR H264 CCTV Dvr With Cms Free SoftwareUS$ 180 - 190MOQ: 1 Unit
-
RS485 USB 32 Channel CVI DVR 32CH for 720P hd Cvi CameraUS$ 295 - 300MOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
joney
Model Number
CVR5104H
Analog/IP/HDCVI Camera 1080p HD CVI DVR 4channel HD CVI
Product Description
| Model | HCVR5104h | |
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 4 channel, BNC | |
| Standard | HDCVI | 1080P/720P HDCVI Camera |
| IP | 1080P/720P/D1/CIF IP Camera | |
| Audio | ||
| Input | 1 channel, RCA | |
| Output | 1 channel, RCA | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600 | |
| Display Split | 1/4 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264/G.711 | |
| Resolution | 1080P(1920x1080)/720P(1280x720)/960H(960x576/960x480)/D1/4CIF(704x576/704x480) / CIF(352x288/352x240) / QCIF(176x144/176x120) | |
| Record Rate | Main Stream | 1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
| Extra Stream | CIF/QCIF(1~25/30fps), D1(1~12/15fps) | |
| Bit Rate | 48~4096Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank | |
| Playback & Backup | ||
| Sync Playback | 1/4 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/Internal SATA burner/Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 4TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports(1 Rear), USB2.0 | |
| RS485 | 1 port, For PTZ Control | |
| General | ||
| Power Supply | DC12V/2A | |
| Power Consumption | 10W(without HDD) | |
| Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | |
| Dimension(WxDxH) | Mini 1U, 325mmx255mmx55mm | |
| Weight | 3.25KG(without HDD) | |

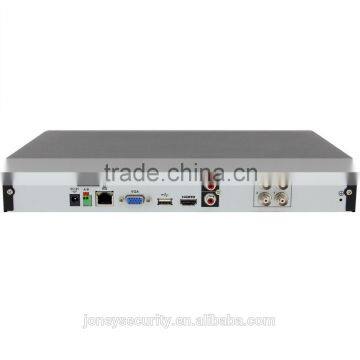

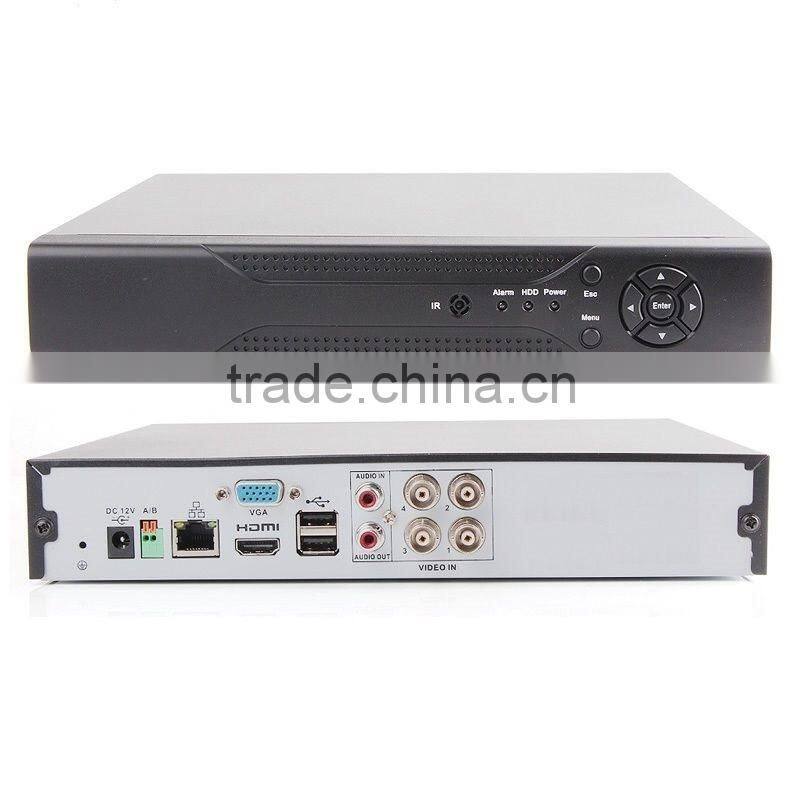

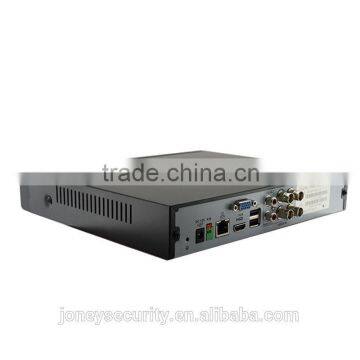

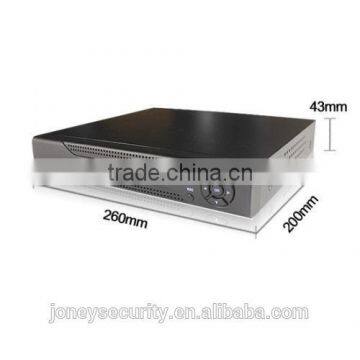

Detailed Images
Certifications
Company Information
Send Inquiry to This Supplier
Mrs. Sherry Wang
Sales Manager
Shenzhen Joney Security Technology Co., Ltd.
Shenzhen, Guangdong, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company, Agent
Year Established
2012
Factory Size
Below 1,000 square meters
Total Employees
301 - 500 People
