Specifications
1.Holding Force:280kg2.Suitable for:Wooden Door, Glass Door, Metal Door, Fire Proof Door
3.Feature:Fail safe
4.with LED

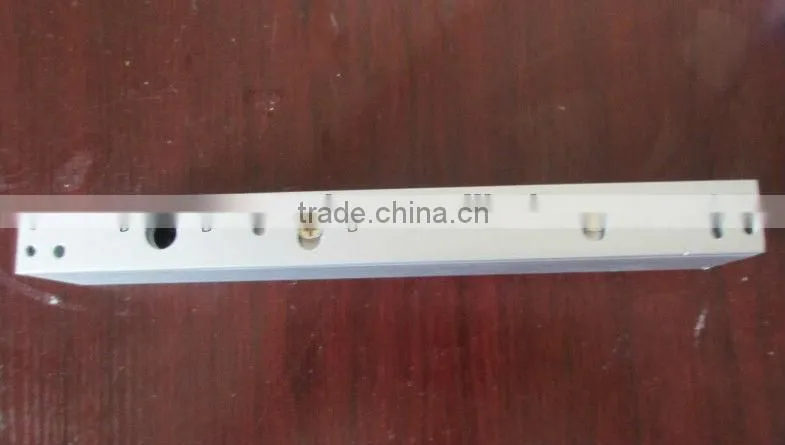

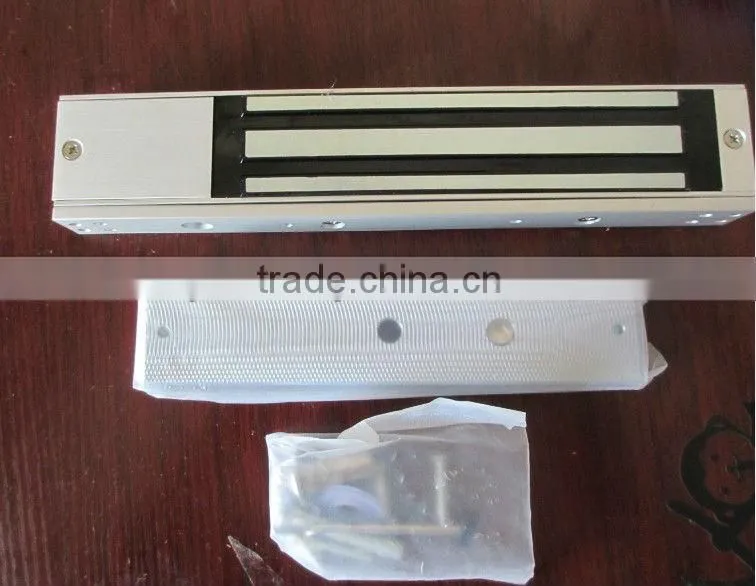

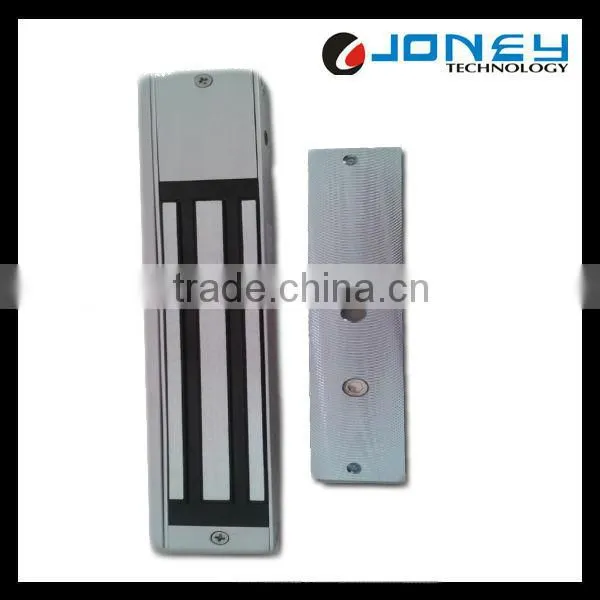

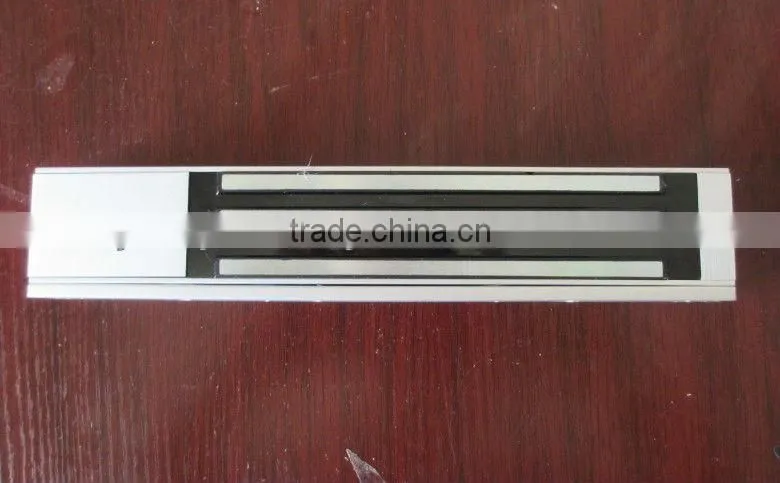

280kg/600Lbs Door Magnetic Lock for acccess control
Magnetic Lock (also named as Electromagnetic Lock, Electric Magnetic Lock) is modern advanced magnetic lock which has wide application and strong suction, can output signals to monitor door condition. It is widely applied in Access Control System, such as Intercom Electric Control Door, Escape Door, Fireproof Door, Glass Door, Wooden Door, etc. Electromagnetic Lock connects with intercom system achieve the best effect. Specially for Exit-door or fire-resistant door. Main material of our magnetic lock is imported. Product quality is stable and reliable.
Collinear Load Test 280kg,600pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing
CE Certificate by European Union,MA Certificate by China Public Security Office
| Lock Size | 250Lx42Wx25H(mm) |
| Armature plate | 180Lx38Wx11H(mm) |
| Holding Force | 280kg (600Lbs) |
| Voltage | DC12V or DC24V (adjustable) |
| Current Draw | 12V/500mA 24V/250mA |
| Signal Output | Dry Contact |
| Max Rating of Contact Current | 3A |
| Time | 0/3/6/9sec |
| Surface Temp. | ≤+20°C |
| Operating Temp. | -10~+55°C(14-131F) |
| Suitable Humidity | 0~90%(non-comdensing) |
| Finishes for Shell | Anodized alninum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 12pcs./carton |
| Suitable For | Wooden door,Glass door,Metal door,Fireproof door |
