high speed wide or large format laser printer manufacturer in China
History of Nuocai
In 2005, Nuocai was registed in Guangzhou, Tianhe Hightech Industry Zone. Producing digital printing machine .
In 2006, digital printing machine rapid improvement and development, enjoy reliable reputation in China .
In 2007, digital printing machine has CE approved, expand international market share .
In 2008, Nuocai? trademark registration successfully .
In 2009, producing UV flatbed printer and successfully apply for a patent of UV LED .
In 2010, UV flatbed printer has CE approved , take up 40% market share ; a professional English-speaking engineer team has found .
In 2011, double print head UV flatbed printer come out to market with positive market response .
In 2012, digital printing machine further development to meet market demand .
In 2013, large format UV flatbed printer for industrial use come out to market .

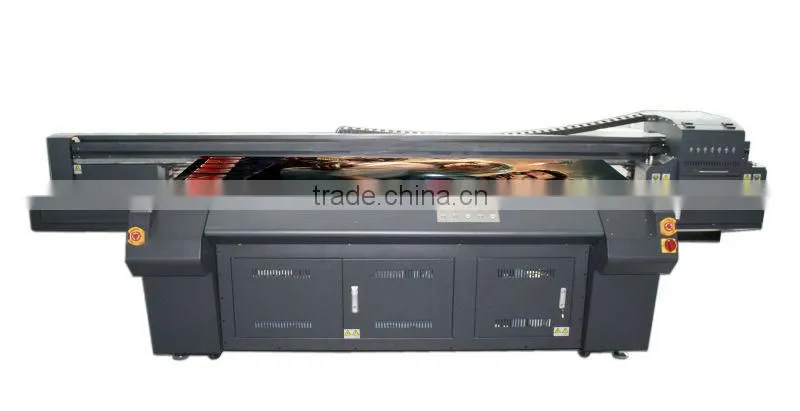

Picture of Machine
Specification
Mode |
NC-SPT2513 |
|
Printhead |
SPT1020 (35PL) |
|
Number of printhead |
4-8piece(CMYK LC LM+W) |
|
Printing speed |
2pass |
26sqm/h |
4pass |
18sqm/h |
|
6pass |
10sqm/h |
|
Maximum printing width |
2440*1220mm(96″X 48″) (L*W) |
|
Printer Dimension |
3940*1940*1320mm |
|
Packing Dimension |
4200*2200*1600mm(14.8CBM) |
|
Gross Weight |
2000kg |
|
Power |
AC220 50HZ/60HZ , 4kw |
|
Print height |
80mm |
|
Rip Software |
Photoprint |
|
Drying system |
Double Large LED lamp |
|
Applicable materials |
Acrylic, metal, plastic, ceramic tile, wood, stone, glass, acrylic, PVC, crystal, textile, leather, etc |
|
Features |
1. Industrial SPT print head (High speed)
|
|
|
2. Negative pressure ink supply system without any manual operation
| ||
|
3.Intelligent crashproof to protect printhead
| ||
|
4.Automatic height measuring system
| ||
|
5.Adopt FOREIGN components and parts to improve stability
| ||
6. Special qualified ink | ||
Advantages of printhead
1. Original IMPORT printhead with steel plate, which ensure long life.
2. 71.8mm printing width.2. 4/6 color plus 720dpi, high color matching rate and high resolution.
3. The voltage of the printhead, automatically adjustable to the temperature, prevents blockage
caused by the change of temperature.
4. Edge feather function can blur the pass line and feather the pass edge.
5. Special qualified ink
6. Good cost performance
Samples printed
wood board
Glass
The advantage of our digital printing machine
1) Widely used on print all kinds of materials,such as leather, EVA, PVC textiles, fabric, glass, metal, plastic, crystal products, wooden products, art paper etc
2)Without plate-making, the color and pattern are unlimited.
3) Various print size:max:2150mm*2500mm,min:430mm*900mm; max print materials thickness--15cm.
4) Amazing printing result: max print resolution-2880*1440dpi; high printing speed and best color stability and gloss;
5) Easy to operate and maintain;
6) Lowest printing cost: $1.5/sqm on average;
7)Good after service,1 year warranty and life long maintenance, and technical support from our engineers.
Technical support (after sale service)
1. 3-7 days one by one technical training:
During training, our technician will explain and demonstrate you all details about the machine, such as print principle, ink filling notice, operation process, daily maintenance, different printing solution and so on. After that you will be requested to operate the machine on site until we make sure that you master all details clearly.
2. English manual & Operation CD :
Including all training content, troubleshooting and so on.
3. Warranty :
1 year warranty, lifetime maintenance. New spare parts will be sent for replacement if some of them broken within the first year.
4.On-line support & Remote assistance
5.On-site maintenance on required
About this high speed wide or large format laser printer manufacturer in China ,can contact
skype:BellaZhang08
wechat:18003866362
whatsapp:+86 13268001963
QQ:2355516392
1.CE qualified large format laser printer
2.Factory experience and price
3.All purpose printing
