Bedroom wall decorating print/digital printing machine for ceramic tiles/window sticker printing machine

Specifications

1.Outdoor UV Flatbed Printer
2.Double Epson printhead
3.vivid and lasting color
4.CE certification

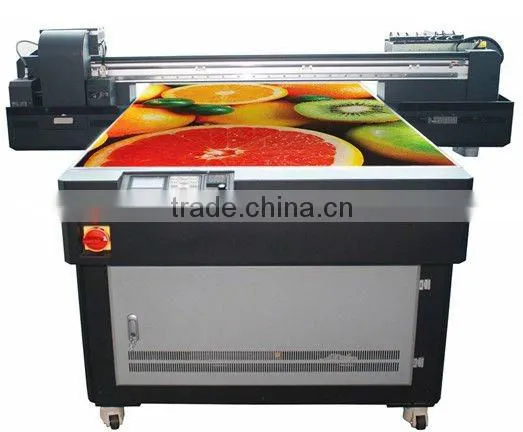

    Outdoor UV Flatbed Printer for door,window,metal

 1.Outdoor UV Flatbed Printer
 2.Double Epson printhead
 3.vivid and lasting color
 4 .CE certification





Features:

1.Instant printing without pretreatment or after treatment

2.Printing white & color ink smultanoeously with excellent effect on dark materials.

3.High printing speed with double Epson heads,meeting industrial production demands

4.Automatic cleaning & moisturizing system,improving ink fluency

5.Slient straight mute track with wonderful stablity and accuracy





Specifictions:





Product Name	UV Flatbed Printer
					Model No.	NC-UV 1015
EXW Unit Price
Payment Term	TT 40% Deposit , the balance before shipping
Specifiction &Parameters
	Print Head	EPSON DX7 (double printhead)
	Print platform	Vaccum suction platfrom
	Y-axis movement	Servo motor precise positioning
	Print Direction	Uni-direction or Bi-Direction
	Ink use	uv ink
	Ink Color	Y M C K + W
	Ink consumption	100-120 m2/L
	Resolution	Max. 2880x1440dpi
	Print Thickness	Max. 12cm
	Print Speed	6~12sqm/h
	Printer weight	400kg
	Printer Dimension	L200 * W195* H120 cm
	Print Format	Max. 1000x1500mm
	RIP Software	Photoprinter
	Power	300W (not including outter air extractor)
	Electricity	AC220/110±10, 50HZ-60HZ
	Interface	USB2.0
	Operation system	Windows XP/98/2000/Win7
	Use enviroment	15-35°C, HR20-80%
	Services	1 year warranty, lifetime service
Packing	Fumigation-Free Wooden Case
Print materials	metal,PVC,acrylic,ABS,glass,ceramics,wood, leather,etc









Samples of print output:











Packing:





Technical support (after-sale services)



1. 3-7 days one by one technical training:



During training, our technician will explain and demonstrate you all details about the machine, such as print principle, ink filling notice, operation process, daily maintenance, different printing solution and so on. After that you will be requested to operate the machine on site until we make sure that you master all details clearly.



2. English manual & Operation CD :



Including all training content, troubleshooting and so on.



3. Warranty :1 year warranty, lifetime maintenance. New spare parts will be sent for replacement if some of them broken within the first year.



4.On-line support & Remote assistance



5.On-site maintenance on required



About us:





Enjoy color,enjoy life.NUOCAi is your best choice to show wonderful life!

Believe Nuocai,believe the ture color!
