Home > Consumer Electronics > Warmer Appliance > Heater Fan > Heating Unts for Heating Spaces

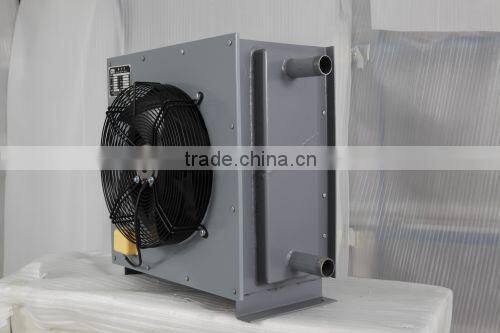

Heating Unts for Heating Spaces

Name: Heating Unts for Heating Spaces
Brand: JINCHEN
SKU: 128303245
Availability: InStock

Heating Unts for Heating Spaces thumbnail-1

Negotiable MOQ: 60 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Other, industrial heater

Power Source:

Hot Water / Steam

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Shenyang Jinchen Weiye Cooling & Heating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, industrial heater

Power Source Hot Water / Steam

Place of Origin Liaoning, China

Brand Name JINCHEN

Model Number 5Q

Dimension(L*W*H) 570*750*600 mm

Voltage 380v

Specifications

industrial Fan Heater
Adjustable thermostat control
Safety overheat cut out

Q series industrial heater

Q series industrial heater is a hot air heating system with steam as medium which is widely applicable to factory workshop and large public buildings.

The product can also be used as a drying plant as the air is forced to circulate through the rotation of fan to make indoor air heated quickly.

Steel plate housing for the product with electrostatic coating has high corrosion resistance and aesthetic profile. Customers shall purchase and install the switch controller for the equipment by themselves as it is excluded from the product.

Radiator applied to SRL style radiator and SRL style radiator.

Specification Model	Wind Volume m3/h	Electric Engine Power W (380V)	Wind Speed m/s	Air Inlet Temperature 15°C								Weight kg	Overall Dimension
				Vapor Pressure 0.1MPa		Vapor Pressure 0.2MPa		Vapor Pressure 0.3MPa		Vapor Pressure 0.4MPa			A mm	B mm	C mm	Pipe Diameter ZG
				Heat Release kw	Air Outlet Temperature °C	Heat Release kw	Air Outlet Temperature °C	Heat Release kw	Air Outlet Temperature °C	Heat Release kw	Air Outlet Temperature °C		A mm	B mm	C mm	Pipe Diameter ZG
4Q	2800	200	3	24	54	27	60	29	63	31	66	68	500	570	570	1¼″
5Q	5000	390	3	40	54	44	60	48	63	51	67	109	670	750	600	1¼″
7Q	7500	540	3	62	51	70	56	76	65	88	68	194	835	925	635	1¼″
8Q	9300	1000	3	107	56	128	61	131	65	139	69	262	1000	1100	675	2″
