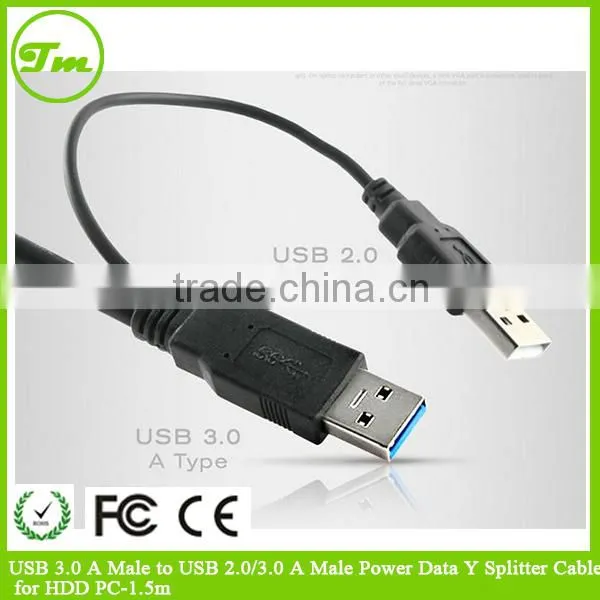

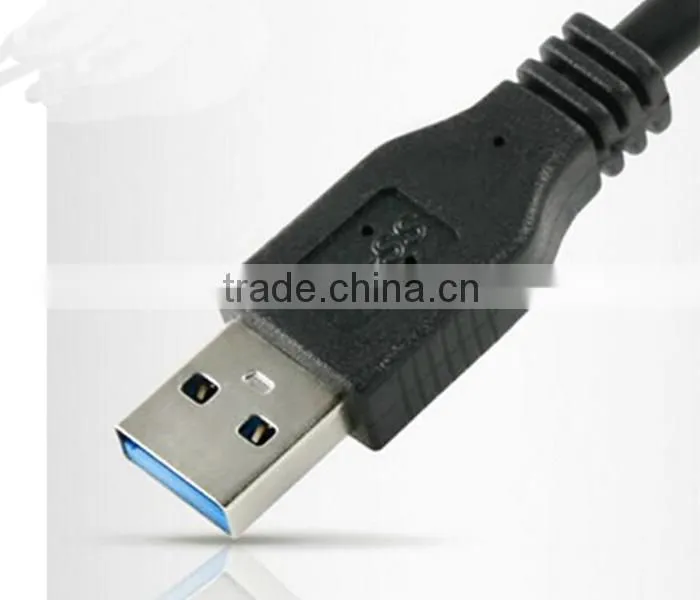

USB 3.0 A Male to USB 2.0/3.0 A Male Power Data Y Splitter Cable for HDD PC-1.5m

USB 3.0 A Male to USB 2.0/3.0 A Male Power Data Y Splitter Cable for HDD PC-1.5m

Product Description

USB 3.0 Data Power A Male to A USB 3.0 Cable for External Hard Drives Product Features
This cable is designed to provide USB data power to a portable hard drive
Provides hi-speed data transfer up to 10 X 480Mbps
Foil and braid shield reduces interference Cable length

Features:
USB 3.0 A to USB 2.0 / 3.0 Y Splitter Cable.
Compatibility: any USB 3.0 portable hard drive that connects to USB 2.0 or USB 3.0 ports.
Suitable for connecting mobile hard disk data transfer.
Up to 5Gbps transfer rate.
2-connector Y-design allows you to power multiple devices from a single USB port.
Use this Y-cable to connect your USB 3.0 devices..

Package : 1 USB 3.0 Y cable(1.5m)

USB 3.0 link cable for PC with USB 3.0 B-type interface with peripherals such as data transfer between devices printers, copiers, HDD, external mobile hard drive, Blu-ray optical drive, hard drive mainstream video players. The USB cable connection type to USB 3.0 A Male to USB 3.0 B-type male. Enhance the transmission speed at least twice, and the highest rate is 10 times USB 2.0 devices, ultra-high speed up to 5Gbps.

Difference for USB 2.0 & USB 3.0:
USB 3.0 cables and connectors are slightly different than those for USB 2.0 but are carefully designed to work with existing USB 2.0 host ports. The cables for USB 3.0 are thicker because they contain more power and data lines, and the cable ends have an additional piece that makes it impossible to connect a USB 2.0 device using a USB 3.0 cable. This feature protects both the USB 3.0 device and makes it ultra-easy to recognize a USB 3.0 cable.

Up to 10X faster transer rates when compared to USB 2.0
Improved power management and efficiency
Read and write files simultaneously
Compatible with USB 2.0 systems
Note: When connected to a USB 2.0 system, data transfers will occur at USB 2.0 speeds. Your performance may vary based on your system configuration.

Q&A

Q: What kind of cable do I need for my printer?

A: Typically, printers today are connected with a USB A Male to B Male cable

Q: What if I need to extend my current USB cable past the 16 foot distance limit?

A: Because passive USB cables have a distance limitation you would need an active extension cable to help boost the   signal coming from the source.

Q: I'm unsure what USB cable I need, can you help?

A: Please check below resource tab to see the USB connector graph. This should help identify the correct cable.

**Please double check with your original parts for compatibility.

Connector plating

Gold-plated ,Nickel-plated

Contact

Copper Alloy

Shielding

Foil and Braid

Jacket Color

BLUE,BLACK,WHITE or optional

Conductor

Bare copper ,Tinned copper or optional

Over mold

PVC 80Pa ,UL94V-0 Black

Pre mold

PE Low Density

Withdraw Force

10N Min

Insertion Force

35N Max

Contact Resistance

0.01 OHM Max

Insulation Resistance

10M OHM /300V Min

Hi-Pot

DC 300V 10ms

Working Temperature

-25°C~ +85°C

Compatibility

USB 1.0 & USB 2.0
