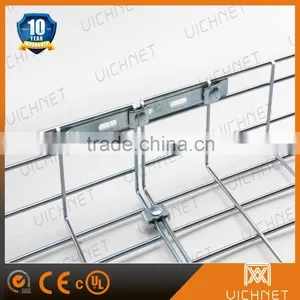

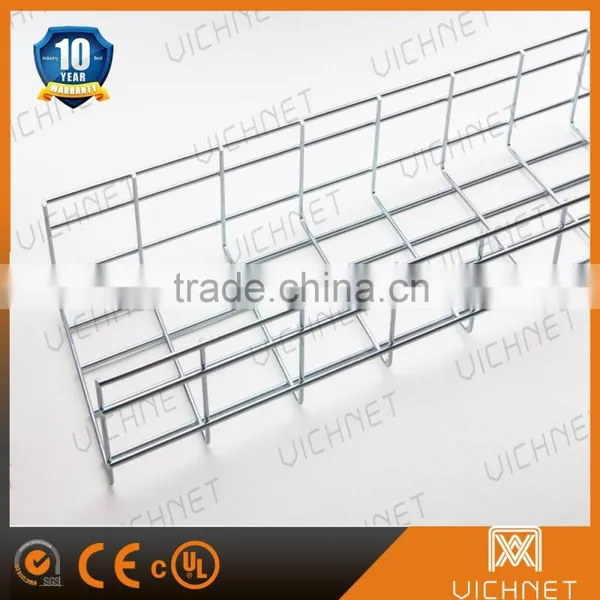

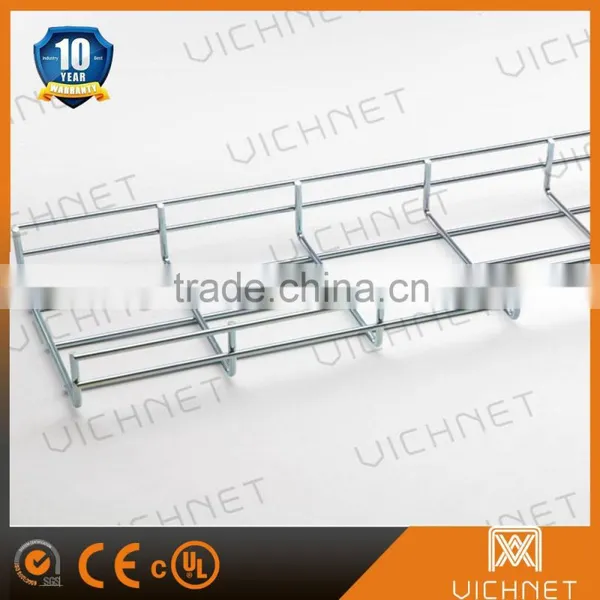

Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated
Dimensions:
CM Height-Width-Length-Diameter-Finishing |
|
Height : 25mm ~ 200mm | |
Width: 50mm ~ 1000mm | |
Length: 300mm ~ 3000mm | |
Diameter: 3.5mm ~ 6.0mm | |
Finishing: EZ |
Material:
Electro Galvanized Wire Mesh Cable Tray Cable Basket (UL, CUL .CE.SGS)
Material |
Surface finishing |
Thickness of coating |
Application environment |
Q235 Steel |
Electro zinc plating |
>=12um |
Indoor |
Q235 Steel |
Hot dip galvanized |
>60um |
Indoor, Outdoor |
Q235 Steel |
Powder coating |
>60um |
Indoor, need colors |
SS304 |
Acid washing |
N/A |
Indoor, Outdoor |
SS316 |
Acid washing |
N/A |
Indoor, Outdoor, high corrosion occasions. |
SS316L |
Acid washing |
N/A |
Indoor, Outdoor, high corrosion occasions. |
Installation Notice For Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated

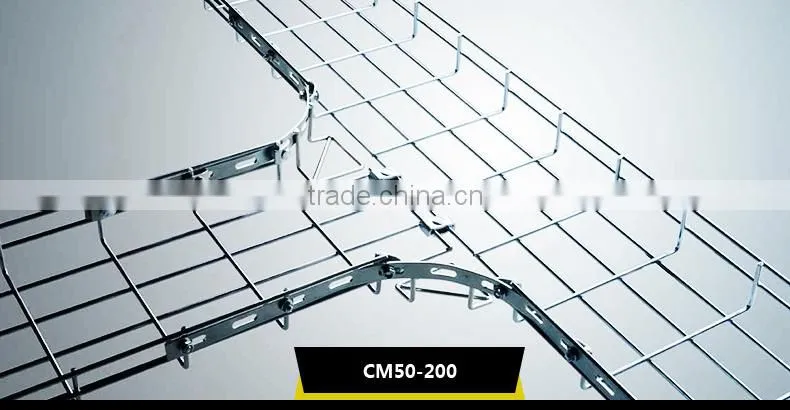

> Bends, Risers, T Junctions, Crosses and Reducers can be made from Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated and accessories straight sections flexibly in project site.

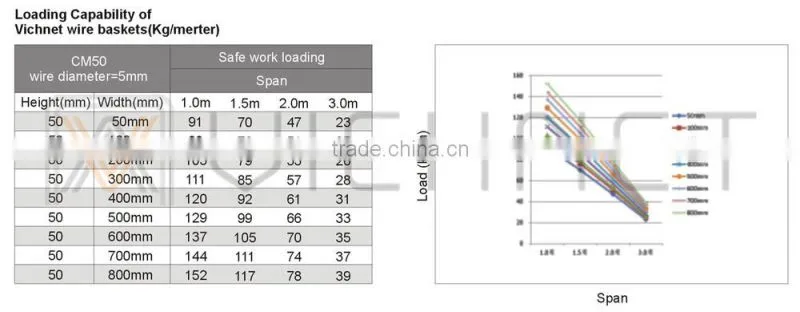

> Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated and accessories later type should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
> Electro Galvanized Wire Mesh Cable Tray Cable Basket and accessories later type can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
> For security, these Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated and accessories are made available with covers.

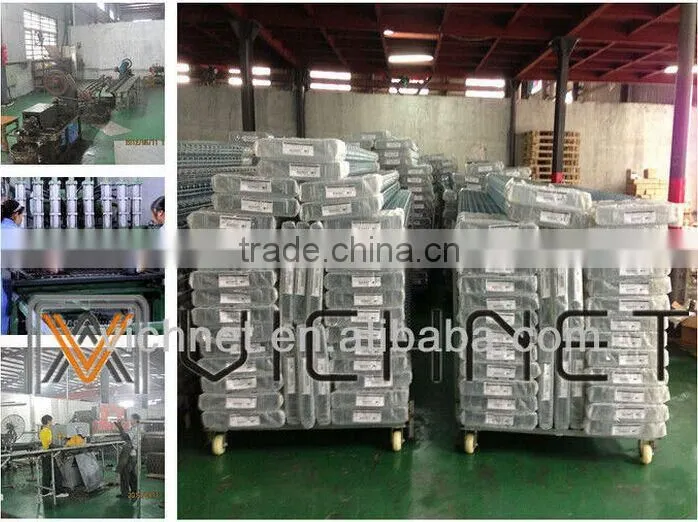

1.Bubble film two ends wrapped for Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated
2.Double layers bubble film wrapped and with four corners card boar wrapped for Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated for LCL
3.Pallets is optional for Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated
4.Carton for accessories of Electro Galvanized Wire Mesh Cable Tray with CU CUL CE Certificated
Vichnet is a Telecommunication products manufacturer specializing in producing wire mesh cable tray and Fiber cable tray.
With a professional team, Vichnet is committed to providing a consistently high level of quality and service to the customers in the world. Now, vichnet is one of China wire mesh cable tray industry standard setters.

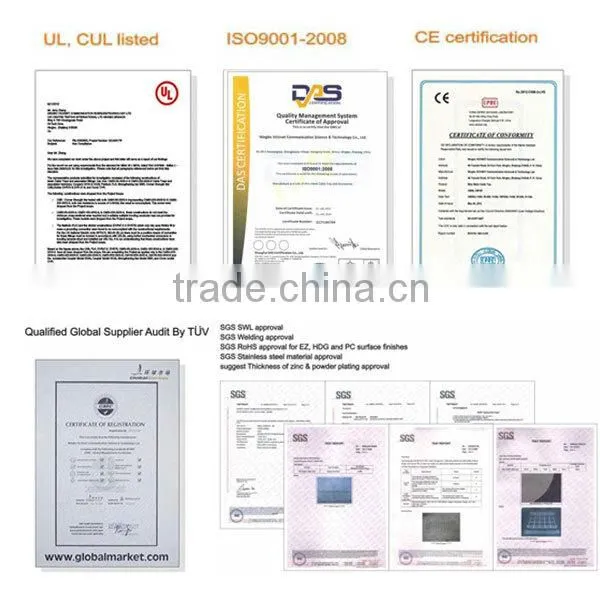

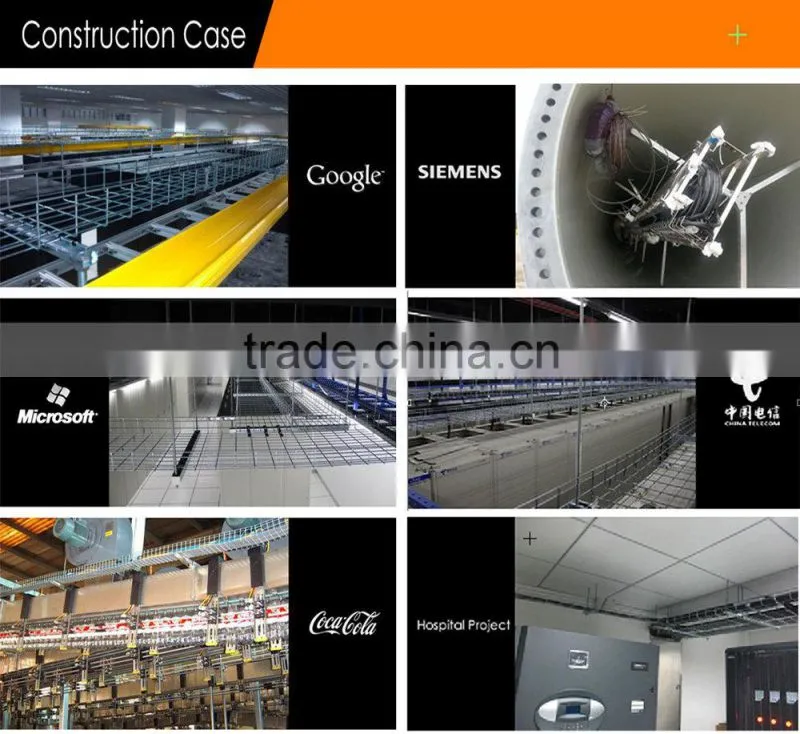

Currently, Vichent cable trays are used in over 100 countries with a variety of certificates approved including UL, CUL, CE, at the same time passed SGS and TUV tests. With GMC and ISO9001 certifications, Vichnet becomes a qualified supplier for even the most rigorous projects like Siemens,Google, Microsoft, Coca Cola, P&G, IBM, Nestle, China Telecom, China Mobile, China Unicom, Hua Wei etc.
Application:
1.data center
2.railway industry
3.chemical industry and pharmacy
4.electrical industry
5.energy production and distribution
6.sky-in solar energy
7.food industry
8.equipment
9.robotics and automation
nologies-such as wind power
