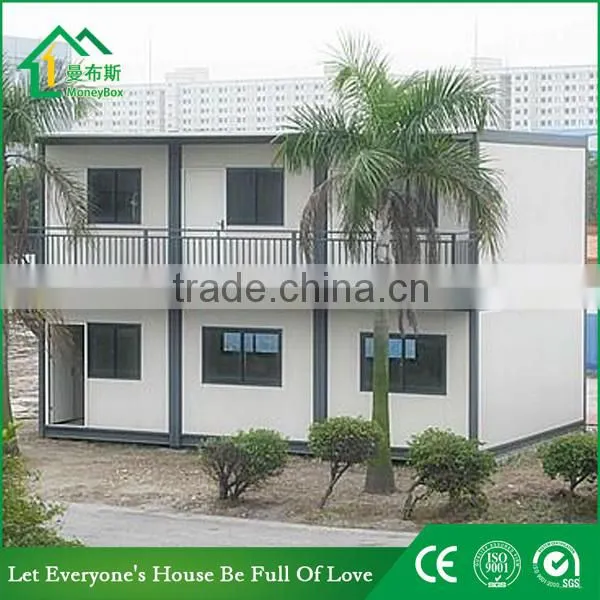

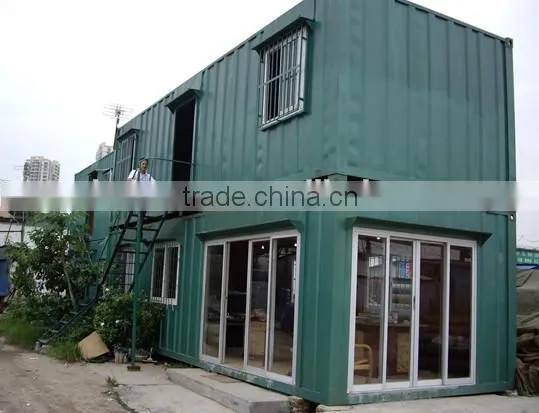

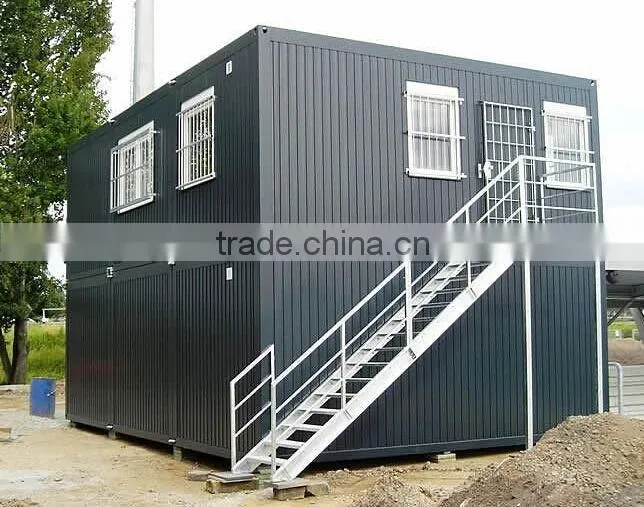

Two Floors Flatpack Container house to be the Office with Decoration
Brand Name:Moneybox
Place of Origin: Guangdong(Mainland)
Item no.: Container house FP1
Material:Sandwich panel ,Light steel ,PVC
Wall and roof panel : EPS,Rock wool,Glass wool sandwich panel ,etc.
Window :PVC,aluminum alloy or customized.
Use:Hotel,House,Kiosk,Booth,Office,Sentry
Box,Guard House,Shop,Toilet,Villa,Warehouse,Carport
Design:Flexible design
Life time : 15-25years
Description

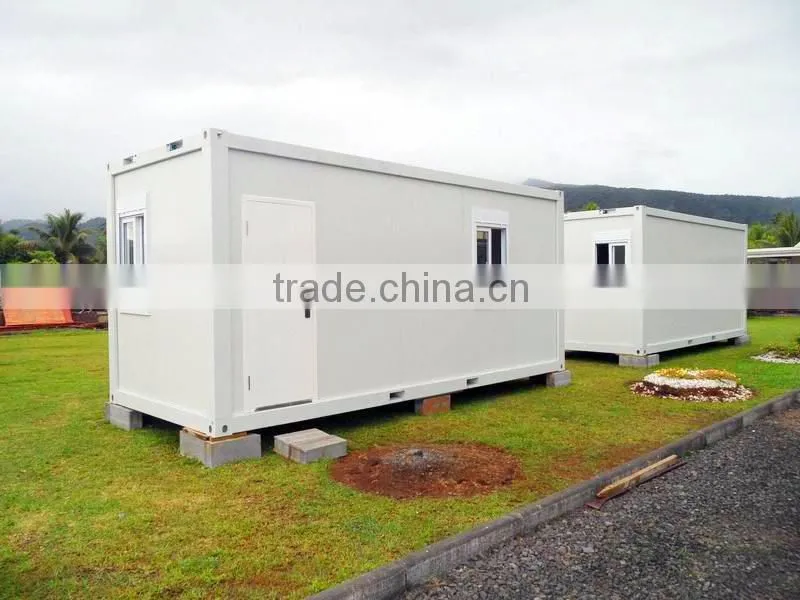

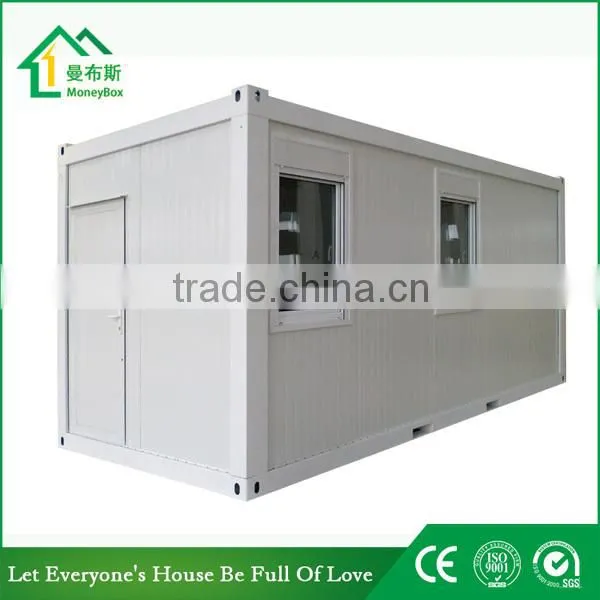

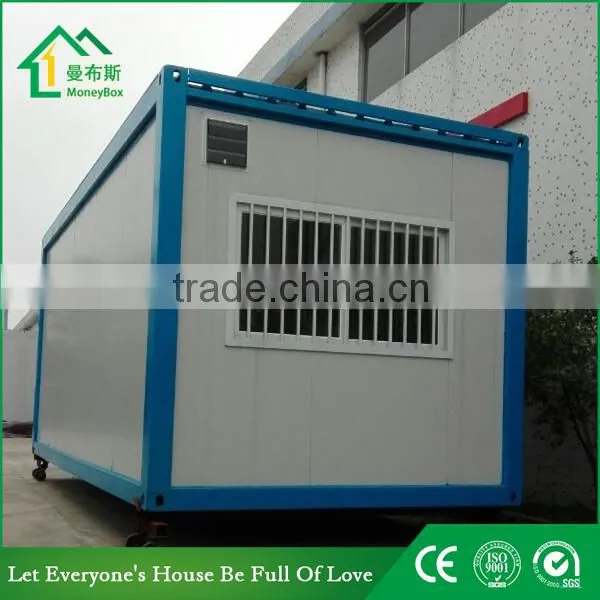

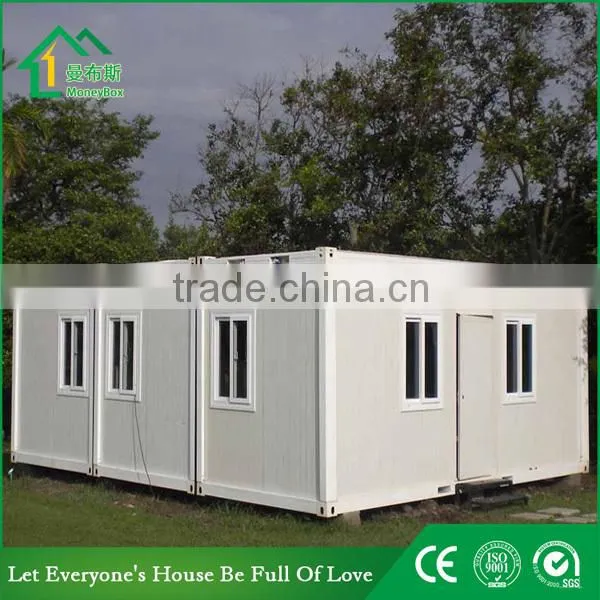

20ft/ 40ft standard flat pack container house is a kind of modular house ,using light steel as main structure, can be used for residential living or commerical accommodation.
Specification
Guangzhou MoneyBox Steel Structure Engineering Co., Ltd. | ||
No |
Description |
Specification |
Standard Dimensions | ||
1 |
20' |
5850mm(L)x2435mm(W)x2800mm(H) |
2 |
40' |
11750mm(L)x2435mm(W)x2800mm(H) |
Specification | ||
1 |
Frame Structure |
2.0mm-4.0mm Cold formed profile steel / Square tube |
2 |
Steel processing | Polishing / Derusting |
Primer Coat: epoxy zinc-rich primer two layers | ||
Finishing Coat: alkyd honed painting as your requirement | ||
3 |
Roof |
2-3mm Bending steel plate |
4 |
Ceiling |
12mm gypsum board/12mm PVC ceiling/50mm color steel sandwich panel(optional as 16mm carved metal insulation board) |
5 |
Wall |
50/75/100mm PU/EPS/Glasswool/Rool wool sandwich panel |
6 |
Flooring |
15mm /18mm CCA cement fiber board/Plywood+2mm PVC floor( optional as 12mm/18mm/20mm CCA+10mm composite wood ) |
7 |
Door |
Sandwich panel door /steel door/stainless steel door |
8 |
Window |
PVC sliding window(4mm thickness glass) or aluminum window |
9 |
Packing |
Flat down packing |
10 |
Loading |
6-8 sets 20ft container house can be loaded in 1x40HQ |
Technical Parameter | ||
1 |
Temperature Resistance |
(-45°C) to 50 °C |
2 |
Earthquake Resistance |
Grade 8 |
3 |
Wind Resistance |
100km/h |
4 |
Floor live load |
2KN/m2 |
5 |
Roof live load |
0.5KN/m2 |
6 |
Life span |
more than 15 years |
Product details
Advantages

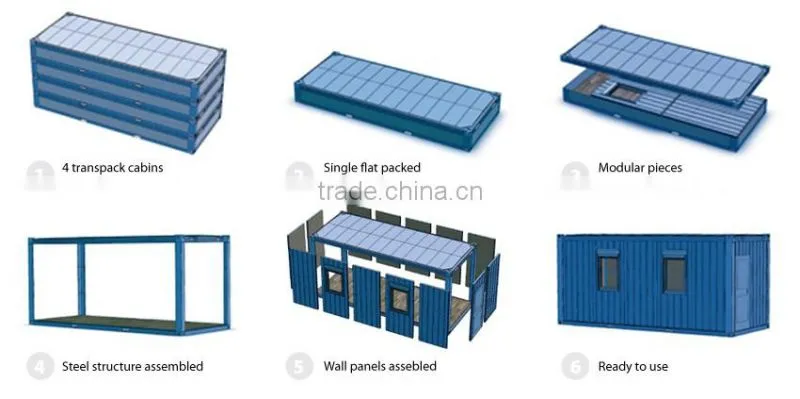

1.Easy to install:4 people two days can finished one Flatpack container house.
2.Easy to disassemble, 2-4 people can disassemble 3-5 Flatpack container house one day.
3.Service life:15-25years for once assembly ,10 years for at least 6 times assembly.
4.Environment protection and saving energy,no construction waste, reusable, materials can be recycled.
5.Competitive price,compared with traditional construction cost saving more than 50%.
6.light and reliable ,the steel structure is strong and firm .
7.Nice capacity of water proof .moisture proof and heat insulation and sound insulation.
8.Diversified Specification:Our design can be customized. The doors, windows and front and back walls can be exchanged each other. And the partition walls according to the customers’ requirements.
9.Practical,good space utilization and high price performance.

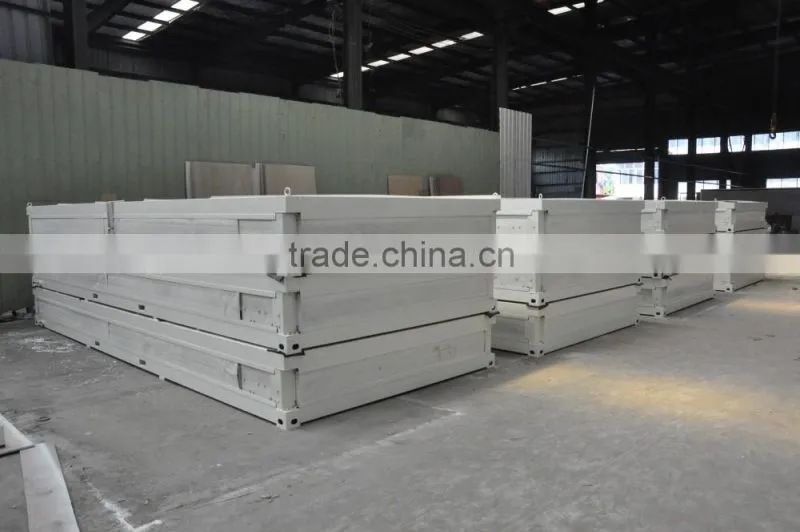

1. All the materials are well packed by the plywood or the steel skid before loading the container.
2. One 40’HQ can load about 6-8sets
3. All the materials are well fixed and tight to prevent the moving during the transport.
4. Loading plan will be designed before the materials loading to utilize the loading space and reduce the shipping cost .
Guangzhou MoneyBox Steel Structure Engineering Co.,Ltd.

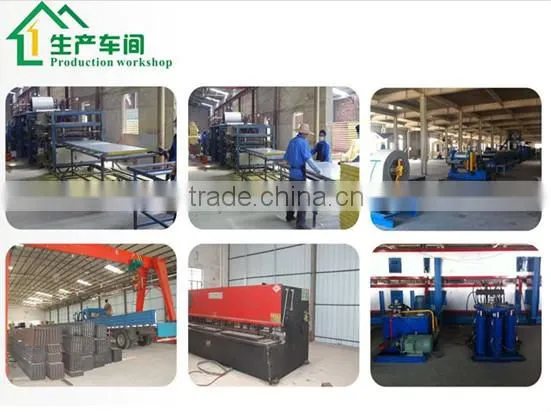

Moneybox was founded in 2011, covers more than 30,000 square meters, the leader of China's light steel building industry, always takes popularizing green energy-saving light steel structure buildings at the first place and is devoted to the development, popularization, research and application of light steel structure energy-saving buildings.
Our main products are as follows:
1. Light Steel Villa/ House/ Hotel
2. Container House/ Box
3. Light Steel Senyry box/ Guard House/ Mobile Store / Toilet
4. Flat/ Slope/ Hipped Roof Prefab House
5. Light Steel Structure
6. Sandwich Panel
7. Decorative Materials
Our Business Philosophy : "Quality First + Creative + Honesty + Service = Success", and gradually establish a scientific management system, more than 10 provinces and cities in the country set up a sound distribution agencies and service outlets, with a strong the service team is backing the establishment of a famous brands- Moneybox.
Our Honors : The company introduced and passed the ISO9001 quality system certification, product won the "Guangdong Famous" and "Green Product of Choice," "Chinese Famous Brand", "Chinese Construction Projects Recommended Products", honorary certificates. In the reconstruction after Wenchuan Earthquake, Moneybox’s prefab houses played a very important role,and was awarded with "Advanced Group" by Government .
Our Target : Recent years, Moneybox is also committed to expanding overseas markets, products exported to South America, Europe, the Middle East, Southeast Asia and Africa, has become a world-renowned brands. Integrity of the world, win-win cooperation, and have a better further.
