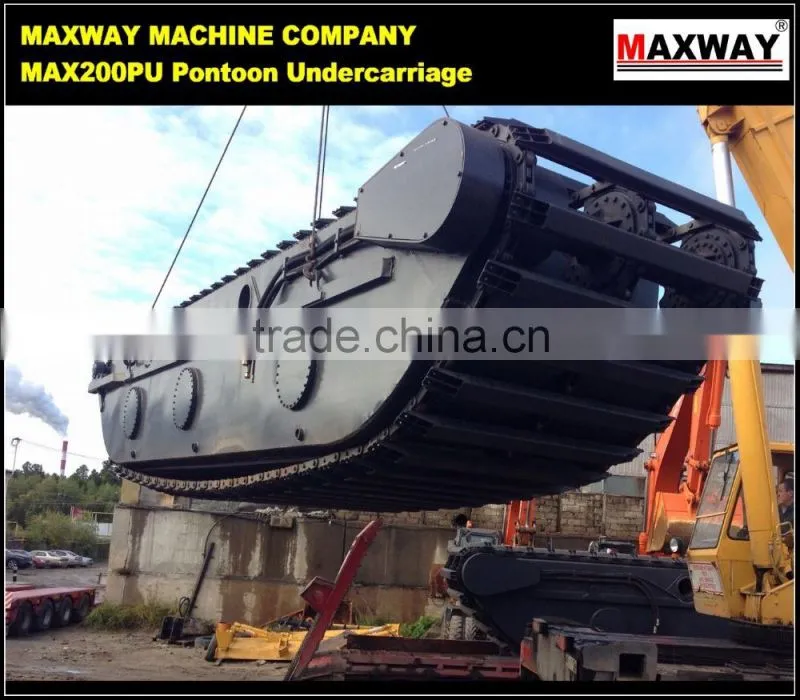

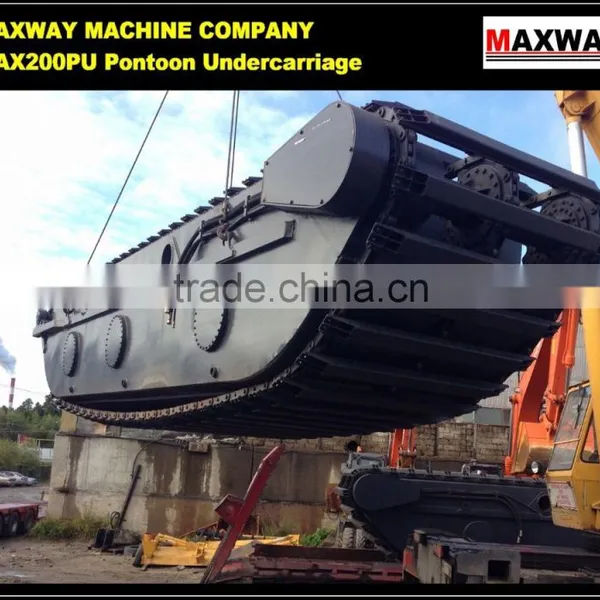

MAXWAY AMPHIBIOUS EXCAVATOR / PONTOON UNDERCARRIAGE INTRODUCTION:
We MAXWAY mainly produce 6Ton to 50Ton amphibious excavator and pontoon undercarriages . According to your requests, we could assemble different brands and model excavator upper parts, like DX260LC, PC200, HITACHI ZX210, EX260,CAT330.....Also, if you have crawler excavator (New or Used) , we can only produce amphibious undercarriage (Pontoon Undercarriage) for you. Sincerely wish could have chances to do businss with you and welcome you to visit our factory!
Construction: --- MAXWAY Amphibious excavator undercarriage ( Pontoons) is manufactured from Q345B ( Cr50 ) or A36 steel plate. So, they are allowed to be used in brackish water without affecting the pontoon's structural integrity.The pontoon bottoms are also reinforced for rough terrain operation. Each pontoon has 3 independent watertight compartments ensuring pontoon buoyancy ,if one of them is broken.
Track shoes : --- Track shoes of MAXWAY pontoon undercarriage are made of specially produced Q345B Steel. They are strong enough to support the whole amphibious excavator.Also, the wide and thick track shoes could help the MAXWAY Amphibious excavator walking ( Floating and swimming on water) faster.
Track chains : --- We assemble 3 rows of chains on each pontoon. It is more reliable and durable than 2-chain pontoon. Also, the 3-chain could raise the track shoes strength when walking on rough terrains. MAXWAY Amphibious excavator track chains are made of super durable 40Cr special steel. This high quality steel can guarantee long-life of chains. So, it is safer to work on deep water.
Hydraulic drive: --- According to users' requests, we could install 2 or 4 travel motor assembles on each pontoon undercarriage (amphibious excavator undercarriage). Usually, we choose DOOSAN brands travel motors.They are reliable quality and very reasonable prices. Besides, DOOSAN travel motor could supply very enough power to drive the amphibious excavators.
MAXWAY AMPHIBIOUS EXCAVATOR COULD BE USED TO DO :
1.Deepening of canal, river channel and river mouth
2.Swamp land clearing at mining area, plantation and forest
3.Building bund for flood prevention and land reclamation
4.Building bund wall for fish and shimp ponds and salt making industry
5.Sludge clearing of lakes, ponds and water reservoir
6.Digging trenches for oil and gas piping installation
7.Transporting and clearing landslide and flood hit area
8.Swamps and wetlands construction
9.Road construction through wetlands.
SPECIFICATION OF MAX SERIES PONTOON UNDERCARRIAGES:
PRODUCTION PROCESS OF MAXWAY SERIES PONTOON UNDERCARRIAGES:
( 2 or 3 rows chain on each pontoon. Assembled 2 or 4 DOOSAN travel motor assemblies)

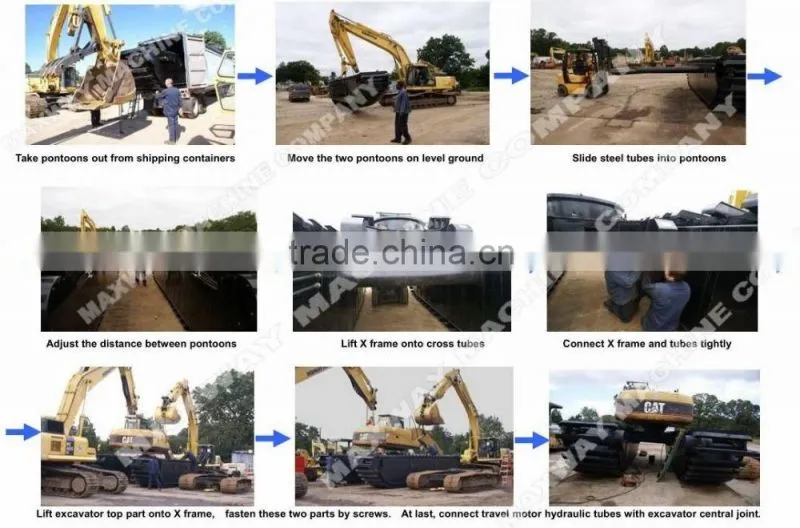

ASSEMBLY WORK OF MAXWAY AMPHIBIOUS EXCAVATOR:
(Very easy to do, usually it takes 3--5 hours to finish)

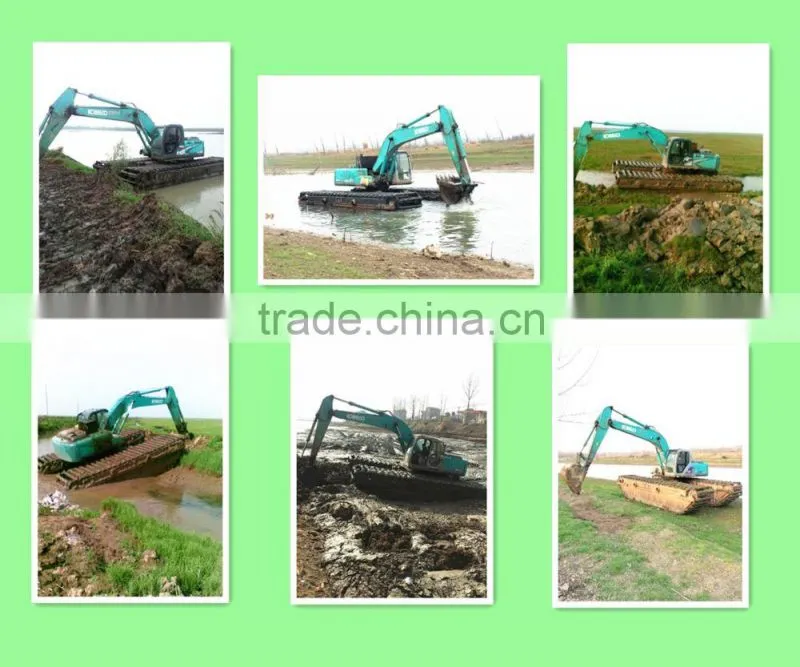

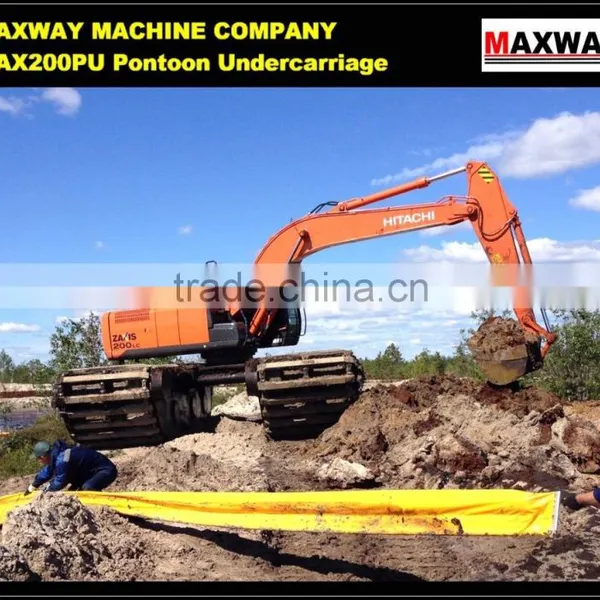

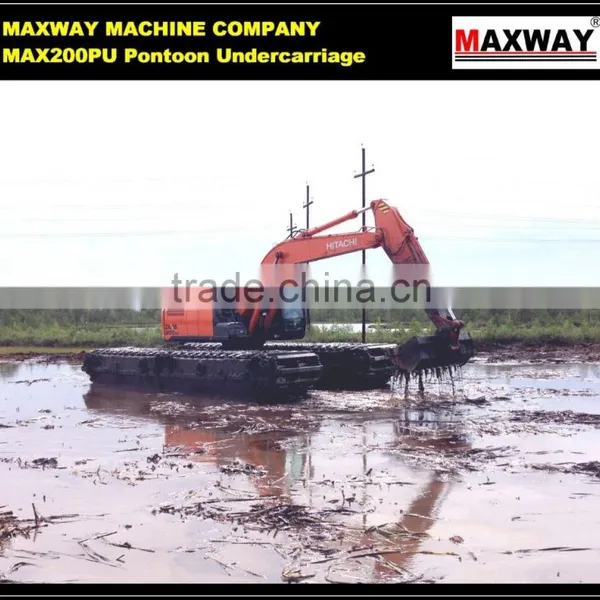

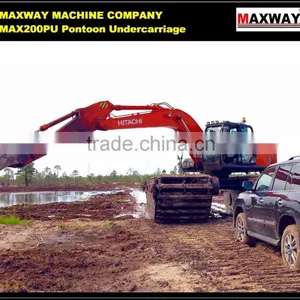

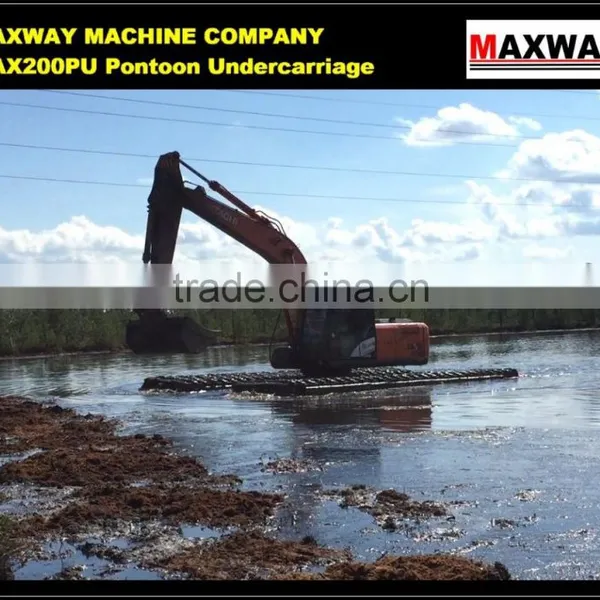

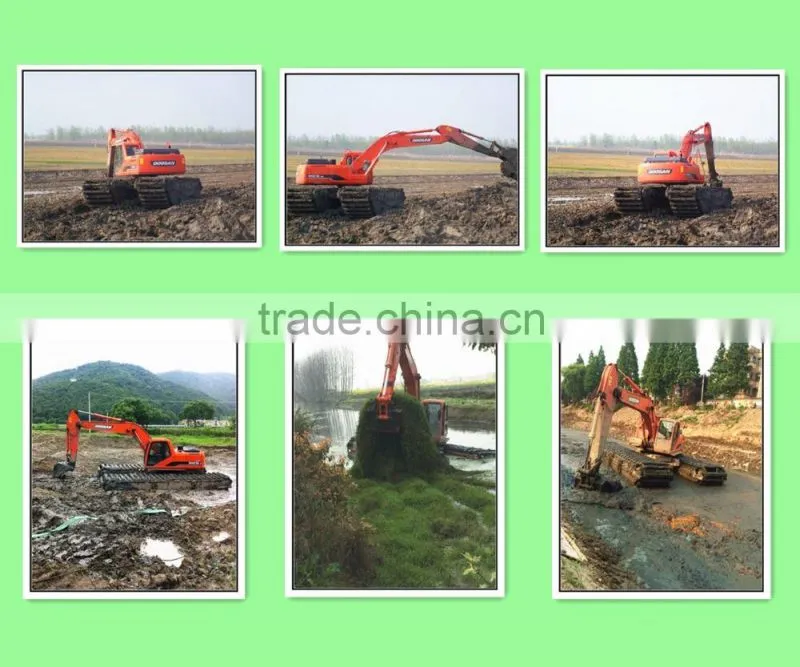

WORKING PERFORMANCE OF MAXWAY AMPHIBIOUS EXCAVATORS:
(Our pontoons could be assembled with CAT, DOOSAN, HITACHI, VOLVO,KOBELCO....)

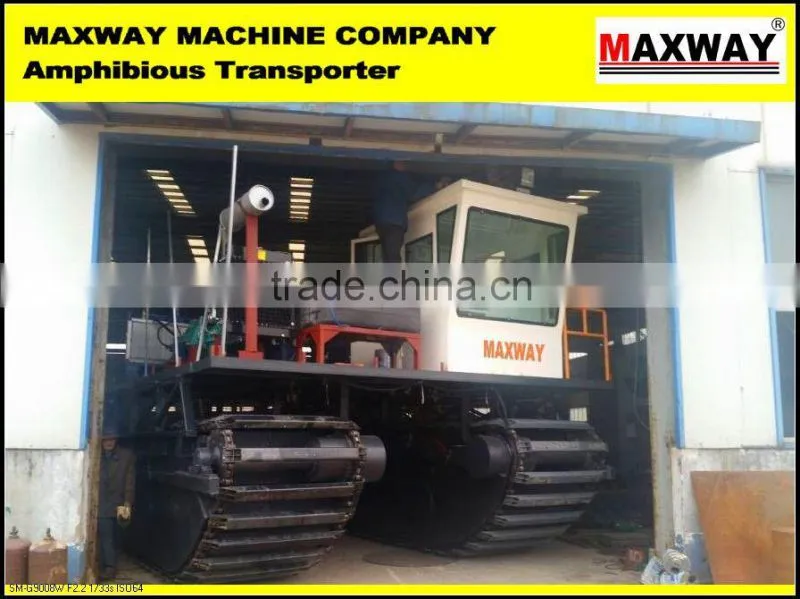

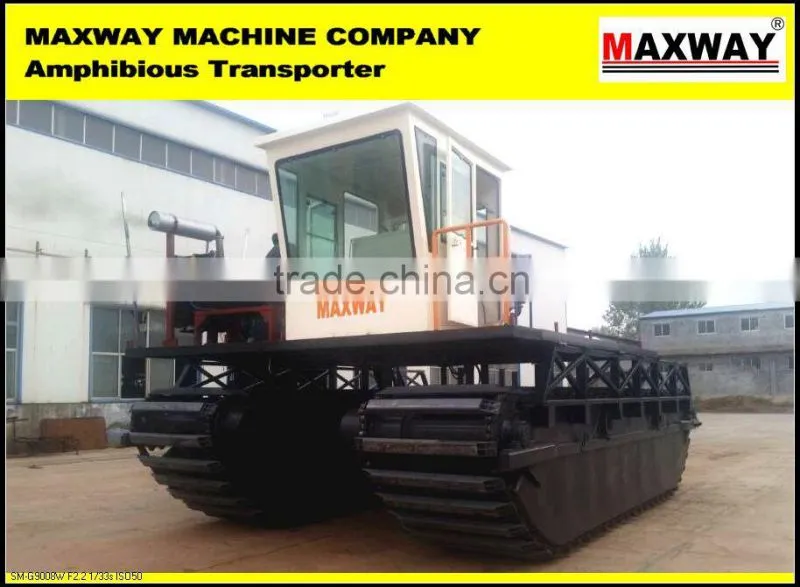

MAXWAY AMPHIBIOUS TRANSPORTER :
(By assembled big float pontoon undercarriage and travel motors, it could travel and transport goods
on water / swamp / mud. Also, if needed, hydraulic crane could be assembled on this machine.
Payload, dimension and engine brands could be customized.)

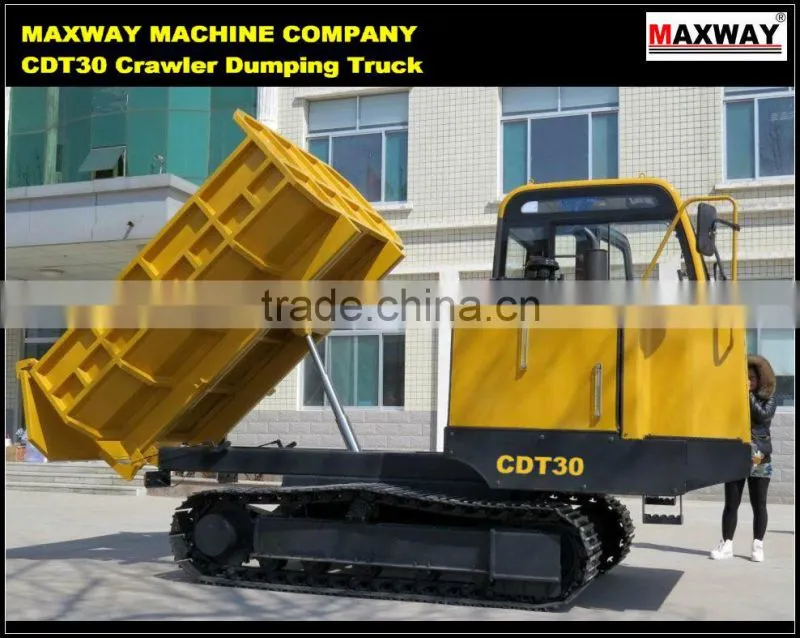

3 to 10Ton CRAWLER HYDRAULIC DUMPER :
(Steel crawler or Rubber crawler, Cummins engine, Customized dimension)
WE ALSO COULD SUPPLY THE FOLLOWING PRODUCTS:

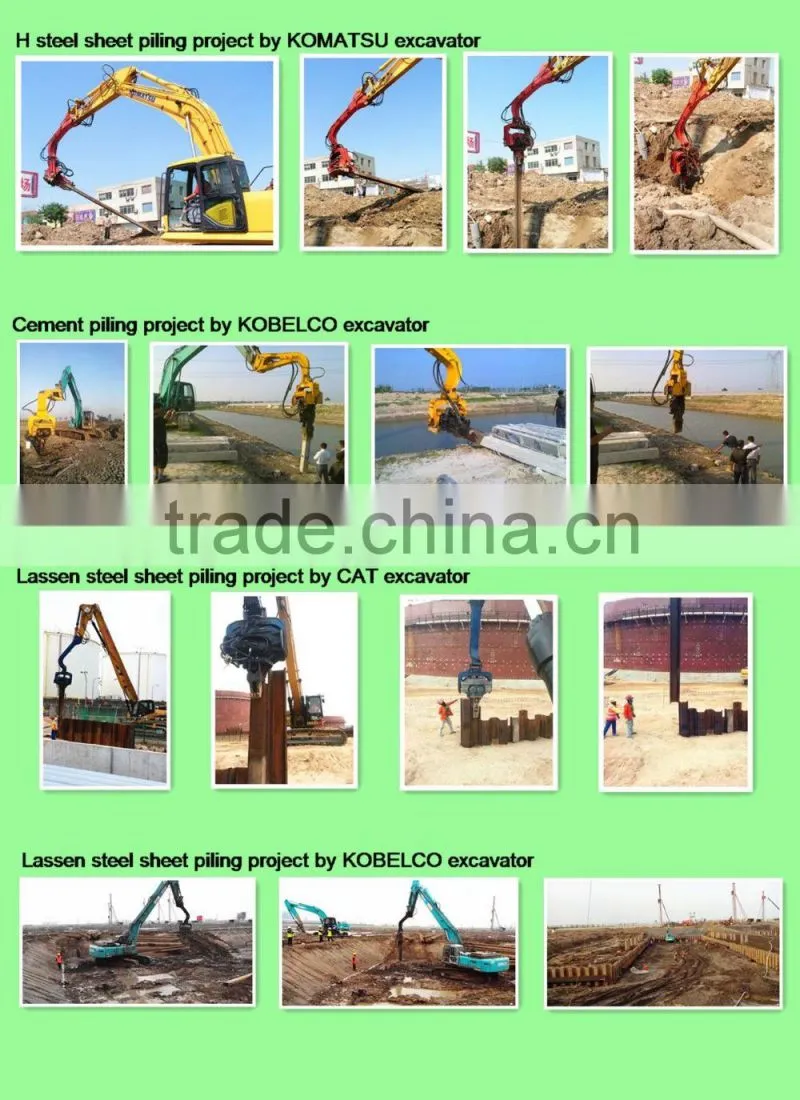

( Long boom, hammer, bucket, grab, cutter suction pump, undercarriage spare parts, pile driving machine.....)
SINCERELY WISH COULD HELP YOU ~~
