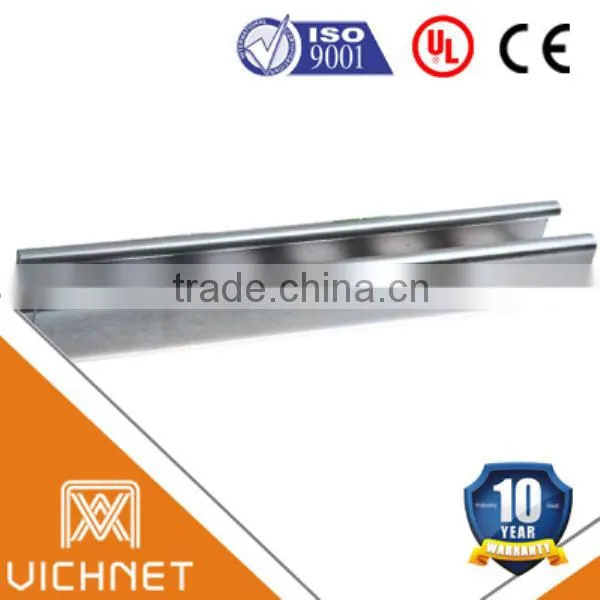

The Brief descrip the uni strut channel(ISO,CE,UL)
>uni strut channel(ISO,CE,UL)later type with advantage of inventive time saving ,cost saving ,simple installation.
>uni strut channel(ISO,CE,UL)later type makes securing tray effortless with no hardware needed, screwless, clampless connections.
>uni strut channel(ISO,CE,UL)later type loading capacity is 27% stronger than traditional cable trays and cable ladder.
>uni strut channel(ISO,CE,UL)made cables fast heat dispersion and prolong cable life.
The uni strut channel(ISO,CE,UL) is the best choice for cable management solution.
The professional manufacturer & supplier of uni strut channel(ISO,CE,UL)
Vichnet is a leading manufacturer specializing in producing wire mesh cable trays, fiber runner,located in the beautiful coastal city of Ningbo, Zhejiang Province,China. Currently, our wire mesh cable tray have been using in over 100 countries with a variety of Certificates approved like: UL, CUL and CE, passed SGS and TUV tests. With GMC and ISO9001 certifications, Vichnet becomes a qualified supplier for even the most rigorous projects, including Siemens, Google, Microsoft, Coca Cola, P&G, IBM, Philip Morris, Nestle,Robust, Kraft, China Telecom, China Mobile, China Unicom, Hua Wei etc.
Our slogan is “Reliable wire mesh cable tray ! Reliable Vichnet !”. At vichnet, we do our best to win the satisfaction of our customers.
Certificate for uni strut channel(ISO,CE,UL)
(Hot Dip Galvanied finishing uni strut channel(ISO,CE,UL) )
(Electro Zinc plating uni strut channel(ISO,CE,UL))
(Powder coating finishing uni strut channel(ISO,CE,UL))
Material |
Surface Finishing |
Thickness of finish |
Application Environment |
Q235 Steel |
Electro zinc plating |
>=12μm |
Indoor |
Q235 Steel |
Hot dipped galvanized |
>60μm |
Indoor, Outdoor |
Q235 Steel |
Powder coated |
>60μm |
Indoor, need colors |
SS304 |
Electrolytic Polishing |
N/A |
Indoor, Outdoor |
SS316 |
Electrolytic Polishing |
N/A |
Indoor, Outdoor, high corrosion occasions |

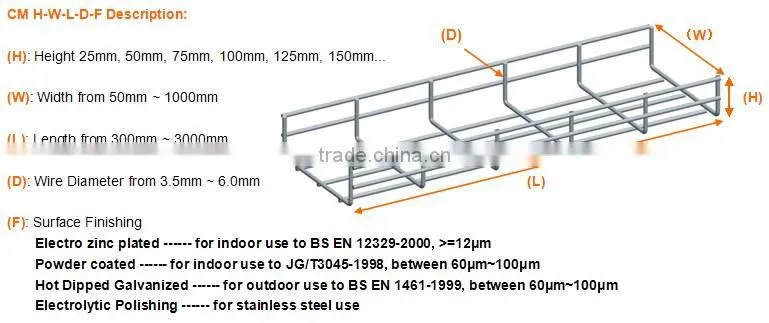

Dimensions: (Available for customized) uni strut channel(ISO,CE,UL)
>uni strut channel(ISO,CE,UL) dimensions are all internal size.
Item Names |
Height |
Width |
Length |
Wire Diameter |
Weight |
||
CM H-W-L-D-F |
mm |
inch |
mm |
inch |
mm |
mm |
kg/each |
CM25-50-3000-3.5-F |
25 |
1 |
50 |
2 |
3000 |
3.5 |
1.01 |
CM50-50-3000-3.8-F |
50 |
2 |
50 |
2 |
3000 |
3.8 |
1.90 |
CM50-100-3000-4-F |
50 |
2 |
100 |
4 |
3000 |
4.0 |
2.58 |
CM75-150-3000-4.5-F |
75 |
3 |
150 |
6 |
3000 |
4.5 |
4.67 |
CM100-200-3000-4.8-F |
100 |
4 |
200 |
8 |
3000 |
4.8 |
7.12 |
CM125-300-3000-5-F |
125 |
5 |
300 |
12 |
3000 |
5.0 |
9.94 |
Note: uni strut channel(ISO,CE,UL) are constructed with a 50mm x 100mm, 50mm x 50mm.
Installation Notice: uni strut channel(ISO,CE,UL)

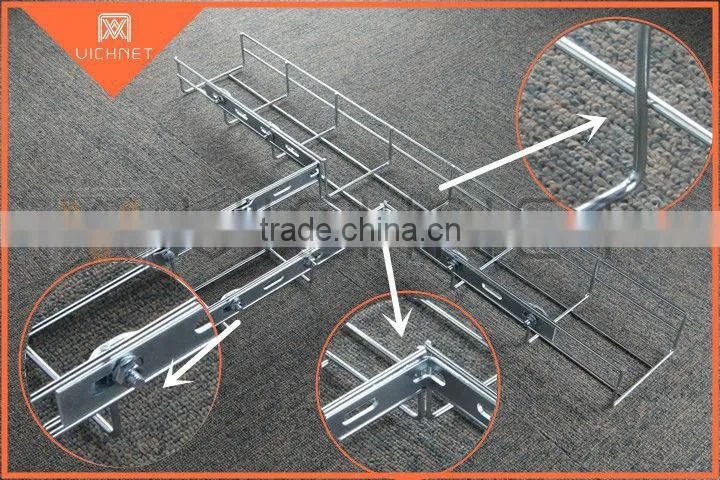

>Bends, Risers, T Junctions, Crosses and Reducers can be made from uni strut channel(ISO,CE,UL) straight sections flexibly in project site.
>uni strut channel(ISO,CE,UL) can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
>For security, the uni strut channel(ISO,CE,UL)s can be made available with covers.

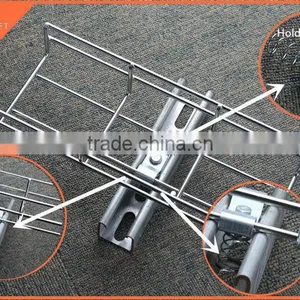

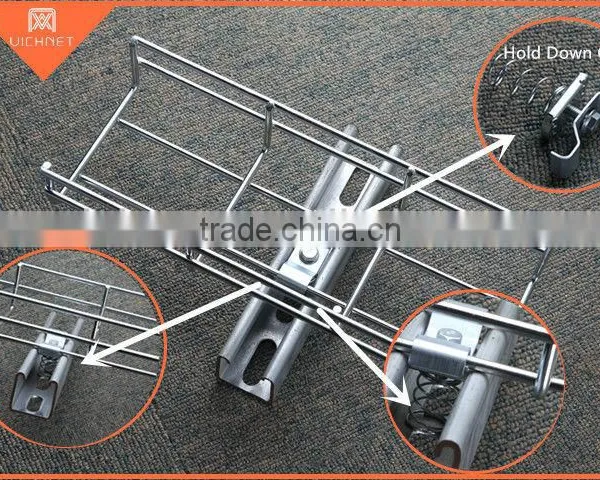

Product Detail: uni strut channel(ISO,CE,UL)
SWL ( safe work loading) tests uni strut channel(ISO,CE,UL)
Standard IEC 61537:2007 uni strut channel(ISO,CE,UL)
Project show for uni strut channel(ISO,CE,UL)
Application for uni strut channel(ISO,CE,UL)
Welcome to choose Vichnet high quality Cable basket tray,please focus on Vichnet offical website: ,you will get more surprises!
