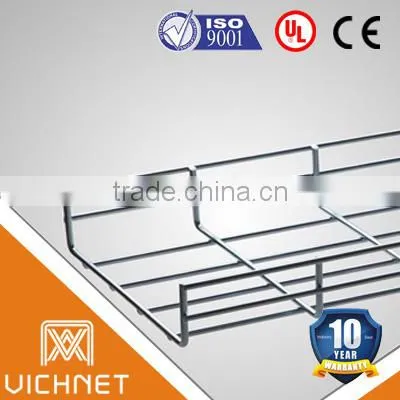

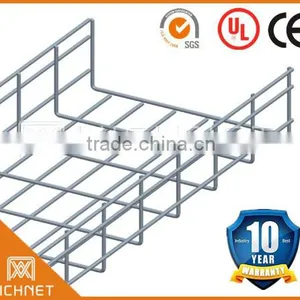

Help CenterCM100 Series Basket Cable Tray (UL, CUL .CE.SGS)
Related Products
-
Plastic Cable Tray and TrunkingUS$ 5 - 50MOQ: 1 Piece -
Flexible Stainless Steel Wire Asket Cable TrayUS$ 5 - 50MOQ: 1 Piece
-
SS304/SS316 China UL CUL CE Cable BridgeNegotiableMOQ: 1 Piece
-
Hot Dip Galvanized UL CUL Wire Mesh Cable TrayNegotiableMOQ: 1 Piece
-
China Electro-galvanized UL CUL Vichnet Wire Mesh Cable TrayNegotiableMOQ: 1 Piece
Specifications
Basket cable tray (UL, CUL .CE.SGS)1.Have complete accessories.
2.Easy for installation.
3.Light weight

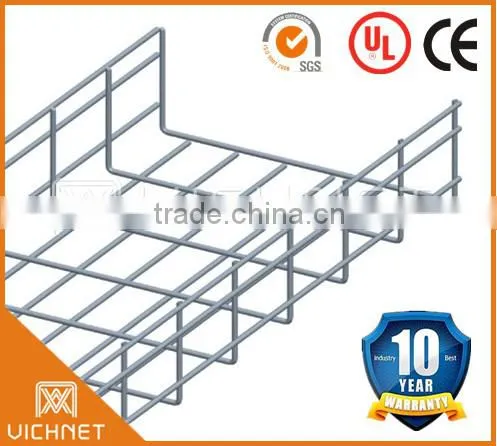

VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
WHY CHOSE VICHNET
1 Our Wire mesh cable tray can Guarantee 1O years.
2 Our wire mesh cable tray passed UL, CUL, CE test, the Only wire Mesh Cable Tray manufacturer who has UL certificate in China.
3 Google,Siemens, Microsoft, BT, China Telecom IDC wire mesh cable tray supplier with UL, CE certificated.
4 Our wire mesh cable tray have complete accessories,Can solve all kind of install solution
5 We draw down 8mm wire to 5mm to smooth and strengthen the wire.
6 There is no tolerance of our tray size and wire diameter.
7 Our zinc coating is non-toxic and 60μ up. It can be passed Rohs test.
8 Vichnet provides all solution for wire mesh cable tray systems, provide the technical guide movie.
ICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
VI
CHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
Vichnet is a telecommunication product manufacturer specialized in manufacturingstainless steel wire mesh cable tray (UL, CUL .CE.SGS).Our factory is located in the port city Ningbo.We have a professional team devoted to designing and producing reliable stainless steel wire mesh cable tray (UL, CUL .CE.SGS) that meet the needs of our global customers.
We are Google,Siemens, Microsoft, BT, China Telecom IDC stainless steel wire mesh cable tray (UL, CUL .CE.SGS)supplier with UL, CUL,CE ISO9001:2008 and GMC. certificated.

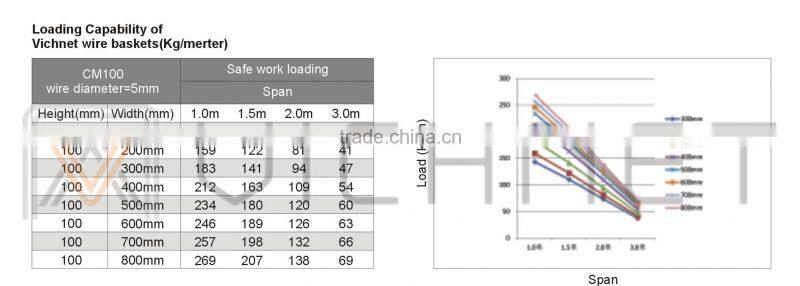

Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS)passed Rohs, loading capacity, welding strength etc. tests.
Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS) guarantee 10 years.
Material: VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
(stainless steel wire mesh cable tray (UL, CUL .CE.SGS))
Material |
Surface finishing |
Thickness of coating |
Application environment |
Q235 Steel |
Electro zinc plating |
>=12um |
Indoor |
Q235 Steel |
Hot dip galvanized |
>60um |
Indoor, Outdoor |
Q235 Steel |
Powder coating |
>60um |
Indoor, need colors |
SS304 |
acid washing |
N/A |
Indoor, Outdoor |
SS316 |
acid washing |
N/A |
Indoor, Outdoor, high corrosion occasions. |
SS316L |
acid washing |
N/A |
Indoor, Outdoor, high corrosion occasions. |
Dimensions: (Available for customized)
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
stainless steel wire mesh cable tray (UL, CUL .CE.SGS) dimensions are all internal size.

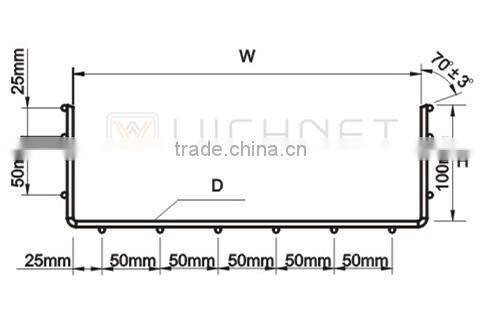

stainless steel wire mesh cable tray (UL, CUL .CE.SGS) are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Surface Finish:
Electro zinc plated stainless steel wire mesh cable tray – for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated stainless steel wire mesh cable tray - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized stainless steel wire mesh cable tray – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing stainless steel wire mesh cable tray – for stainless steel use

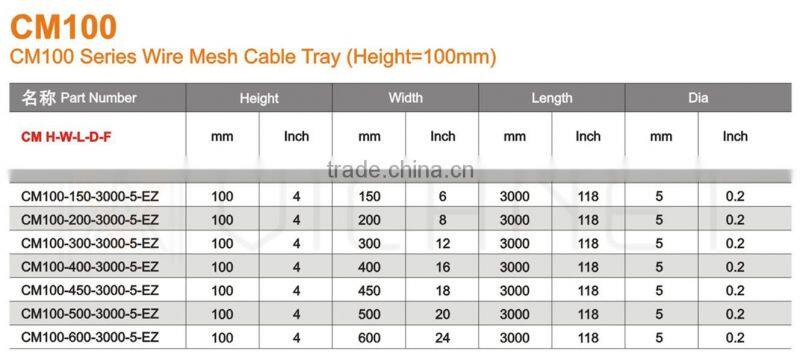

Dimensions: (Available for customized)
stainless steel wire mesh cable tray dimensions are all internal size.
stainless steel wire mesh cable tray y are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
stainless steel wire mesh cable tray Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...

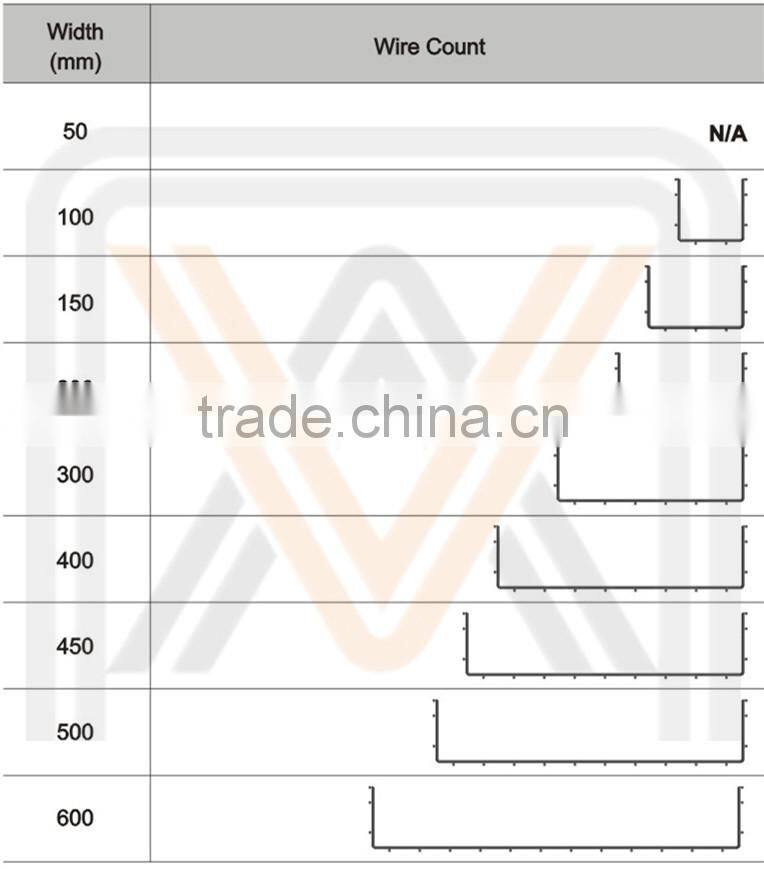

stainless steel wire mesh cable tray Widths: 50~1000mm.
stainless steel wire mesh cable tray Length: Maxiun 3000mm
stainless steel wire mesh cable tray Wire Diameter: 3.5~ 6.0mm
Installation Notice: stainless steel wire mesh cable tray
Bends, Risers, T Junctions, Crosses and Reducers can be made from stainless steel wire mesh cable tray straight sections flexibly in project site.

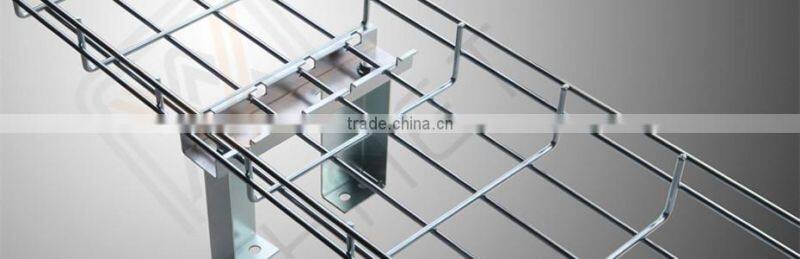

stainless steel wire mesh cable tray should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
stainless steel wire mesh cable tray can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
Our Advance ( stainless steel wire mesh cable tray )
1. Vichnet is a leading stainless steel wire mesh cable tray manufacturer in China
2. Focus on producing stainless steel wire mesh cable tray
3.ISO9001:2008/UL/CUL/CE, passed Rohs test
4. stainless steel wire mesh cable tray EZ>12u, HDG>60u
5. Vichnet provides all solution for stainless steel wire mesh cable tray systems, provide the technical guide movie.
6. Advance design team, OEM service accepted.
7. Siemens and GE specified stainless steel wire mesh cable tray system supplier
Welcome to choose our high quality stainless steel wire mesh cable tray
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
