Home > Products > Accessories for Wire Mesh Cable Tray > Cable Tray System Accessories-CORNER STRENGTH BAR
Cable Tray System Accessories-CORNER STRENGTH BAR
- 100000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | VICHNET | Model Number: | PJ-CSB-EZ |
Product Description
Specifications
1.Focus on wire mesh cable tray accessories2.ISO9001:2008/UL/CUL/CE,passed Rohs test
3.Have complete accessories
Vichnet China is located in the port city Ningbo. Vichnet wire mesh cable tray is exported to more than 100 countries.
Vichnet is Google, Microsoft, BT, China Telecom IDC wire mesh cable tray supplier with UL, CE certificated.
Our product guarantee 10 years
Our wire mesh cable tray have complete accessories,Can solve all kind of install solution
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Surface Finish:
Electro zinc plated wire mesh cable trays – for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated wire mesh cable trays - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized wire mesh cable trays – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing wire mesh cable trays – for stainless steel use

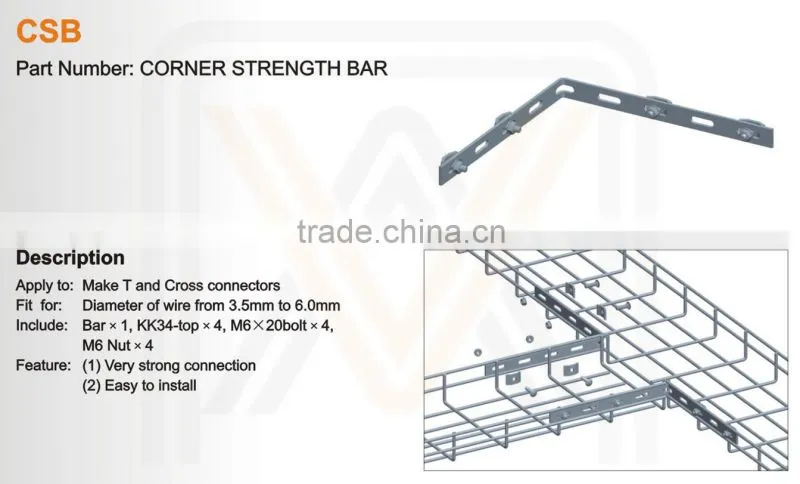

Description:
Apply to: Make T and Cross connectors for 50mm height trays
Fit for: Diameter of wire from 3.5mm to 6.0mm
Include: Barx1,KK34-topx4,M6x20boltx4,M6 nutx4
Feature: (1)Very Strong Connection(2)Easy
2. ISO9001:2008/UL/CUL/CE, passed Rohs test
3. The accessories surface EZ>12u, HDG>60u
4. Sell to more than 100 countries
5. Have complete accessories
Material | Surface finishing | Thickness of coating | Application environment |
Q235 Steel | Electro zinc plating | >=12um | Indoor |
Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
Q235 Steel | Powder coating | >60um | Indoor, need colors |
SS304 | acid washing | N/A | Indoor, Outdoor |
SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
...
