Specifications

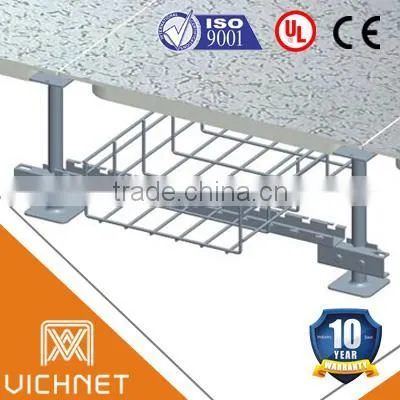

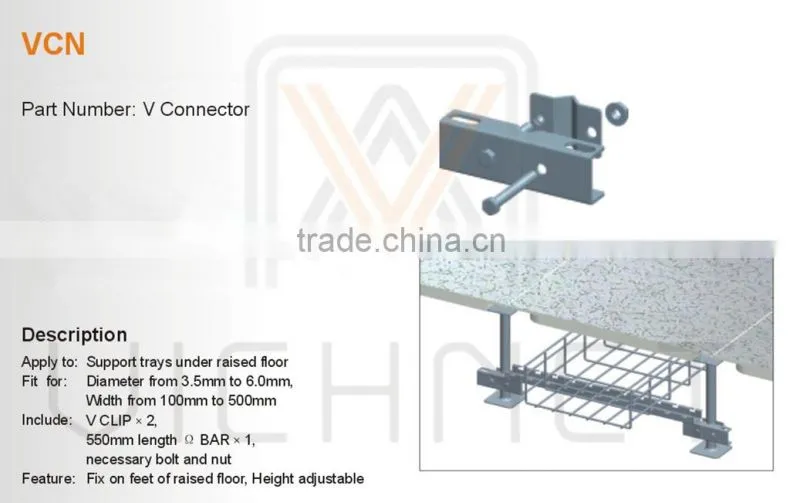

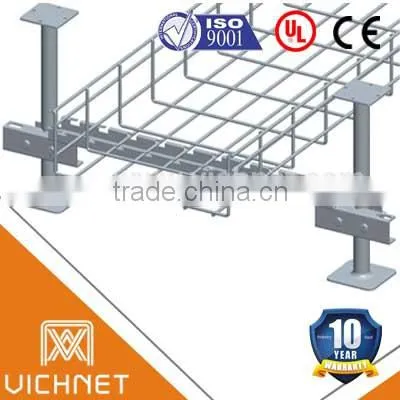

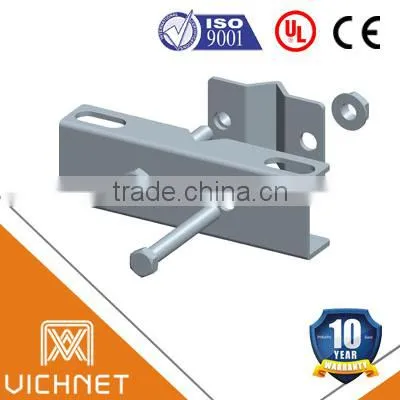

Joint for Cable Tray V Connector1.Focus on wire mesh cable tray accessories
2.ISO9001:2008/UL/CUL/CE,passed Rohs test
Company Information

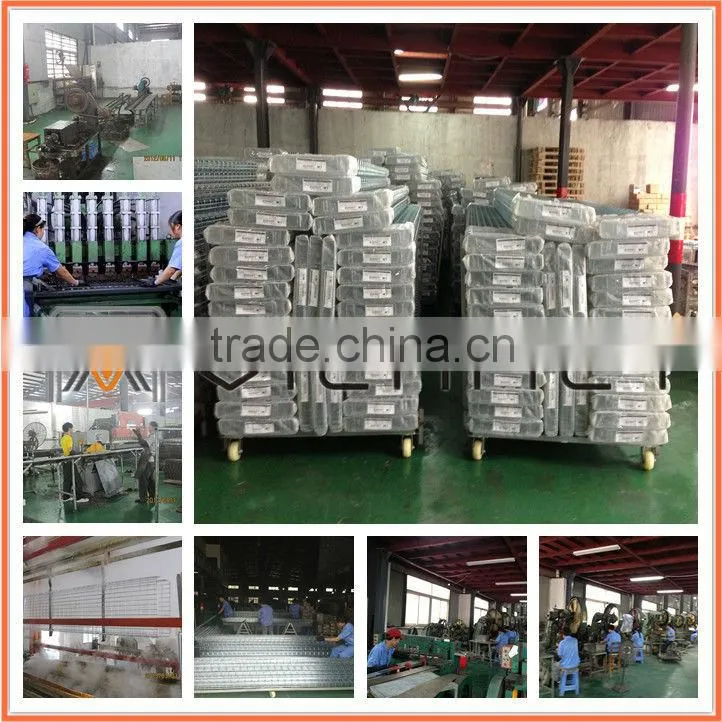

Vichnet is professional in manufacturing Joint for Cable Tray V Connector , The company is located in the beautiful coastal city of Ningbo, Zhejiang Province.
Our wire mish cable tray is windy used by Google ,Cocacola,Siemens ,Mircrosoftect, famous company

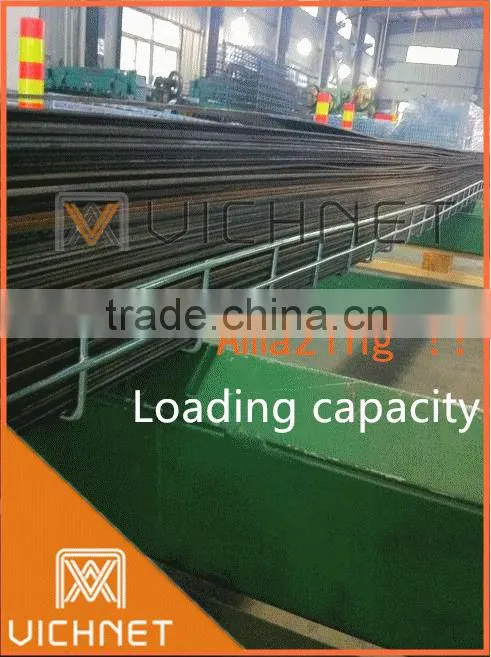

Our company has ISO9001:2008 and GMC. Wire mesh cable tray has UL, CUL, CE certificates and passed Rohs, loading capacity, welding strength etc. tests
Our slogan is “Reliable wire mesh cable tray ! Reliable Vichnet!”. At vichnet, we do our best to win the satisfaction of our customers.
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Surface Finish:
Electro zinc plated cable tray– for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated Cable Tray - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized Cable Tray – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing Cable Tray – for stainless steel use
| Material | Surface finishing | Thickness of coating | Application environment |
| Q235 Steel | Electro zinc plating | >=12um | Indoor |
| Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
| Q235 Steel | Powder coating | >60um | Indoor, need colors |
| SS304 | acid washing | N/A | Indoor, Outdoor |
| SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
| SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion |
Dimensions: (Available for customized)
Wire mesh cable tray dimensions are all internal size.
Wire cable basketss are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Installation Notice:
Bends, Risers, T Junctions, Crosses and Reducers can be made from wire cable baskets straight sections flexibly in project site.

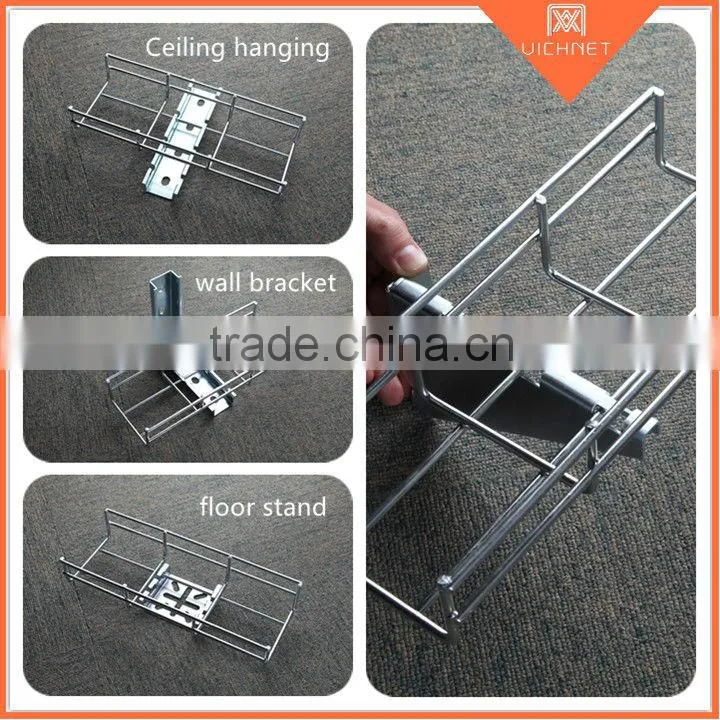

Wire cable baskets should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
Wire cable baskets can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics
Our Advantage
2. Siemens and Google specified wire cable baskets supplier.
3. ISO9001:2008/UL/CUL/CE, passed Rohs test.
4. Wire cable baskets EZ>12u.HDG>60 ,PC>60
5. Vichnet provides all solution for wire cable baskets, provide the technical guide movie.
6. Advance design team, OEM service accepted.
