Specifications
cable tray hangers1.Have complete accessories.
2.Easy for installation.
3.Light weight

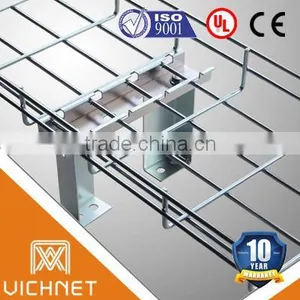

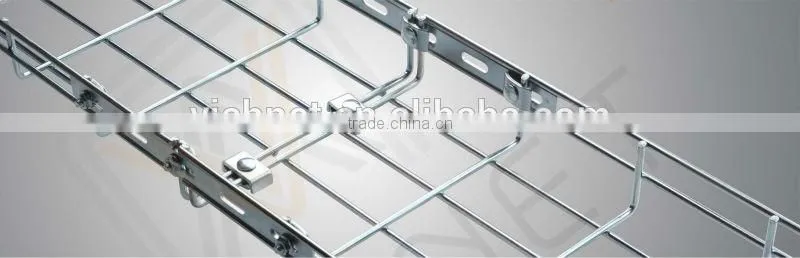

CM50 series cable tray hangers
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
VI
CHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
Vichnet is a telecommunication product manufacturer specialized in manufacturingstainless steel wire mesh cable tray (UL, CUL .CE.SGS).Our factory is located in the port city Ningbo.We have a professional team devoted to designing and producing reliable stainless steel wire mesh cable tray (UL, CUL .CE.SGS) that meet the needs of our global customers.
We are Google,Siemens, Microsoft, BT, China Telecom IDC stainless steel wire mesh cable tray (UL, CUL .CE.SGS)supplier with UL, CUL,CE ISO9001:2008 and GMC. certificated.

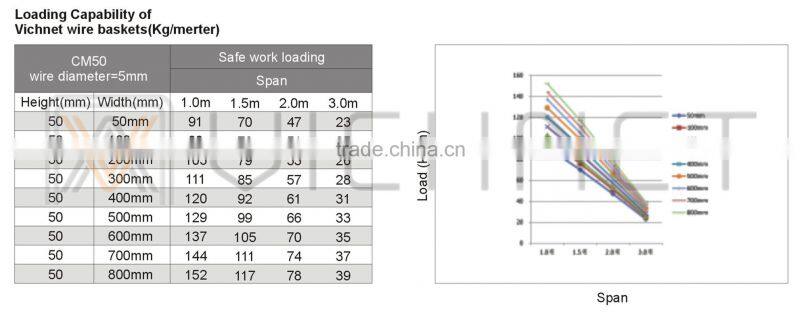

Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS)passed Rohs, loading capacity, welding strength etc. tests.
Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS) guarantee 10 years.
Material: VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
(stainless steel wire mesh cable tray (UL, CUL .CE.SGS))

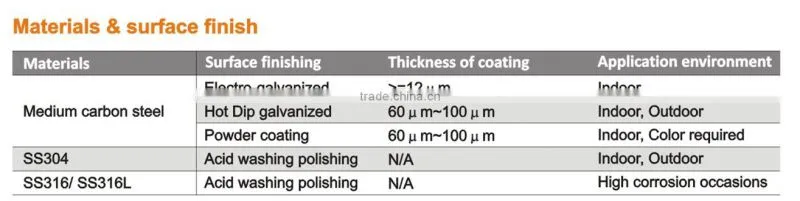

Material | Surface finishing | Thickness of coating | Application environment |
Q235 Steel | Electro zinc plating | >=12um | Indoor |
Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
Q235 Steel | Powder coating | >60um | Indoor, need colors |
SS304 | acid washing | N/A | Indoor, Outdoor |
SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
Dimensions: (Available for customized)
VICHNET stainless steel wire mesh cable tray (UL, CUL .CE.SGS)
CM50 series cable tray hangers (UL, CUL .CE.SGS)dimensions are all internal size.

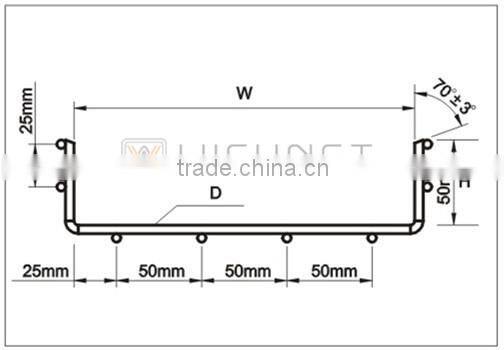

CM50 series cable tray hangers (UL, CUL .CE.SGS) are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Surface Finish:
Electro zinc plated CM50 series cable tray hangers – for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated CM50 series cable tray hangers - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized CM50 series cable tray hangers – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing CM50 series cable tray hangers – for stainless steel use

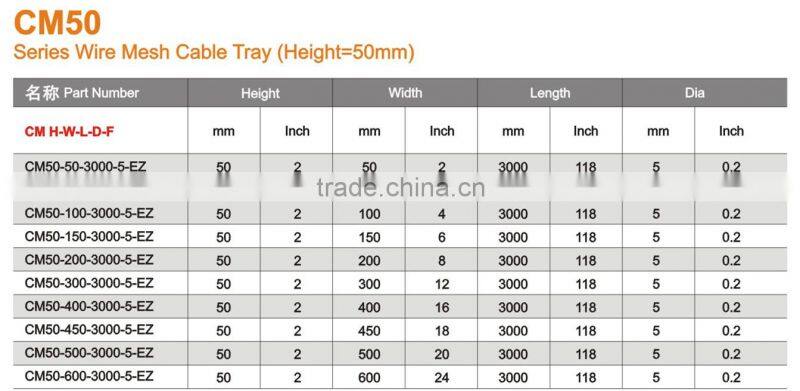

Dimensions: (Available for customized)
CM50 series cable tray hangers dimensions are all internal size.
CM50 series cable tray hangers y are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.

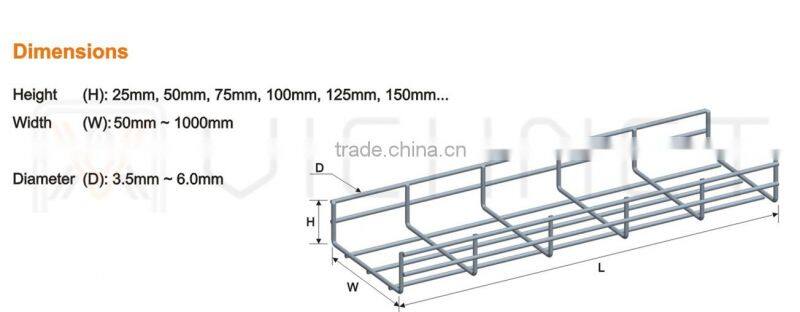

CM50 series cable tray hangers Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...

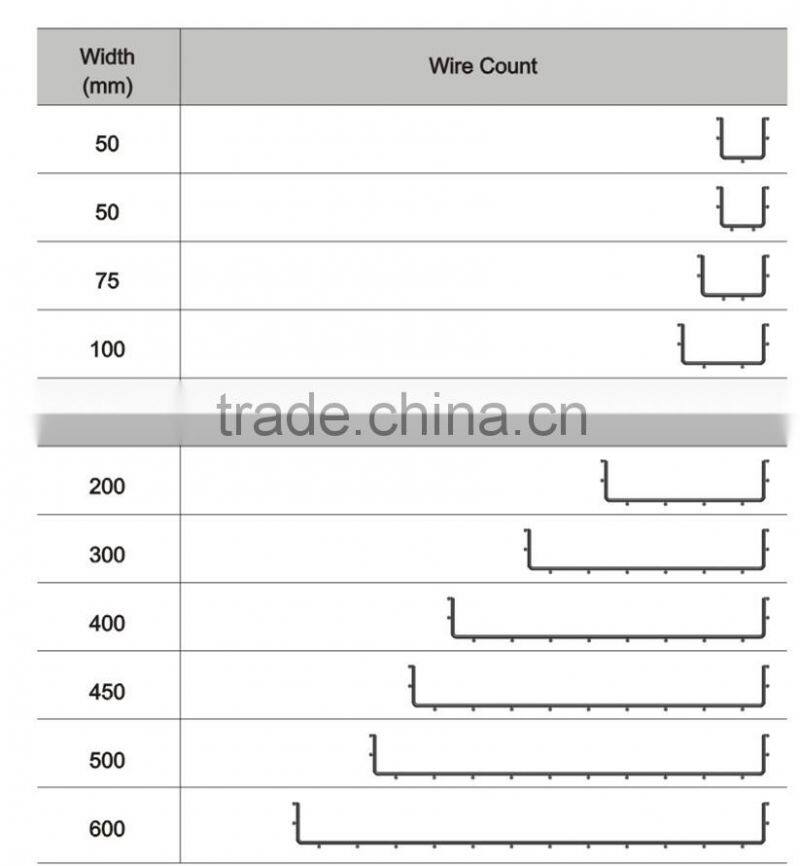

CM50 series cable tray hangers Widths: 50~1000mm.
CM50 series cable tray hangers Length: Maxiun 3000mm
CM50 series cable tray hangers Wire Diameter: 3.5~ 6.0mm
Installation Notice: CM50 series cable tray hangers
Bends, Risers, T Junctions, Crosses and Reducers can be made from CM50 series cable tray hangers straight sections flexibly in project site.
CM50 series cable tray hangersshould be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
CM50 series cable tray hangers can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
Our Advance ( CM50 series cable tray hangers )
1. Vichnet is a leading CM50 series cable tray hangers manufacturer in China 2. Focus on producing CM50 series cable tray hangers 3.ISO9001:2008/UL/CUL/CE, passed Rohs test 4. CM50 series cable tray hangers EZ>12u, HDG>60u 5. Vichnet provides all solution for CM50 series cable tray hangers systems, provide the technical guide movie. 6. Advance design team, OEM service accepted. 7. Siemens and GE specified CM50 series cable tray hangers system supplier
Welcome to choose our high quality CM50 series cable tray hangers
VICHNET CM50 series cable tray hangers (UL, CUL .CE.SGS)
