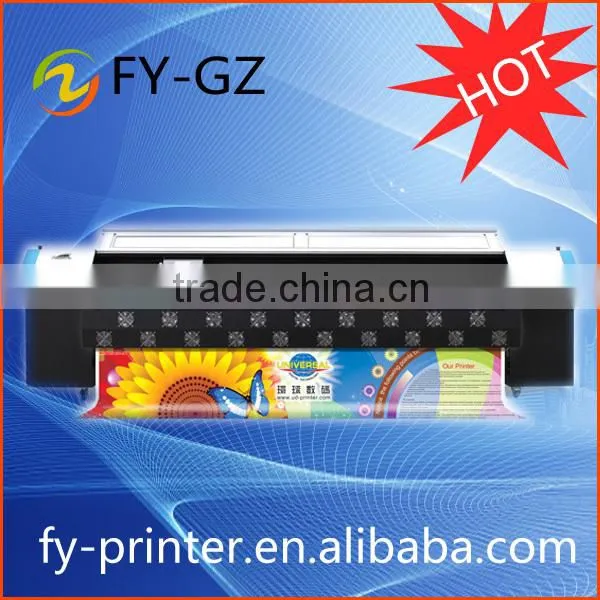

Pheaton UD 3286Q large format printer with SPT508GS pinthead
- 1000 Set / Sets per Month
- HuangPu(gunagzhou) or Shenzhen
- T/T Credit Card
-
Flatbed UV Printer 9060 6090 Flatbed Printer with Ricoh Heads
-
Diagraph TJ500/TJ1000 THERMAL INKJET PRINTERS
-
Yaomatec Maunfacture Handheld Printer 50.8mm Expiry Date Industrial Hand Inkjet Printer
-
Yaomatec Manufacture Handheld Printer 10CM Industrial Inkjet Printer Expiry Date Production Date Printer
-
Yaomatec Maunfacture Handheld Printer 25.4mm Metal Wood Plastic Industrial Inkjet Printer Expiry Date printer
-
Yaomatec Maunfacture Handheld Printer D30 Model English 12.7mm Logo Printer Handheld Inkjet Expiratio
Product Details
| Condition: | New | Plate Type: | Screen Printer | Place of Origin: | Guangdong, China |
| Brand Name: | Pheatoon | Model Number: | UD-3286Q | Usage: | Other, Large format advertisment printing |
| Automatic Grade: | Automatic | Voltage: | AC110v, 50HZ/60HZ | Gross Power: | 2000w |
| Dimensions(L*W*H): | 4950mm*1150mm*1600mm | Weight: | 582kg | Certification: | CE Cetification |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1, Big Discount!Best quality and after-service.
2,Welcome to jion our working team ,you will find that we are the same channel !!
We will provide you
1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service
1,Features of Pheaton UD 3286Q large format printer with 508GS pinthead
1, Equipped with 6 SPT 508GS printhead
2, AC servo motor is used to run the carriage quicker and more stable.
3, Individual color cleaning minimizes the waste of the ink;
4,3 way intelligent heater (pre/print/post) helps bring more vivid output
2,Techinical Data From Pheaton UD 3286Q large format printer with SPT508GS pinthead
Printhead SII Printek Inc. | SPT508GS | ||
Number of printhead | 6 Heads | ||
Output Quantity (m2/h) | Print Mode | Outputs(m2/h) | |
| 91 | ||
| 61 | ||
| 46 | ||
| 31 | ||
| 23 | ||
Max. printing width | 3200mm | |
Max. media width | 3300mm | |
Ink | Type | Solvent or Eco-solvent |
Color | (C,M,Y,K) or (C,M,Y,K,Lc,Lm) | |
Volume | 2 liters main tank | |
Ink supply system | Ink level sensor. Auto-pumping | |
Media | Width | 3300mm |
Type | Banner, vinyl, polyester, etc | |
Feeding System | Single or double feeding bar. (Max weight 80kg) | |
Ph. Cleaning System | Individual color purging | |
Heating System | Back, middle, front, and extra heater. | |
Clamp | Equipped | |
Printhead Height | Adjustable distance from 2mm~6mm. | |
Input Voltage | AC220V,50Hz/60Hz | |
Printer Dimension/Weight | L4,500 x W905 x H1,260mm / 362KG | |
Package Dimension/Weight | L4,650 x W970 x H1,550mm / 582KG | |

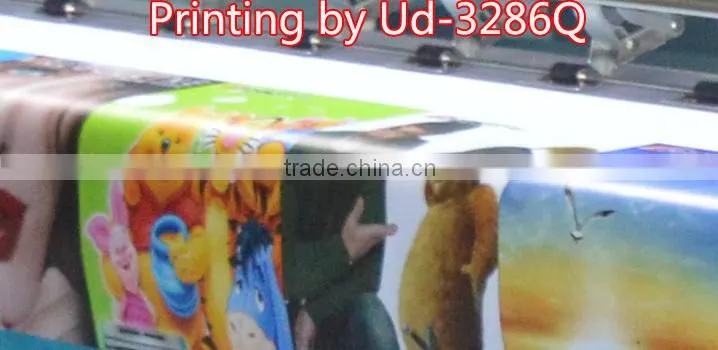

3,Good quality from Pheaton UD 3286Q large format printer with SPT508GS pinthead
4,Pheaton UD 3286Q large format printer with SPT508GS pinthead in my warehouse
5,Export much container Pheaton UD 3286Q large format printer with SPT508GS pinthead to oversea
Welcome to visit the factory you will learn more
