High Speed Flex Banner Printing Machine Made in China With SPT510 Printhead

FOB Price

US$ 5,500 - 13,000 / Set

1 Set(Min. Order)

Port HuangPu(gunagzhou) or Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Screen Printer
Place of Origin	Guangdong, China	Brand Name	Pheatoon
Model Number	UD-3206P	Usage	Other, Large format advertisment printing
Automatic Grade	Automatic	Voltage	AC110v, 50HZ/60HZ
Gross Power	2000w	Dimensions(LWH)	4650mm1100mm900mm
Weight	582kg	Certification	CE Cetification
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Our Services

1, Big Discount!Best quality and after-service.

2,Welcome to jion our working team ,you will find that we are the same channel !!

We will provide you

1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service

Product Description

1,Features of High Speed flex banner printing machine made in china

with SPT510 Printhead

1, Equipped with 6 SPT 510-35PL print heads.

2,Six Color,LM,LC,CYMK

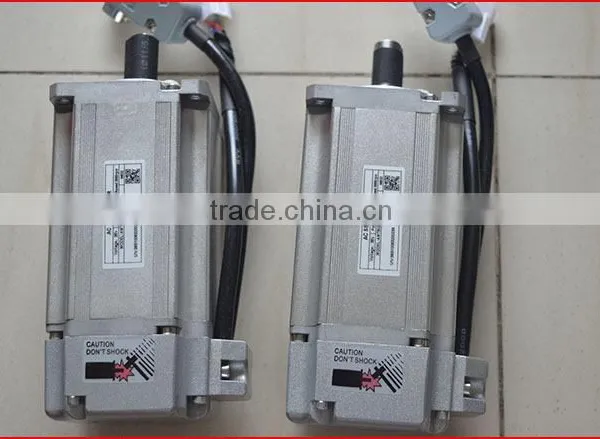

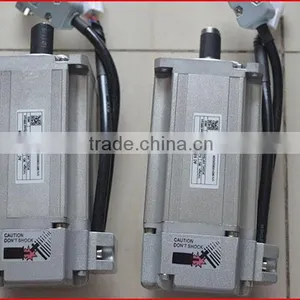

3, AC servo motor is used to run the carriage quicker and more stable.

4, Individual color cleaning minimizes the waste of the ink;

5,3 way intelligent heater (pre/print/post) helps bring more vivid output

3,Techinical data of High Speed flex banner printing machine made in china

with SPT510 Printhead

Printhead SII Printek Inc.	SPT510-35PL
Number of printhead	6 Heads
Maximum print width	3,200mm
Print Speed (m²/h)	Print mode	Standard output(m²/h)
	D	4 PASS 39
	S	6 PASS 27
	Q	6 PASS 18
	HQ	8 PASS 14
	C	-
Ink	Type:	Solvent Ink / ECO Solvent Ink
	Color :	6 Color (C,M,Y,K,Lc,Lm)
	Capacity:	1L or 5L per Main Tank of Each Color
	Ink Supply System	Low Ink Dectector, Auto or Manual Ink Supply System
Media Width	Maximum 3,300mm

Media Type	Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2.0
Printhead Height	2 to 6 mm from Media
RIP Software	Maintop, Ultraprint, Photoprint, Wasatch, Topaz
Input Power	AC 220V, 50Hz/60Hz
Machine Dimension / N.W	L4,500 x W905 x H1,260mm / 362KG
Package Dimension / G.W	4650mm1100mm900mm 582KG

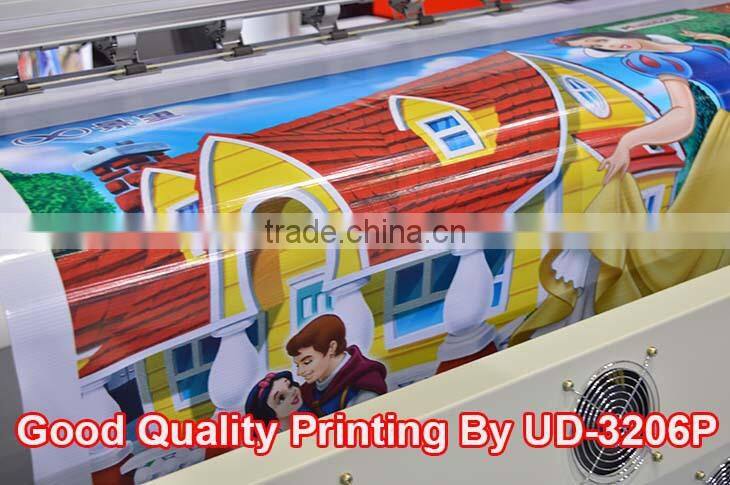

4,High quality output by High Speed flex banner printing machine made in china

with SPT510 Printhead

5, High Speed flex banner printing machine made in china

with SPT510 Printhead in my warehouse

6.Export much container High Speed flex banner printing machine made in china

with SPT510 Printhead to oversea
