New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm)

FOB Price

USD $5,500 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port HuangPu(gunagzhou) or Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Plate Type:	Screen Printer	Place of Origin:	Guangdong, China
Brand Name:	Pheatoon	Model Number:	UD-3286Q	Usage:	Other, Large format advertisment printing
Automatic Grade:	Automatic	Voltage:	AC110v, 50HZ/60HZ	Gross Power:	2000w
Dimensions(LWH):	4950mm1150mm1600mm	Weight:	582kg	Certification:	CE Cetification
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Our Services

1, Big Discount!Best quality and after-service.

2,Welcome to jion our working team ,you will find that we are the same channel !!

We will provide you

1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service

Product Description

1,Features of New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm)

1, Equipped with 6 SPT 508GS printhead

2, AC servo motor is used to run the carriage quicker and more stable.

3, Individual color cleaning minimizes the waste of the ink;

4,3 way intelligent heater (pre/print/post) helps bring more vivid output

2,Techinical Data Of New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm)

Printhead SII Printek Inc.

SPT508GS

Number of printhead

6 Heads

Output Quantity (m²/h)

Print Mode

Outputs(m²/h)

Draft

2Pass

Standard

3Pass

Quality

4Pass

High Quality

6Pass

Back-lit

8Pass

Max. printing width	3200mm
Max. media width	3300mm
Ink	Type	Solvent or Eco-solvent
	Color	(C,M,Y,K) or (C,M,Y,K,Lc,Lm)
	Volume	2 liters main tank
	Ink supply system	Ink level sensor. Auto-pumping
Media	Width	3300mm
	Type	Banner, vinyl, polyester, etc
Feeding System	Single or double feeding bar. (Max weight 80kg)
Ph. Cleaning System	Individual color purging
Heating System	Back, middle, front, and extra heater.
Clamp	Equipped
Printhead Height	Adjustable distance from 2mm~6mm.
Input Voltage	AC220V,50Hz/60Hz
Printer Dimension/Weight	L4,500 x W905 x H1,260mm / 362KG
Package Dimension/Weight	L4,650 x W970 x H1,550mm / 582KG

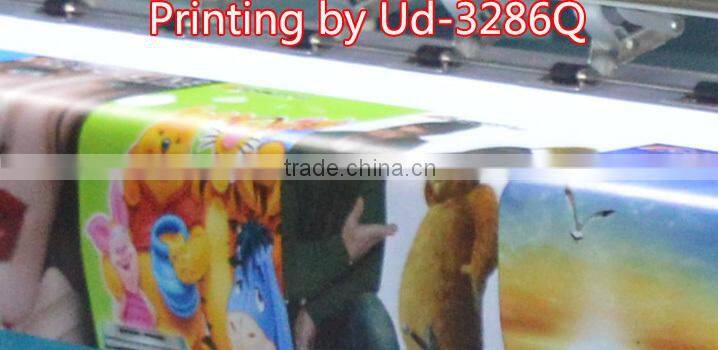

3,Good quality from New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm)

4, New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm) in my warehouse

5,Export much container New UD-3286Q SPT508GS printer with 6 printhead and (C,M,Y,K,Lc,Lm) to oversea
