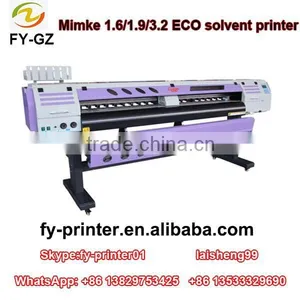

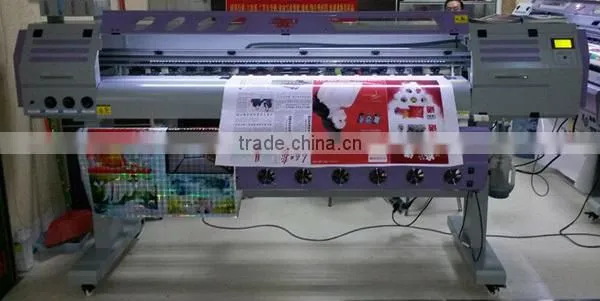

1901 Eco solvent Canvas digital printer
Tichnical data of 1901 Eco solvent Canvas digital printer
1) With one DX5/DX7 print head,180 nozzles/row*8 lines, resolution 1440DPI. 2)Double 4 color C/M/Y/K printing, CISS ink supply system.
3) Hiwin leadrail made in Taiwan,more stable movement of carriage, without sliding noise .
4) Equiped with front and back heating stytem,controled individual.
5) Equiped with platform sucking fans strongly. Dry fans customers optional.
6) Automatic feeding system for roll materials which width max 1.6m.
Model |
Mimke-A1601/A1901/A3202 |
|
Printhead |
DX5/DX7/DX10 Piezo-Electric Prinhead |
|
Number of Printhead |
ONE/TWO |
|
Print Resolution |
1440dpi |
|
Maximum Print Width |
1550mm/1850mm/3200mm |
|
Print Speed |
Draft Model 2pass:36m2/h |
|
Production Model 4pass:30m2/h | ||
Quality Model 6pass:17m2/h | ||
High-resolution Model 8pass:12m2/h | ||
Ink |
Type |
Dye Ink, Pigment ink, Sublimation Ink |
Color |
Double 4 colors(KCMY) |
|
Capacity |
450ml of each ink cartridge |
|
Ink Supply System |
Negative Pressure Continuous Ink Supply System |
|
Media |
Maximum Width |
1550mm/1850mm/3200mm |
Feeding System |
Maximum Weigh 55kg |
|
Take up System |
Optional |
|
Type |
Indoor:PP,PP sticker, Photo paper, Backlit film,PVC . Outdoor:PVC sticker,Banner,ECO-solvent all meterial |
|
Printhead Height |
Adjustable |
|
Printhead Clean |
Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function |
|
Driver System |
Leadshine810 High Accuracy Driver |
|
Heating System |
Tri-stage Heating System Control By PID Temperature Control System |
|
Drying System |
External Drying Fan (Optional) |
|
Language |
ChineseEnglish |
|
Operation System |
WindowsXPWin7 32 bitWin7 64 bit |
|
Print Interface |
100M/Network Interface |
|
Compatibility |
Support LAN Print |
|
RIP Software |
MainTop 5.3photoPRINTwasatch |
|
Working Enviroment |
Temperature:18°- 35° Humidity:35RH - 65RH |
|
Power Supply |
AC_110V/220V, 50/60HZ |
|
Power(W) |
Stand-by Power 32W,Maximum Power 1500W |
|
Noise |
Stand-by<32dB ,Working<65dB |
|
Machine Dimension |
2350mmx810mmx1260mm(LxWxH) 2520mmx870mmx1278mm(LxWxH) |
|
Package Dimension |
2510mmx810mmx1260mm(LxWxH) 2810mmx870mmx1278mm(LxWxH) |
|
Package Weight |
200KG /230kg |
|
Welcome to visit the factory,you will learn more.
Original sk4 ,Galaxy dx5 ,UV ink
Our customers from
Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia
South America: Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,
North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras
European :Poland ,France , Spain , Russia, Portugal .....
Asia :Fiji , Iraq , Afghanistan , Saudi Arabi ,UAE , the Philippines , Bangladesh Thainland ...
For more information ,please feel free to contact as following:
skype: fy-printer01 laisheng99
whatsApp:+86 13829753425 +86 13533329690
