Help CenterHigh Quality FY-Union Digital Printer Challenger FY-3278N Solvent Printer
Related Products
-
Challenger Infinity Wide Format Solvent Printer FY-3208US$ 4,800 - 12,500MOQ: 1 Set -
FY-Union Digital Printer Challenger fy 3278n Solvent Printer(8 SPT 510 50pl Heads,4 Color,high Quanlity)US$ 3,000 - 13,000MOQ: 1 Set
-
4/8PCS SPT510 Head Large Format Tarpaulin Printer, Challenger/Infiniti FY-3208RUS$ 4,800 - 12,500MOQ: 1 Set
-
Infiniti/Challenger FY-3278N 3.2m Multicolor Solvent Plotter (spt510 Head,high Quality)US$ 3,000 - 13,000MOQ: 1 Set
-
High Quality Spt 510-35pl PRINTHEAD 4*8 Spt Printhead 3208Q Challenger fy 3206s Solvent PrinterUS$ 4,800 - 12,500MOQ: 1 Set
1,Big Discount!Best quality and after-service.
2,Welcome to jion our working team ,you will find that we are the same channel !!
We will provide you
1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service
High quality FY-Union digital printer challenger FY-3278N solvent printer
Some important parts from High quality FY-Union digital printer challenger FY-3278N solvent printer
Good quality printing from High quality FY-Union digital printer challenger FY-3278N solvent printer
Tichnical data of High quality FY-Union digital printer challenger FY-3278N solvent printer

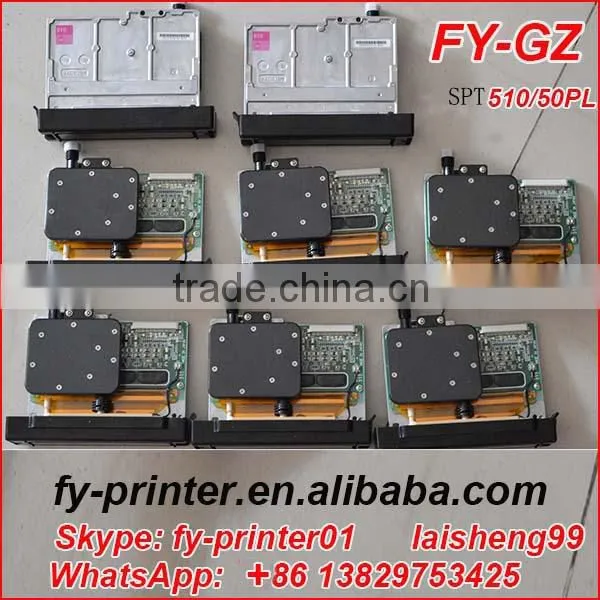

1, Equipped with 8 SPT 510-50PL print heads
2,Fast printing speedy,157m²/hr Draft 2Pass
3, AC servo motor used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output
Model |
FY-3278N |
|
Print Head |
Drop on demand Piezo Head |
|
Number of Printhead |
8 Heads |
|
Maximun Print Width |
3200mm(125.98") |
|
Print Speed |
Standard |
2Pass 157Sqm/hr |
quality |
3Pass 109Sqm/hr |
|
High Quality |
4Pass 70Sqm/hr |
|
Media |
max.width |
3300mm(129.92") |
Max. Weight |
80kg |
|
Type |
Frontlit,Backlit,Vinyl,Polyester,Window Film, Leater… |
|
thickness |
4mm(Max) |
|
Heating System |
3 way intelligent heater |
|
Auto Media Feeding&Take-up System |
Equipped |
|
Ink |
Type |
Solvent ink (C,M,Y,K) |
Capacity |
1L or 5L per Color Main Tank |
|
Auto Cleaning System |
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System |
|
Print interface |
USB2.0 |
|
Power Specification |
220V/230V 50Hz/60Hz Printer:660W Heater:1900W |
|
Operational Environment |
Temperature:20℃-28℃ Humidity:40%-60% |
|
Compatible RIP Software |
Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop |
|
Dimension&Weight |
Machine |
L4600mm×W970mm×H1290mm 405kg |
Package |
L4930mm×W1140mm×H1620mm 692kg |
|
High quality FY-Union digital printer challenger FY-3278N solvent printer in my warehouse
Export much container High quality FY-Union digital printer challenger FY-3278N solvent printer to oversea
Welcome to visit the factory you will learn more.
Original sk4 ,Galaxy dx5 ,UV ink
Some More parts from our comapny
Our customers from
Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia
South America: Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,
North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras
European :Poland ,France , Spain , Russia, Portugal .....
Asia :Fiji , Iraq , Afghanistan , Saudi Arabi ,UAE , the Philippines , Bangladesh Thainland ...
For more information ,please feel free to contact as following:
skype: fy-printer01 laisheng99
whatsApp:+86 13829753425 +86 13533329690
