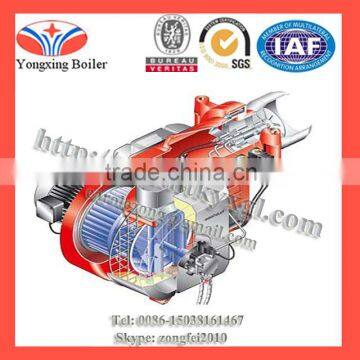

Ingle Stage Light Oil/diesel Burner

Specifications

I. Features:
1) Double section operation (big / small flame)
2) Can be adapted for use with any type of burning chamber
3) Mechanical pressure atomization.
4) Changing the volume of air and the combustion head provides the best burning parameters.
5) Can directly remove the atomization device without disassembling the burner from the oven or boiler, thus ensuring covenient mantenance.

6) When using bio-diesel (vegetable oil as raw material), the burner needs to be equipped with an extra hose, linear filter and oil pump.

7) A flange and insulation sealing washer connect to the boiler, which is equipped with two hose, a linear filter and nozzle.

8) We can offer a longer combustion head if required by clients.
9) A hydraulic regulator is used to adjust air flux in the first and second sections, and is collocated to avoid heating loss at the time of stopping.

10) Electrical protection grade of standard collocation is IP40, with this grade able to be enhanced if necessary.

II. Advantages :

1) Technical characteristics.

2) Operational reliability.

3) Every part is easy to dismounting.

4) High efficiency for maintenance ,cleaing and checking.

5) Main part import of famous brand.

III. Performance:

1) Unify design burner ,aluminium shell.

2) Sliding type flange for exact positioning.

3) Exllent design of burner head to ensure its best burning condition.

4) Electrical installation to protect whole system and safety.

5) Support immediate using.

IV. Technical information:

                                                                                                           Gas fired burner

Range:

Power: 18-10500kw

Heat value: 10000-8400000 kcal/h

Fuel Diesel oil/ waste oil/ heavy oil/ LPG/ natural gas, dual fuels, etc.

Stage: Single/double.

V. Usage:

 It is usage in boiler, fuel hot air furnace, dry oven, baking oven, heat furnace.

VI. Burner operation:

VII. Burner package:

VIII. Boiler burner:

IX. Burner:

x. Certificate:
