Diamond Wire Saw For A Tool
- 50 Set / Sets per Month
- T/T Credit Card
Product Details
| Place of Origin: | Fujian, China | Brand Name: | BESTLINK | Model Number: | BLD-75G/BLD-55G/BLD-37M/BLD-37G/BLD-W11Q |
| Material: | Diamond | Type: | Hole Saw | Blade Length: | / |
| Dimensions: | / | Weight: | 0.35tons--3.1tons |
Packaging Details
wooden case or on your request
Product Description

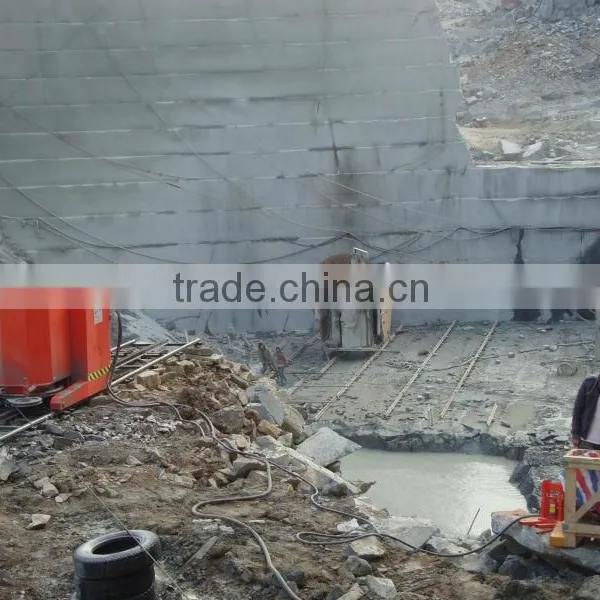

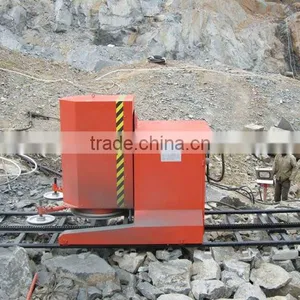

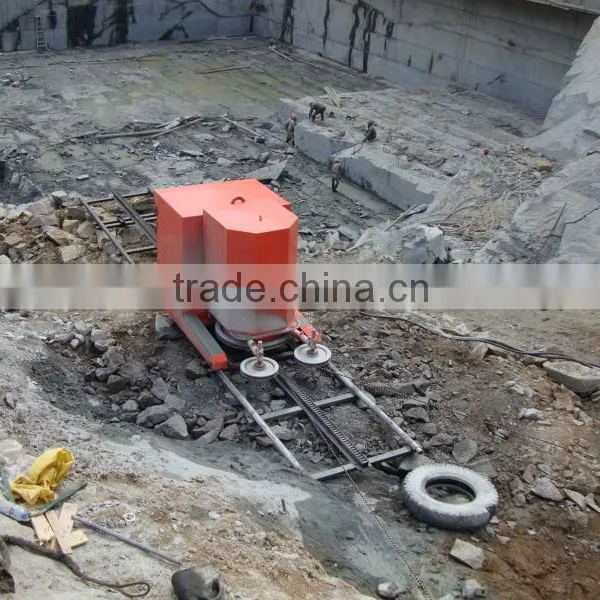

The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.
We designed a series of BLD-W products after fully study the cutting condition and technique of diamond wire saw, it used high quality transducer and PLCto realize automatically, reasonably,timely to adjust the cutting techniques.
Main tecnical data
Tachnical Parameter of Diamond Wire Saw Machine | ||
| BLD-75G | BLD-55G |
Total power | 78.75Kw | 58KW |
Main motor power | 75Kw | 55KW |
Travel motor power | 0.75Kw | 0.75KW |
Rotary cutting head motor power | 1.5Kw | 0.75KW |
Shifting cutting head motor power | 1.5Kw | 0.75KW |
Power supply requirement | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
Cutting head rotation | 360° | 360° |
Shifting distance of cutting head | 480mm | 480mm |
Lateral movement of cutting head | 2000mm | 800mm |
Length of rails | 2m or 3m | 2m or 3m |
Main motor rotate speed | 0~980r/min(bu inverter | 0~980r/min(bu inverter |
Linear speed of drive flywheel | 0~40m/s | 0~40m/s |
Speed of machine traveling | 0~120m/h | 0~120m/h |
Available working temperature | -150°C~+400°C | -150°C~+400°C |
Dimension of the machine(mm) | L=1940,W=1440,H=1485 | L=1925,W=1440,H=1485 |
Weight | 2.5T | 2.2T |
Use for | granite or marble quarry | granite or marble quarry |
BLD-37M | BLD-37G | BLD-W11Q |
40KW | 40KW |
|
37KW | 37KW | 11KW |
0.75KW | 0.75KW | 0.37KW |
0.75KW | 0.75KW |
|
0.75KW | 0.75KW |
|
AC380±10%@ 50Hz | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
360° | 360° | 360°(by band) |
480mm | 480mm |
|
1800mm | 1800mm |
|
2m or 3m | 2m or 3m | 2m |
0~980r/min(bu inverter | 0~980r/min(bu inverter |
|
0~40m/s | 0~40m/s | 0~40m/s |
0~90m/h | 0~120m/h | 0~30m/h(by inverter |
-15°C~+40°C | -15°C~+40°C | -15°C~+40°C |
L=1925,W=1240,H=1430 | L=1925,W=1240,H=1430 | L=12200,W=550,H=640 |
2.1T | 2.1T 0.368T |
|
marble quarrying | granite & marble quarry | block squaring |
Diamond wire rope
Our Diamond Wire Rope has the variety diamond wire, which is for reinforce concrete cutting,granite,sand stone and marble quarring,blocks squaring,profiling,multi-wire slabs cutting.
1) Diamond Wire Saw is one of the most advanced tools for quarrying,block squaring & profiling and concrete cutting. Good cutting result with small slot and high efficiency, is very less breakage ratio when using therefore increase the working lifetime.
2) Compared with traditional way,quarrying by diamond (coated) wire has the advantages of less waste of material,safety,low noice, eco-firendly etc. It is safety when operation and benefit in environmental protection.
3) The diamond wire rope is available to supply different hardness of beads and other length of beads.
| Diameter | Model No. | Fixing Type | Beads/m | Sawing speed | Lifetime | Line speed | Aplication |
| (mm) | (m2/h) | (m2/m) | (m/s) | ||||
| 11.4 | GQR11.4 | Rubber | 40 | 2-5 | 8-15 | 22-26 | granite quarry |
| 11 | MQS11B | Spring | 30 | 8-16 | 15-35 | 33-38 | marble quarry |
| 10.5 | GCP10.5 | Plastic | 40 | 5-10 | 8-13 | 24-28 | block squaring |
| 8.8 | GPP8.8 | Rubber | 37 | 5-10 | 7-11 | 24-28 | profile cutting |
| 7.2 | GMP7.2 | Plastic | 37 | 5-8 | 8-12 | 22-24 | Multi-wire for slab cutting |
Company Profile
Xiamen Bestlink Factory Co., Ltd. is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market. Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products: Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker. We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years. Thank you very much for your support and wish to get your deep interest and be your best partner.
