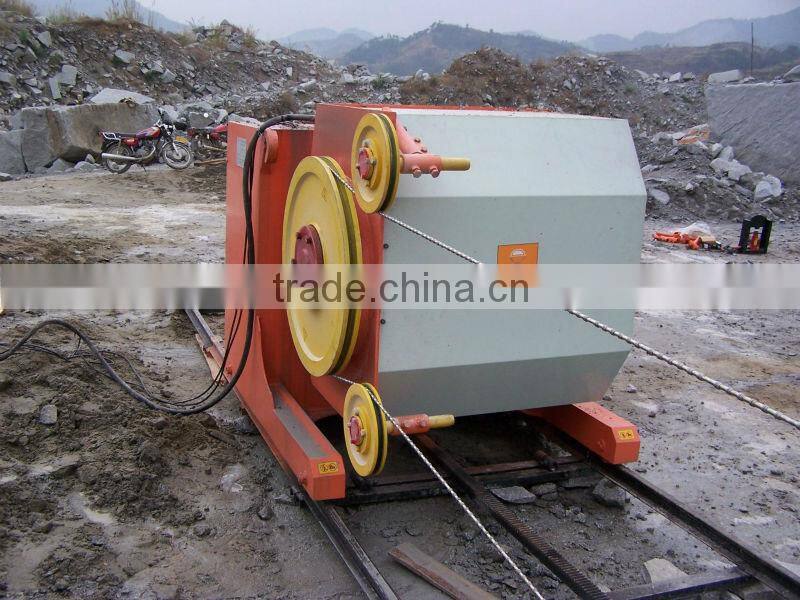

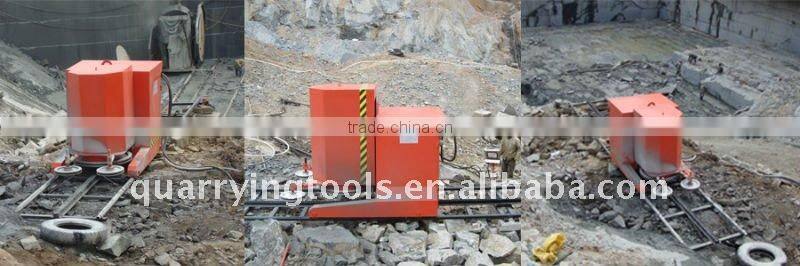

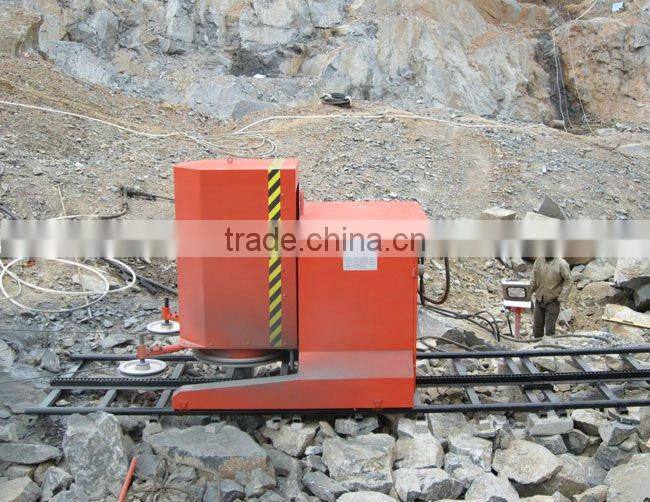

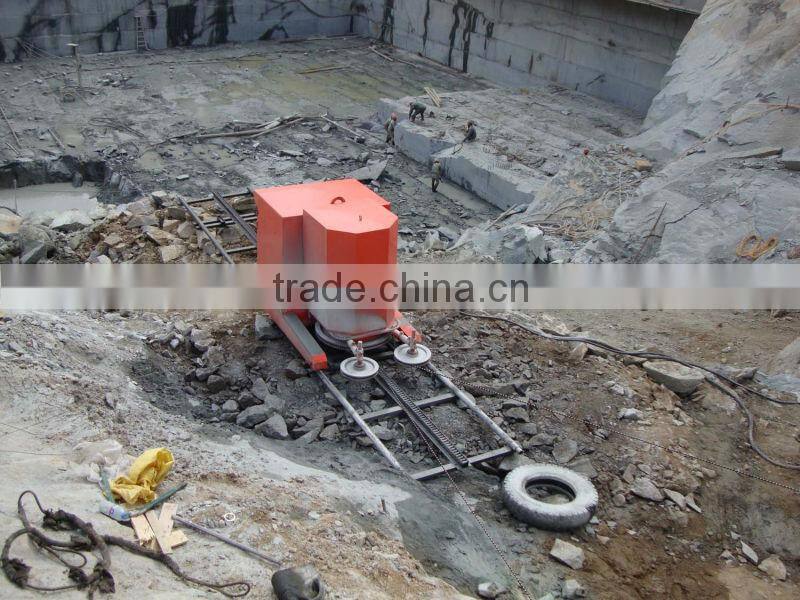

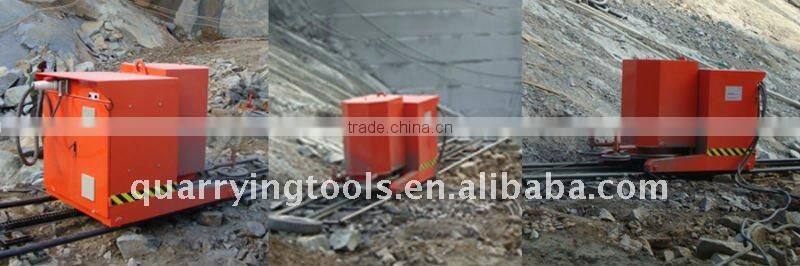

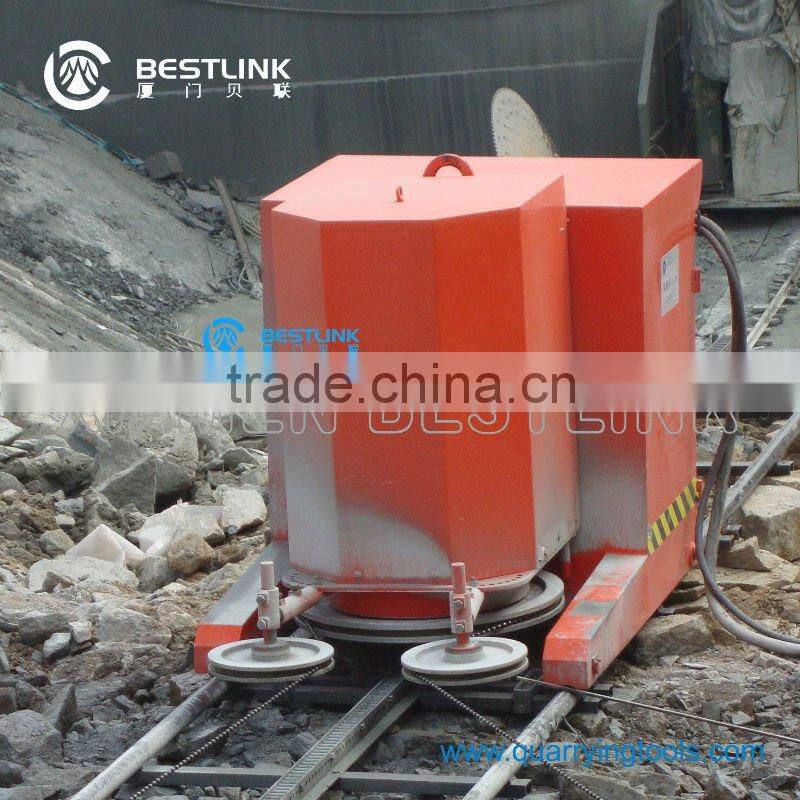

The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.
We designed a series of BLD-W products after fully study the cutting condition and technique of diamond wire saw, it used high quality transducer and PLCto realize automatically, reasonably,timely to adjust the cutting techniques.
Main tecnical data

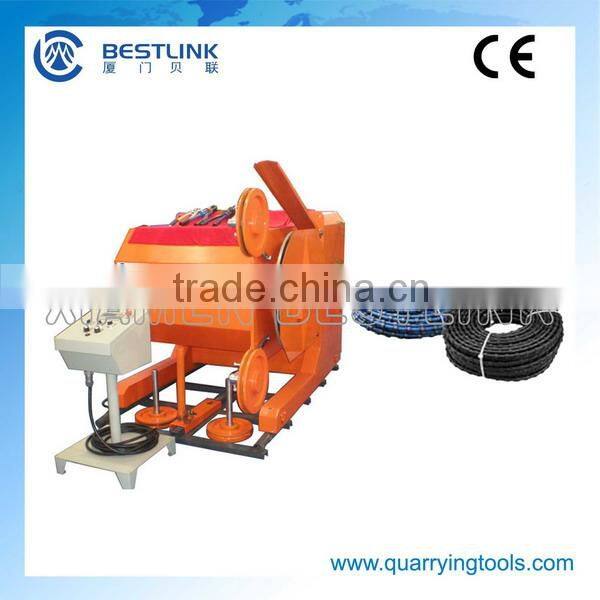

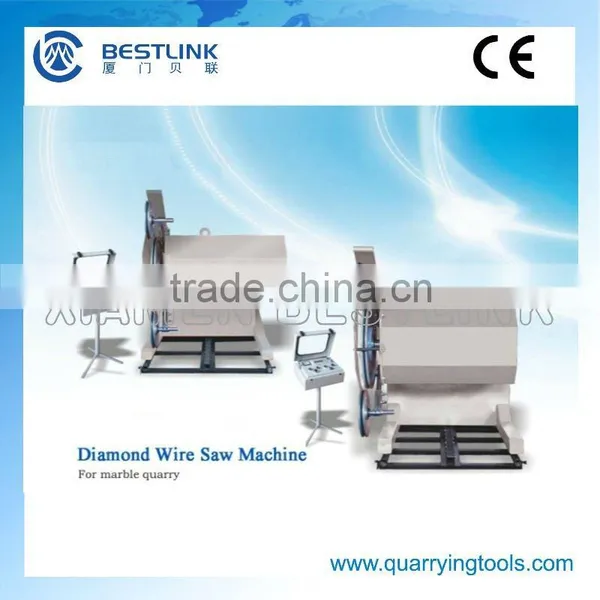

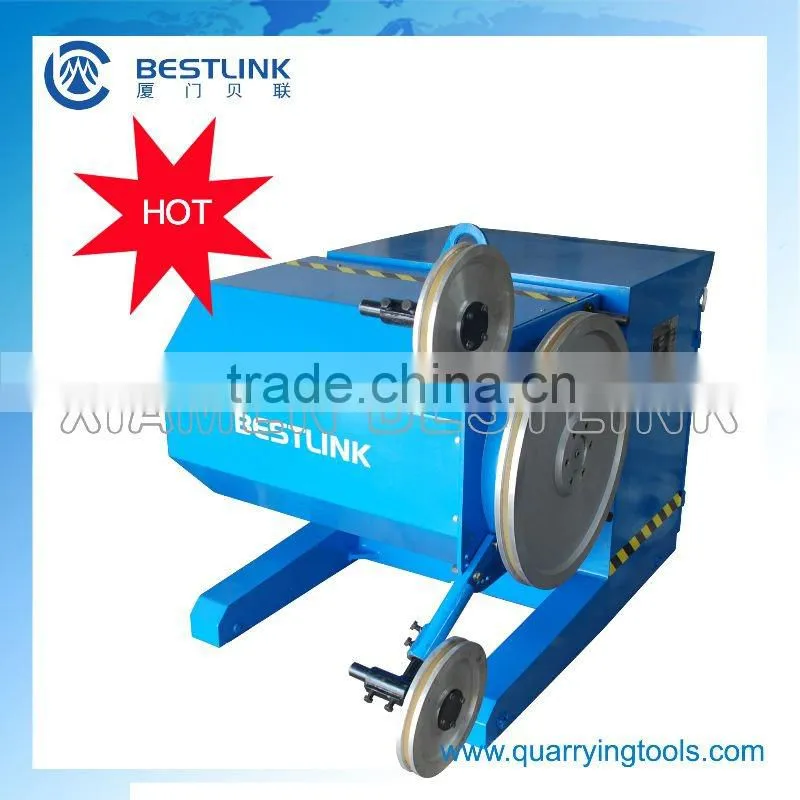

Tachnical Parameter of Diamond Wire Saw Machine | ||
| BLD-75G | BLD-55G |
Total power | 78.75Kw | 58KW |
Main motor power | 75Kw | 55KW |
Travel motor power | 0.75Kw | 0.75KW |
Rotary cutting head motor power | 1.5Kw | 0.75KW |
Shifting cutting head motor power | 1.5Kw | 0.75KW |
Power supply requirement | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
Cutting head rotation | 360° | 360° |
Shifting distance of cutting head | 480mm | 480mm |
Lateral movement of cutting head | 2000mm | 800mm |
Length of rails | 2m or 3m | 2m or 3m |
Main motor rotate speed | 0~980r/min(bu inverter | 0~980r/min(bu inverter |
Linear speed of drive flywheel | 0~40m/s | 0~40m/s |
Speed of machine traveling | 0~120m/h | 0~120m/h |
Available working temperature | -150°C~+400°C | -150°C~+400°C |
Dimension of the machine(mm) | L=1940,W=1440,H=1485 | L=1925,W=1440,H=1485 |
Weight | 2.5T | 2.2T |
Use for | granite or marble quarry | granite or marble quarry |
BLD-37M | BLD-37G | BLD-W11Q |
40KW | 40KW |
|
37KW | 37KW | 11KW |
0.75KW | 0.75KW | 0.37KW |
0.75KW | 0.75KW |
|
0.75KW | 0.75KW |
|
AC380±10%@ 50Hz | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
360° | 360° | 360°(by band) |
480mm | 480mm |
|
1800mm | 1800mm |
|
2m or 3m | 2m or 3m | 2m |
0~980r/min(bu inverter | 0~980r/min(bu inverter |
|
0~40m/s | 0~40m/s | 0~40m/s |
0~90m/h | 0~120m/h | 0~30m/h(by inverter |
-15°C~+40°C | -15°C~+40°C | -15°C~+40°C |
L=1925,W=1240,H=1430 | L=1925,W=1240,H=1430 | L=12200,W=550,H=640 |
2.1T | 2.1T 0.368T |
|
marble quarrying | granite & marble quarry | block squaring |
Disponible español e inglés(spanish and English available)
