The Vibratory finishing machine is used for marble, granite, limestone, mosaic stone and sandstone processing to antique and aged looking stone. It can be divided into rotary type and linear type.

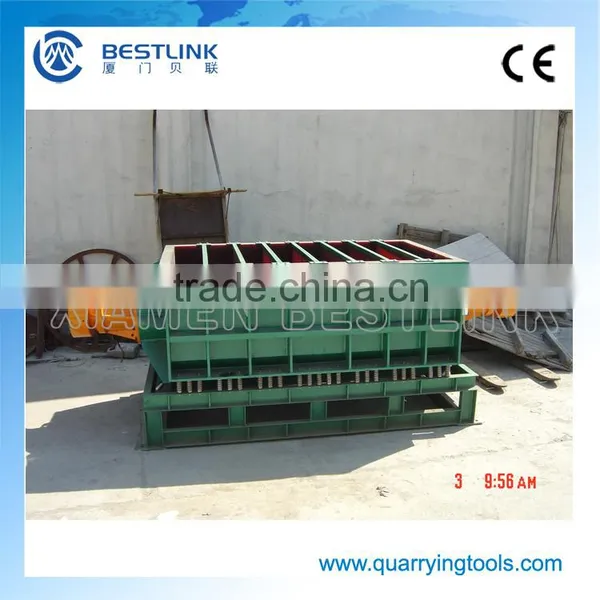

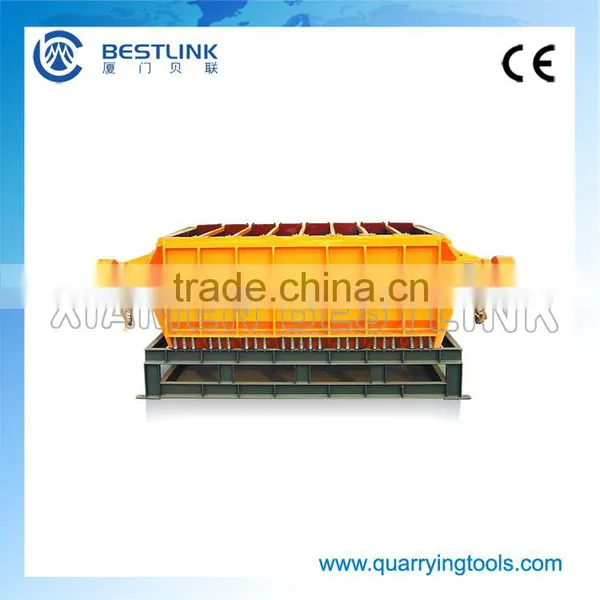

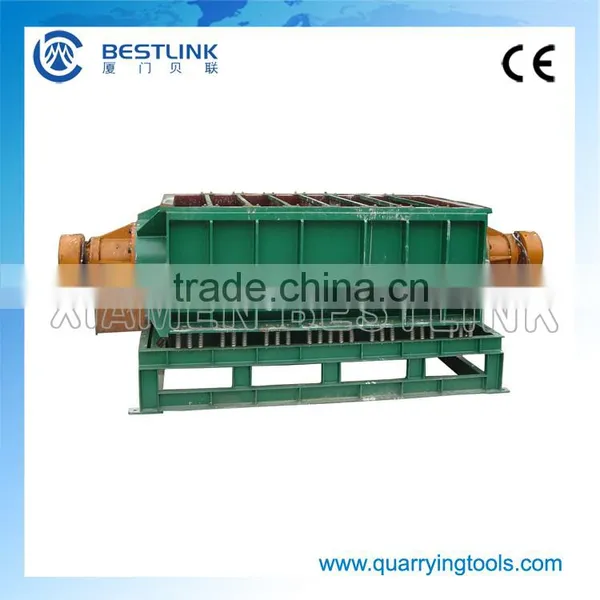

Linear type vibration machine
Pieces size: from 30*30cm to 90*60cm.
Main Structure and Working priciple

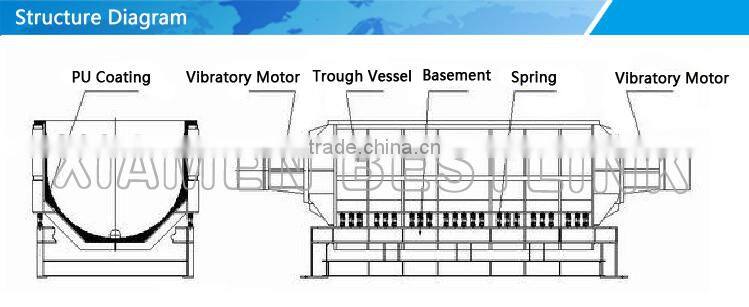

The linear type of vibratory polisher BV-T series consists of a vibratory motor, a trough vessel, pedestal springs and basement. The vibratory motor is connected with the vessel by means of bolts and then together they are installed on the compression springs linked to the basement.
The polishing process of the linear type vibratory polisher is a kind of vibratory grinding process in which the parts to be processed are put in the vessel where there are polishing abrasive pieces and grinding compound mixed by certain ratio. The regular vibration of the vessel causes a relative grinding movement between the abrasive pieces and the parts, thus removing the burrs from the parts, and at the same time rounding the sharp edges and polishing the surfaces of the parts.
Application:
The Antiqued surface ageing machine is mainly used for processing engine housing, engine shell, marble sheets and chassis parts etc, including removing burrs and rust, rounding and polish-processing, especially suitable for polish-processing of parts with complicated and irregular cavities. After processing, not only there is no damage to the original shape or precision of dimensions of the processed parts, but also the precision of the roughness of the processed parts can be raised 1 to 2 grades.
This surface ageing machine is suitable for the surface polishing of large quantity and batch of medium and large-sized parts.
Features:

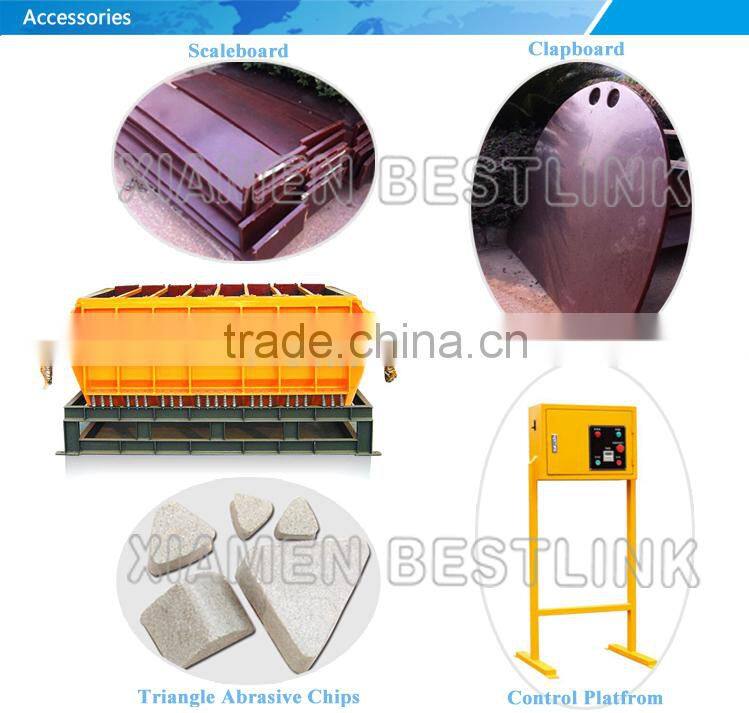

1. Apply dividing bulkheads to create independent treatment areas inside the tank, possible to process delicate components or components of different lots.
2. Realizing semi-automation through electronic contolling system and greatly improve work efficiency in stone surface finishing.
3. Steel vibrating rank lined with polyurethane.
4. Two vibrating motors fixed sideways, equipped with adjustable weights, providing stable vibratory force.
Specification:
| Model | BV-T1800 | BV-T2800 |
| Motor power | 7KW | 9KW |
| General power | 2*7KW | 2*9KW |
| R.P.M | 1500 | 1500 |
| Net volume | 1750L | 2750L |
| Dimension (L*W*H) | 3500*1300*1200 (mm) | 3300*1830*1740 (mm) |
| Weight | 2800 | 4000 |
| Max processing size | 60*60cm | 90*60cm |

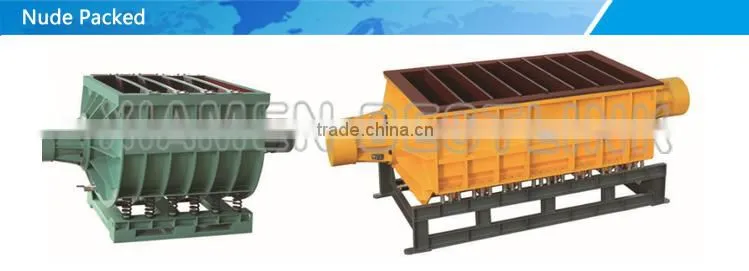

This Surface ageing machine is in nude packed usually, or it can be packaged according to client's request.
Xiamen Bestlink Factory Co., Ltd. is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
1. Our factory has been specialized in manufacturing drilling and cutting machine and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 36 year’s professional working experience.
4. Main Market: Brazil, Chile, Colombia, Uruguay, Australia, Ukraine, Ruassia, Norway, Turkey, USA, Canada, Iran, Malaysia, Thailand, India, etc.
The information you may like to know before order:
1. Methods of Payment
T/T (Telegraphic Transfer) or Western Union or L/C at sight.
2. Delivery Time
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request model and size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1) Our sales team will response for your question within 24 hours (Holidays Excluded)
2) Technical Support will be available in any time.
