1.Product description
Tricone bit is Widely used in borehole water well drilling,oil,gas well and mining projects.It mainly divided into steel tooth and TCI,diameter from 3 inch to 28 inch.
Generally,steel tooth tricone bit mainly used for soft rock formation drilling,our steel tooth tricone bit IADC code includes 126,127,136,217,etc.TCI tricone bit is mainly used for hard rock drilling (rubber sealed bearing type) and very hard rock formation drilling (metal sealed bearing type),our TCI tricone bit includes IADC
437,517,537,547,617,637,etc.
Technical data(metal sealed bearing type) |
|
|||
IADC |
WOB |
RPM |
Applicable Formations |
|
Kn/mm |
r/min |
|||
417 |
0.35-0.9 |
280~70 |
Very soft formation with low compressive strength and high drillability,such as clay,mudstone,gypsum,salt, soft shale,soft limestone,etc. |
|
437 |
|
280~60 |
||
447 |
|
240~60 |
||
517 |
0.35-0.95 |
240~50 |
soft formation with low compressive strength and high drillability,such as mudstone,gypsum,salt, soft shale,soft limestone,etc. |
|
527 |
|
240~50 |
||
|
|
|
||
537 |
0.45-1.0 |
220~40 |
soft to medium formation with low compressive strength and high drillability,such as medium soft shale,edium soft limestone,medium soft sandstone,medium formation with harder and abrasiver inerbeds,etc. |
|
547 |
|
220~40 |
||
|
|
|
||
617 |
0.45-1.1 |
220~40 |
medium hard formation with high compressive strength,such as hard shale,limestone,sandstone,dolomite,etc |
|
627 |
|
200~40 |
||
637 |
0.5-1.2 |
200~40 |
hard formation with high compressive strength,such as shale,limestone,dolomite,hard gypsum,marble,etc |
|

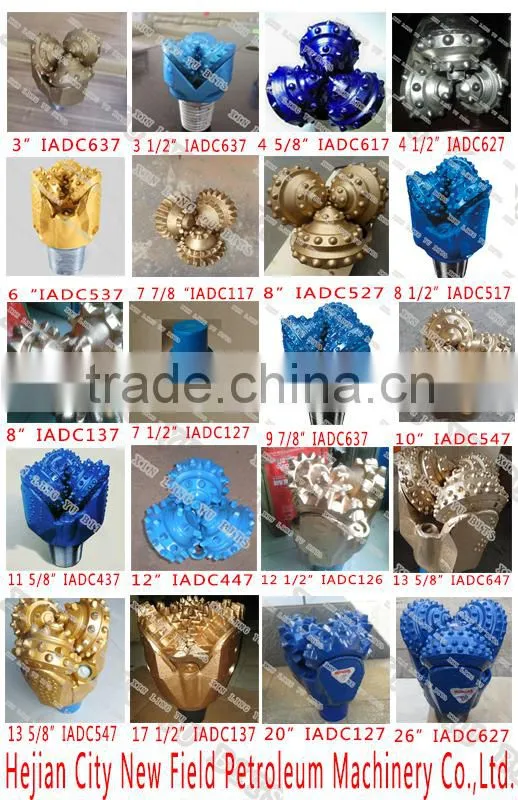

2.Show the figure of the product

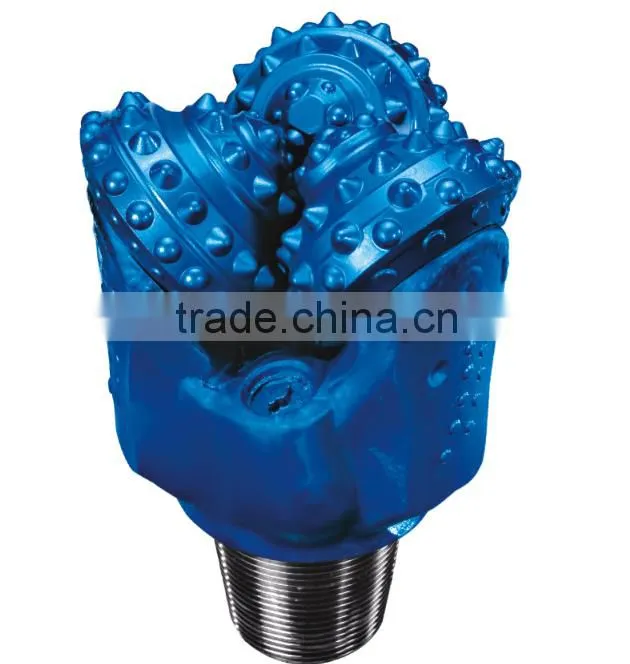

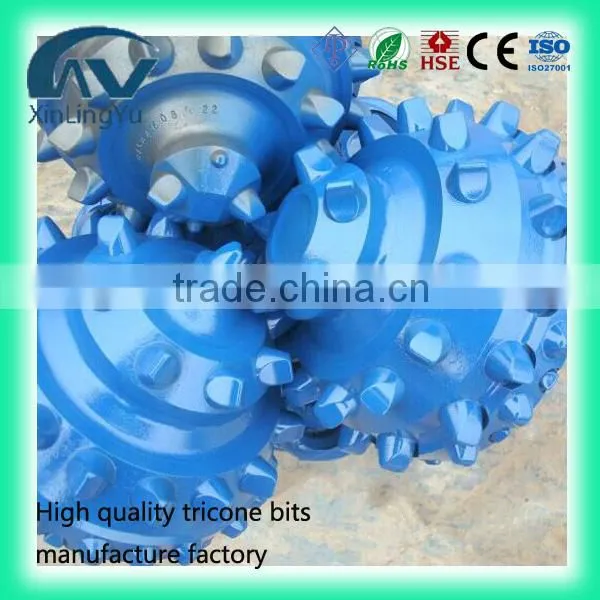

1. insert tricone bit,IADC 517,527.
Cutting structure: Large diameter of partial top row of teeth in the spoon-shaped, wedge-shaped outer rows of teeth. Teeth exposed high, not equidistant cloth teeth in the back bevel gear and the outer row of teeth of a row between the increase in a row trimming teeth.
Applicable formation: soft formation with low compressive strength and high drillability,such as mudstone,gypsum,salt, soft shale,soft limestone,etc.

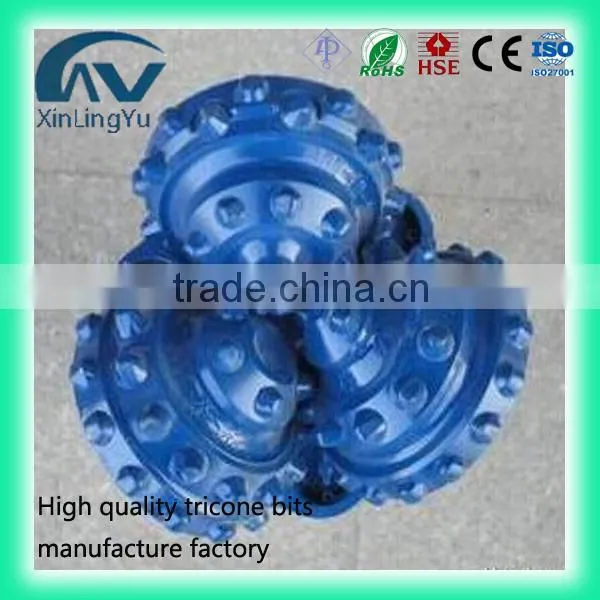

2,insert tricone bit,IADC 537,547.
Cutting structure: A large arc-shaped rows of teeth spoon wedge outer row of teeth. Not equidistant cloth tooth bevel gear in the back of the outer row of teeth between the increase in a row trimming teeth.
Applicable formation: soft to medium formation with low compressive strength and high drillability,such as medium soft shale,edium soft limestone,medium soft sandstone,medium formation with harder and abrasiver inerbeds,etc.
3. insert tricone bit,IADC 617.
Cutting structure: A large arc-shaped spoon row of teeth, spherical outer rows of teeth. Not equidistant cloth tooth bevel gear in the back of the outer row of teeth between the increase in a row trimming teeth.
Applicable formation: medium hard formation with high compressive strength,such as hard shale,limestone,sandstone,dolomite,etc.
Weight: 0.45 ~ 1.1 kN/mm
Drilling rate: 200~50 r/min

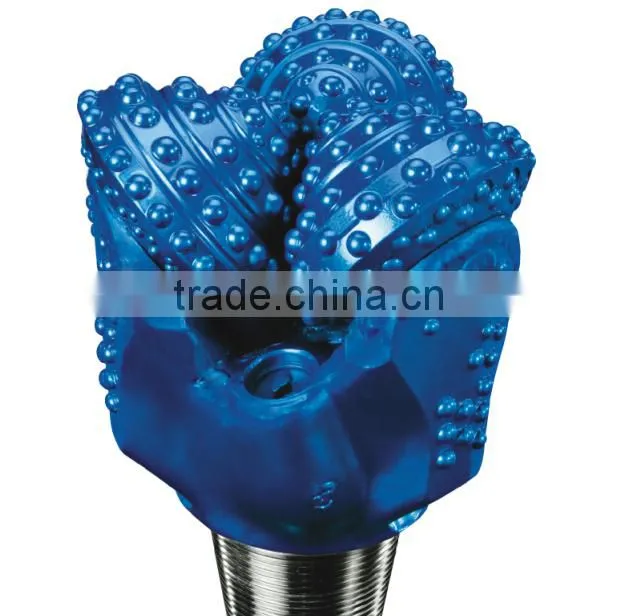

4.insert tricone bit,IADC 627,637.
Cutting structure:Conical inner row of teeth, spherical outer rows of teeth. Between the back bevel and outer row of teeth trimming adds a row of teeth.
Applicable formation:hard formation with high compressive strength,such as shale,limestone,dolomite,hard gypsum,marble,etc.
3.Our service
(1)Supply both steel tooth and TCI tricone bit ,PDC bit.
(2).We have two bit new and renovated,Many sizes in stock.
(3)Our tricone bit is high effiency and long working life.Export to USA and Europe
(4)Fast production for big orders,delivery by sea,air,express.Works on FOB,CFR,CIF
4.More products to recommend
5.The packing and shipping
Packaging Details:fumigation wooden case or steel case as you required
Delivery Detail:3 DAYS
6,FAQ
1. What type tricone bit do you produce?
Answer:Bothe steel tooth tricone bit and TCI tricone bit
2.MOQ
Answer:MOQ is only 1 pcs.Many sizes in stock.
3.What standard is your steel tooth tricone bit and TCI tricone bit
Answer:API,IADC,we ourself have strict production control.
4.Payment terms
Answer:Works on TT, FOB.Pay 30% of the full first, do the deposit, we stock up in advance, after full payment, we delivery.
5.Delivery time
Answer:If you need the quantity, we have in stock, it is the first 30% of the full, we are ready for shipment, after being fully payment, delivery within 48 hours.If demand is big, we are depending on the amount of concrete analysis.
6.The quality of your products
Answer:Our tricone bit is high effiency and long working life.Obey the instructions and operation key points, steel tooth tricone bit normal use is up to 60 hours.
7. Do you have any certification?
Answer:Our drill bit is in line with the American petroleum institute APISpec7 standards, as well as the People's Republic of China oil and gas industry standard Q/JZ. J. 2.API,IADC,we ourself have strict production control.
8. Can you supply us on regular basis if we establish a business relationship with you?
Answer:Yes,We have our own production factory, can quickly produce big order.
9.What is your tricone bit drilling rock formation?
Answer:Our steel tooth tricone bit is suitable to drill soft rock formation;Rubber sealed bearing tricone bit is suitable to drill hard rock formation;Metal sealed bearing tricone bit is suitable to drill very hard rock formation.
