Product Description
Automatic stand up pouch filling and sealing machine, stand up pouch packing machine
Pls feel free contact us, we can provide pictures and video to you. We are factory and manufacture in Beijing, we can provide competive price and high quality machine, good after-sale service.
What is the details of our automatic stand up pouch filling and sealing machine, stand up pouch packing machine ?
This machine is suitable for pre-made pouch stand up pouch filling and sealing with type of pouches for liquid, granule, paster and powder:
1. Solid Species: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, etc.
2. Granule Species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, etc.
3. Powder species: spices, monosodium glutamate, salt, glucose.
4. Liquid Species: rice wine, soy sauce, rice vinegar, etc.
5. Thick liquid Species: tomato sauce, etc.
Auger filler for bag packaging
Solid stand up pouch filling and sealing machine,stand up pouch packing machine suitable for irregular solid fill and seal.Such as nuts,biscuit,raisin,candy,etc.

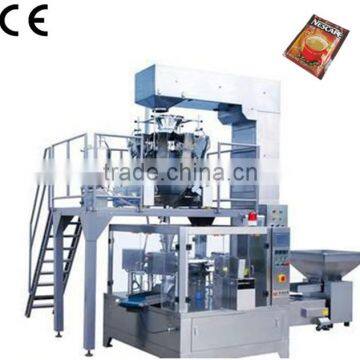

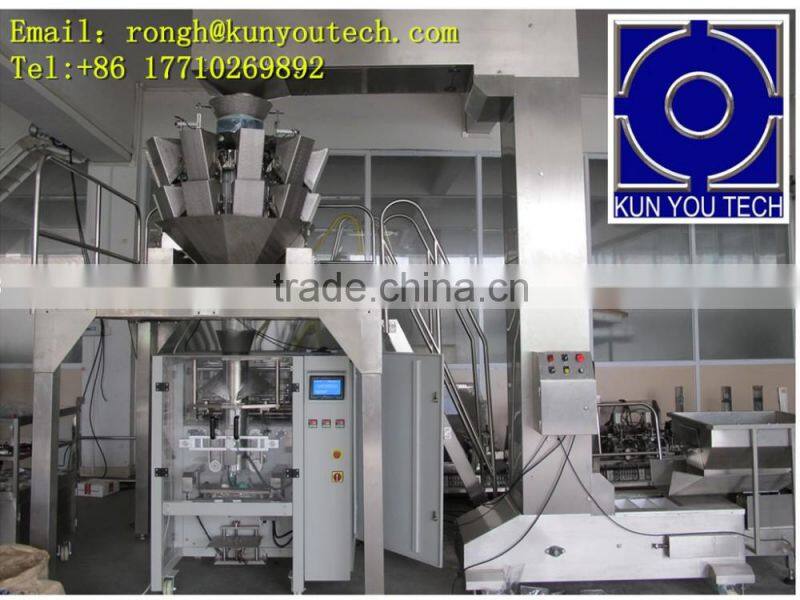

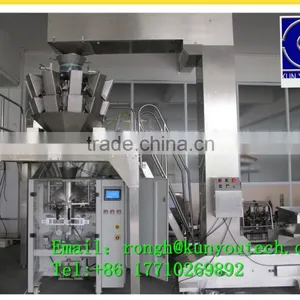

This combination include:
1. One set GD-8-200 stand up pouch packing machine, eight-station.
2. One set multi-Head Combination Weigher (For Granules).
3. One set Z-shape bucket elevator. Applicable for vertical feeding of granule or small block material; All products contact parts are food-grade ABS buckets for sanitary usage; Speed is adjusted by Frequency Converter.
4.One set working platform
What is the technical parameters of automatic stand up pouch filling and sealing machine, stand up pouch packing machine ?
Working Position |
Eight-working position |
|
Pouch material |
Laminated film |
|
Pouch pattern |
Request for pouch with spout: 1) the spout must be parallel to the edge of the pouch; 2) the open part must be 12-15mm higher than the spout; 3) the width of the opening can not be less than 60mm.(not including the sealing edge and the spout) |
|
Pouch size |
W:100-210mm L:100-350mm |
|
Filling scope |
Powder |
100-1000g (can be adjusted) |
Weight Accuracy |
Powder |
Package weight ≤ 100g, with an error≤±2% 100-500g, with an error≤±1% |
Speed |
10-60 pouches/min (The speed depends on the product status and filling weight) |
|
Power source |
220V/380V 3phase 50HZ |
|
Total power |
5 KW |
|
Compress air |
0.6m3/min |
|

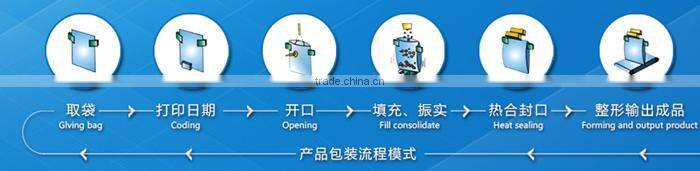

What is the working process of our Shanghai factory price for automatic packing machine/Pouch packing machine/Water pouch packing machine price?
1. Giving bags
2. Date printing
3. Open bags 1st
4. Open bags 2nd (Integrity open the bottom of bag)
5. Filling & Vibrate (Check 1: No bag or bag open error, no filling)
6. Sealing 1st (Or instead of Filling 2nd)
7. Sealing 2nd (Check 2: No bag, no sealing. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm)
8. Forming & Output Product
What is the specifications of Automatic stand up pouch filling and sealing machine, stand up pouch packing machine ?
1)According to client's sepcial requirements, provides the special design;
2)So many optional devices for clients to choose.
3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
5)Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
7)Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
8)The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
8)Use the plastic bearing; don't need put on oil, less pollution.
9)Use no oil vacuum pump; avoid polluting the environment in the production.
10)The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.
Product samples.
