Specifications
1.Portable Automatic Mosaic Cutting Machine
2. For Cutting ceramic tile, sandstone, slate, granite and marble
3 Easy to use.
4.Competitive factory price.
Products Feature
This machine is suitable for cutting polished tiles into high level mosaic with different size,
The cutting size of 10mmx10mm to the min , and any shapes as lozenge or hexagon etc.
And the face chamfer can be finished at the same time , without any extra processing manually.
With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won’t fly out ,with high efficiency and good quality.
Main Technical Data
| 600 TYPE | ||
| Qty of cutting head | 1 head | 2 head |
| Diameter of cutting head | Φ150-300mm | Φ150-300mm |
| Width of processing | 12-600mm | 10-600mm |
| Speed of conveyer belt | 1-5m/min | 1-5m/min |
| Width of conveyer belt | 621mm | 621mm |
| Total power | 16kw | 33.5kw |
| Outer size | 2.2x1.6x1.8m | 2.3x1.8x1.8m |
| Total weight | 1500kg | 1957kg |
| 800 TYPE | ||
| Qty of cutting head | 1 head | 2 head |
| Diameter of cutting head | Φ150-300mm | Φ150-300mm |
| Width of processing | 12-800mm | 10-800mm |
| Speed of conveyer belt | 1-5m/min | 1-5m/min |
| Width of conveyer belt | 821mm | 821mm |
| Total power | 16kw | 33.5kw |
| Outer size | 2.3x1.8x1.8m | 2.5x1.8x1.8m |
| Total weight | 1700kg | 2000kg |
Complete pictures:

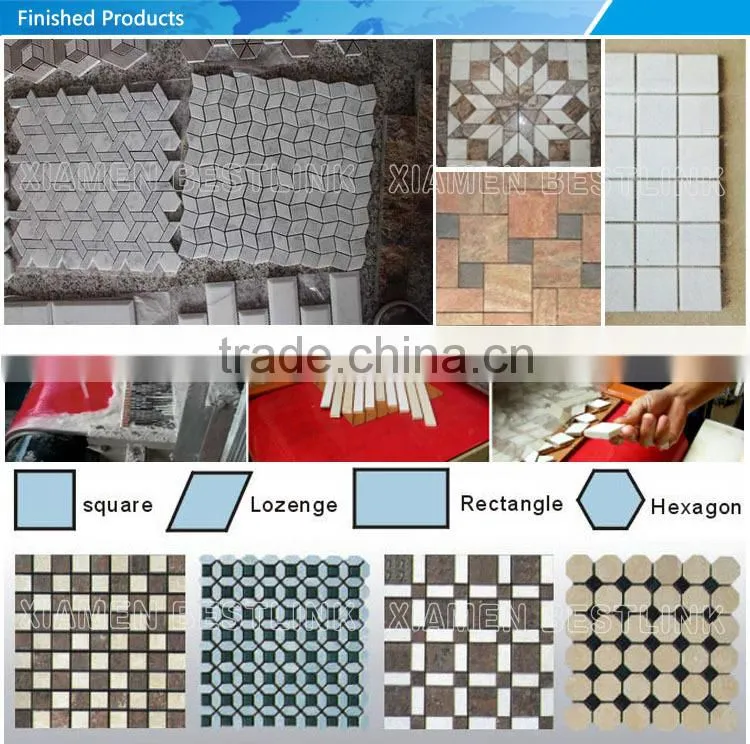

Working Effect Pictures:

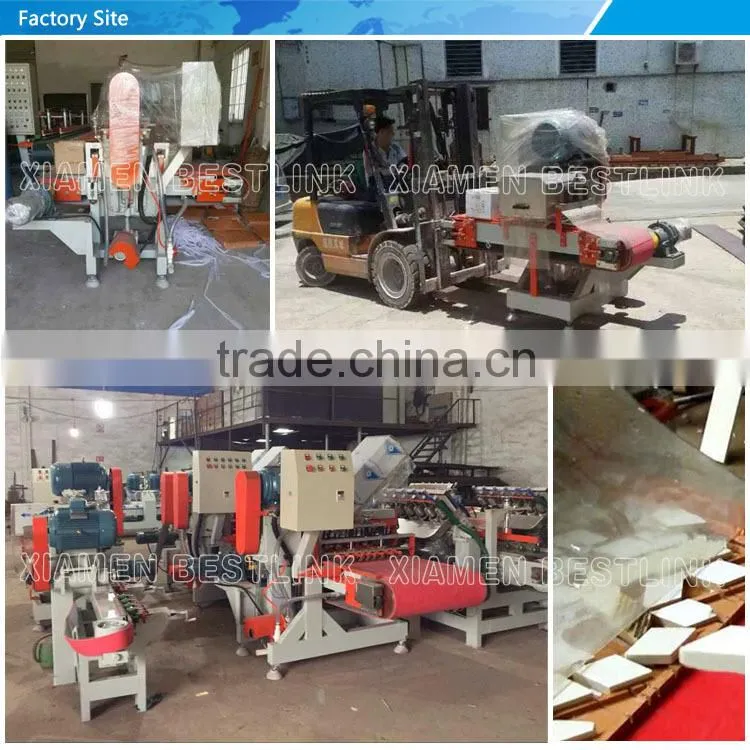

Production Site:

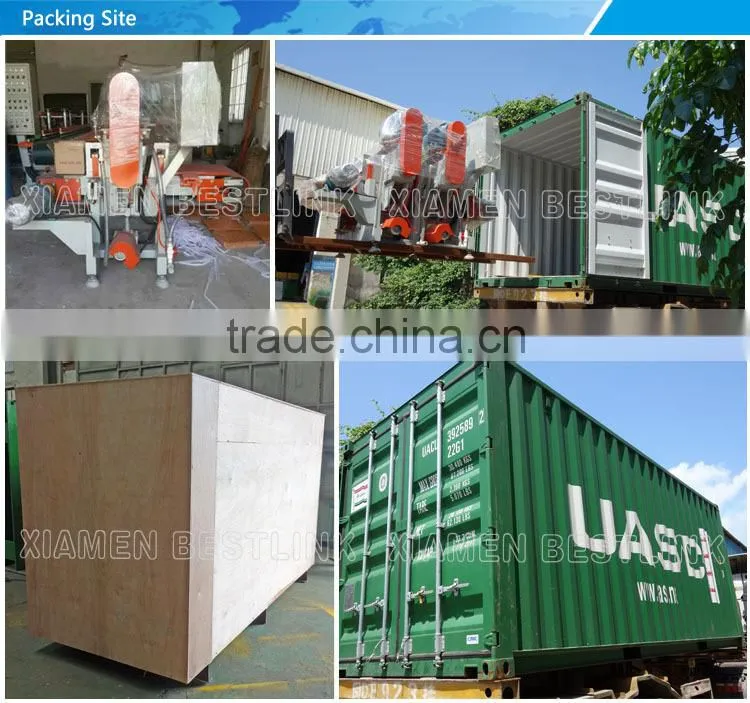

Packing Pictures:
Pls feel free to contact me:
Send Inquiry to This Supplier
