Product Description
Products Features:

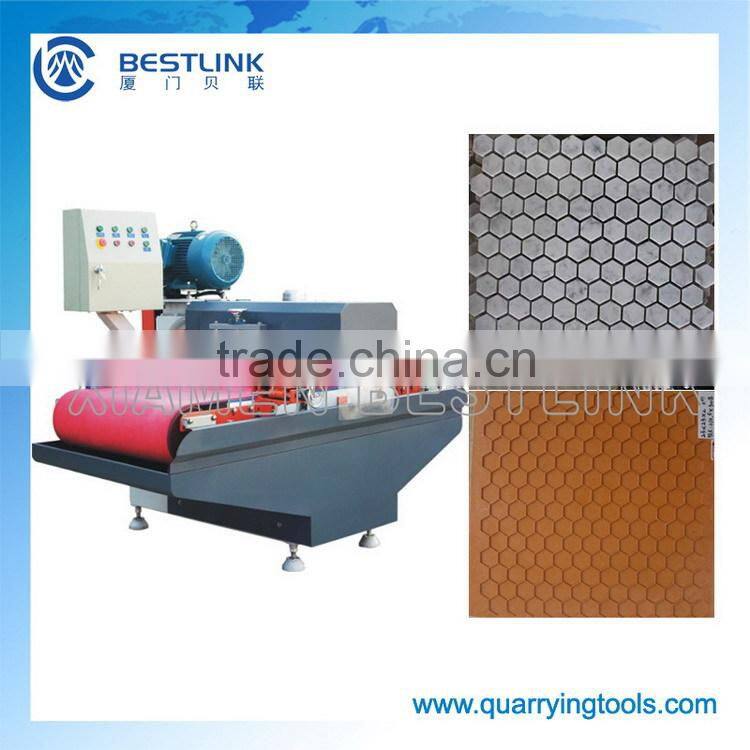

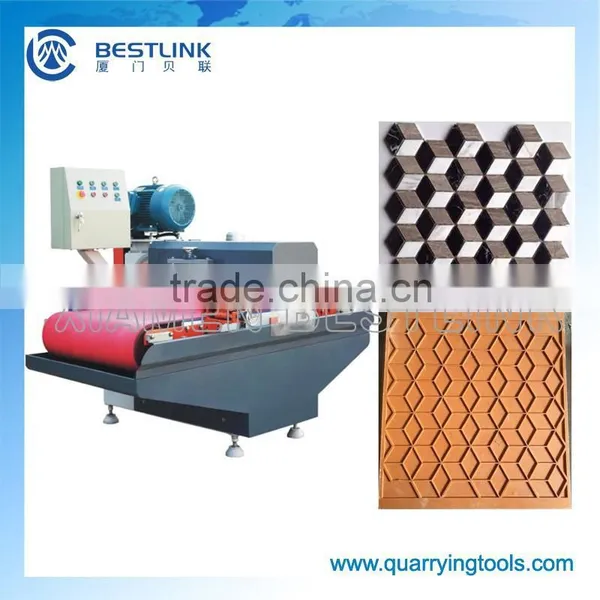

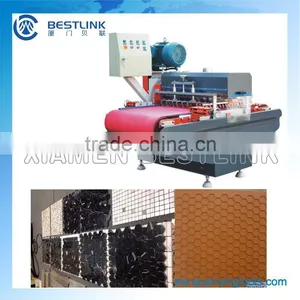

This machine is suitable for cutting polished tiles, ceramic tiles into high level mosaic with different size.
The Min cut size can be 10mmx10mm , and any shapes as strip tile, lozenge or hexagon etc.
And the face chamfer can be finished at the same time, without any extra processing manually.
With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won’t fly out ,with high efficiency and good quality.
Technical Parameters:
600 TYPE | ||
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-600mm | 10-600mm |
Width of Processing Table | 600mm | 600mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 621mm | 621mm |
Total power | 16kw | 33.5kw |
Outer size | 2.2x1.6x1.8m | 2.3x1.8x1.8m |
Total weight | 1500kg | 1957kg |
800 TYPE | ||
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-800mm | 10-800mm |
Width of Processing Table | 800mm | 800mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 821mm | 821mm |
Total power | 16kw | 33.5kw |
Outer size | 2.3x1.8x1.8m | 2.5x1.8x1.8m |
Total weight | 1700kg | 2000kg |

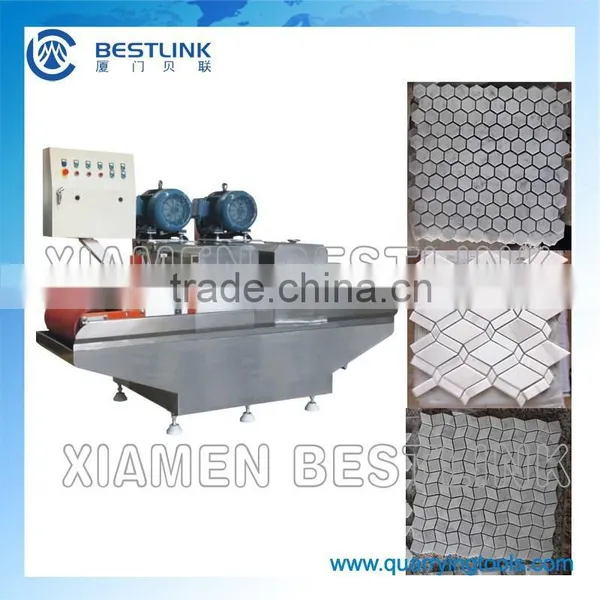

Products Photos:

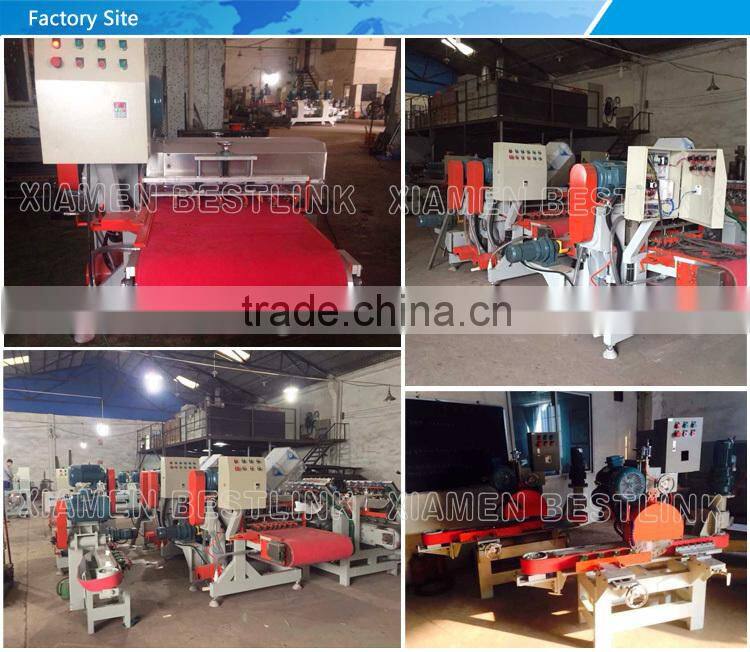

Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
