Place of Origin Fujian, China
Brand Name BESTLINK
Model Number BRT-70T
Dimension(L*W*H) 2370*1500*3840mm
Certification CE
Warranty 1YEAR
Type Other, Rock Splitter
Condition New

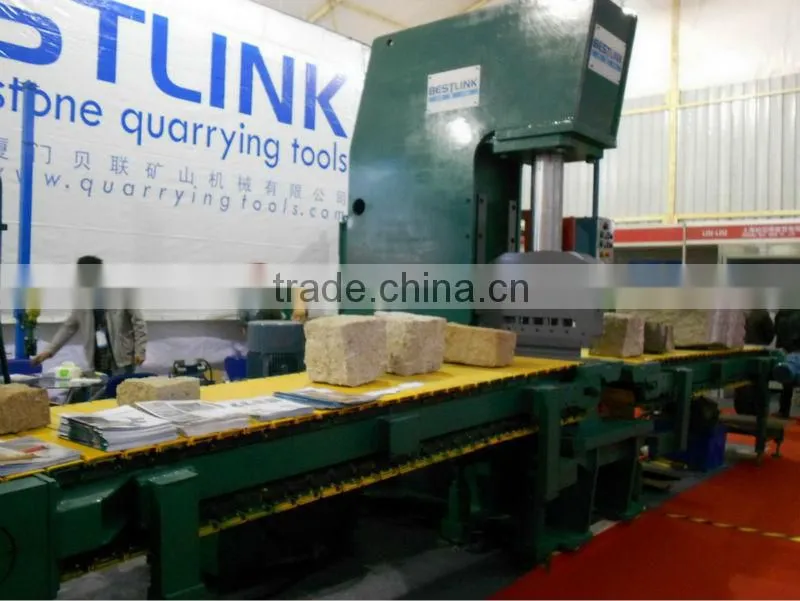

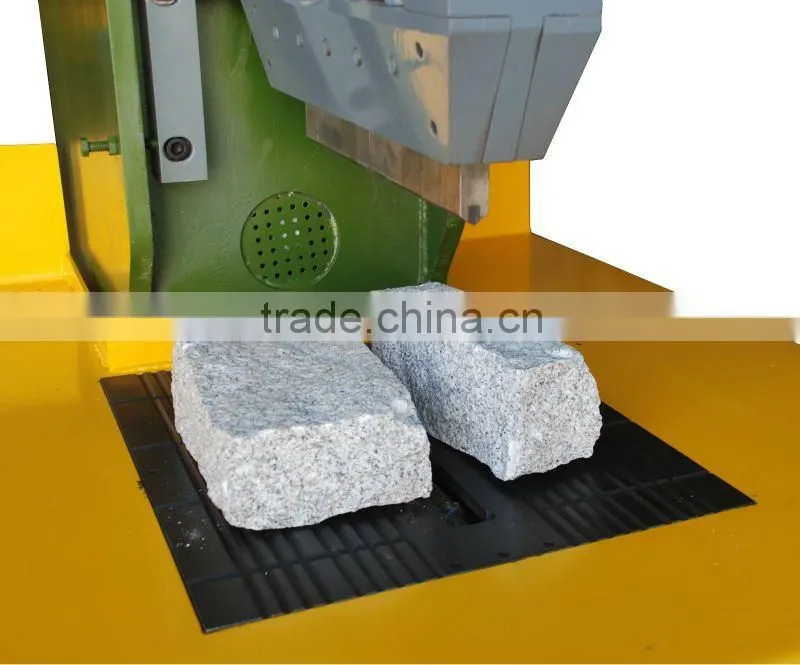

Hydraulic stone cutting machine

Online video of Hydraulic stone cutting machine: /v_show/id_XMjE2MDM4NzI0.html







Hydraulic stone cutting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops. Every splitting machine can be integrated in a production line. It could be especially designed according to your equirements.



The main characters of our hdyraulic stone cutting machines are:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and

through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.

2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient

power to the machine.

3.The motor is Siemens motor. 4.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.

5. We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.



Specification of our Hydraulic stone cutting machine:

Model No. BRT320-1200*800-M BRT160T-500*550 BRT70T-400*350 BRT40T-240*320 BRT20T-160*180
splitting pressure 320T 160T 70T 40T 20T
max.splitting width 1200mm 500mm 400mm 240mm 160mm
max.splitting height 800mm 550mm 350mm 320mm 180mm
adaption of upper/lower blade 36*20mm 30*15mm 20*10mm 15*10 10*7mm
rated power 22KW 15KW 11KW 11KW 7.5KW
rated voltage 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
electric current 42.5A 30A 22.6A 22.6A 15A
main oil cylinder data Φ400/Φ280-850 Φ280/Φ200-600 Φ200/Φ140-360 Φ160/Φ110-340 Φ110/Φ80-200
oli advanced speed 40mm/s 76.6mm/s 108mm/s 167mm/s 96mm/s
overall size(L*W*H) 2370*1500*3840mm 1970*1200*3300mm 1500*1200*2520 1260*1000*2300 1145*1000*2030
weight 8000KG 5300KG 3200KG 2900KG 2300KG
