API 5" TCI Tricone Rock Bit for Oil Well

API 5" TCI Tricone Rock Bit for Oil Well thumbnail-1
API 5" TCI Tricone Rock Bit for Oil Well thumbnail-2
API 5" TCI Tricone Rock Bit for Oil Well thumbnail-3
API 5" TCI Tricone Rock Bit for Oil Well thumbnail-4
API 5" TCI Tricone Rock Bit for Oil Well thumbnail-5
API 5" TCI Tricone Rock Bit for Oil Well thumbnail-6
API 5" TCI Tricone Rock Bit for Oil Well photo-1
API 5" TCI Tricone Rock Bit for Oil Well photo-2
API 5" TCI Tricone Rock Bit for Oil Well photo-3
API 5" TCI Tricone Rock Bit for Oil Well photo-4
API 5" TCI Tricone Rock Bit for Oil Well photo-5
API 5" TCI Tricone Rock Bit for Oil Well photo-6
US$ 200 - 3,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Kingdream, CS, Lilin, Huanyu, Smith and so on
Model Number:
API 5" TCI Tricone Rock Bit for oil well
Contact Supplier Request Quote Chat Now
Hejian New Field Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Kingdream, CS, Lilin, Huanyu, Smith and so on
Model Number API 5" TCI Tricone Rock Bit for oil well
Type Other, drill bit, :tricone drill bit
Material Tungsten Carbide
Use Other, Well Drilling, gas, water and oil well drilling







API 5" TCI Tricone Rock Bit for oil well

1) Condition: 100% new
2) Manufacturer brand name: New Field
3) The exact bit size:5" = 122.5mm
4) IADC code: KN211 steel tooth bit
5) Seal type: non Sealed Bearing
6) Bearing type: Roller bearing
7) Nozzle quantity and nozzle size: 3 nozzles
8) Connection joint Pin size: 7-5/8"
9) WOB:0.35-0.95KN/mm
10) RPM:180-80r/min
11)Applicable Formations:Soft  formations with high compressive strength, such as medium soft
shale, hard gypsum,  medium soft limestone, medium soft sandstone, soft formations with
harder interbed, etc.

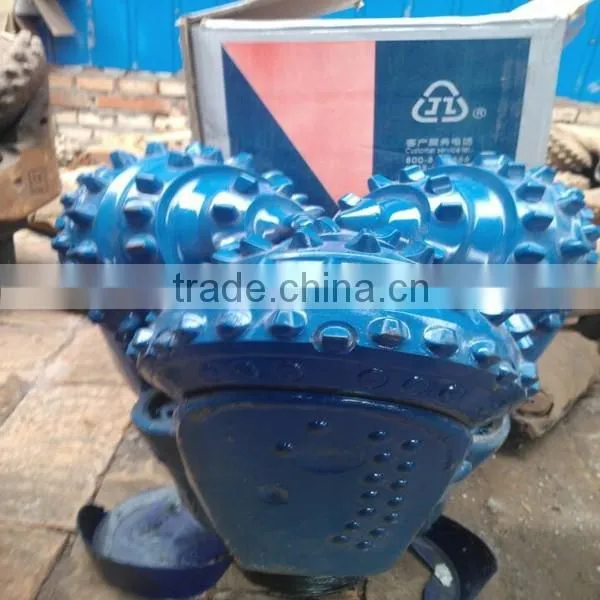

1. Pics

API 5" TCI Tricone Rock Bit for oil wellAPI 5" TCI Tricone Rock Bit for oil wellAPI 5" TCI Tricone Rock Bit for oil wellAPI 5" TCI Tricone Rock Bit for oil wellAPI 5" TCI Tricone Rock Bit for oil well

2.  Size



SIZE

TYPE

PIN SIZE

WEIGHT(ibs.)

4 3/4

IADC517,547

2 7/8

24.2

4 7/8

IADC547

2 7/8

26.4

5 1/2

IADC547

3 1/2

29.7

5 5/8

IADC547

3 1/2

30.2

5 2/3

IADC546

3 1/2

30.8

6

IADC417,447

3 1/2

35.2

6 1/8

IADC547

3 1/2

37.4

6 1/4

IADC517,537

3 1/2

37.4

6 1/2

IADC517,547,817

3 1/2

44

6 3/4

IADC517,537

3 1/2

50.6

7 1/2

IADC517,545,547,625,627,835

4 1/2

66

7 7/8

IADC417,517,527,537,817

4 1/2

72.6

8 1/2

IADC417,435,437,517,535,537,547,625,627,635,745,835,837

4 1/2

81.4

8 3/4

IADC437

4 1/2

88

9 5/8

IADC535

6 5/8

121

9 7/8

IADC517,537,737

6 5/8

127.6

10 5/8

IADC437,535,537,545,547,627,745

6 5/8

167.2

11

IADC617

6 5/8

173.8

11 5/8

IADC535,545,625

6 5/8

198

12 1/4

IADC437,517,535,537,617

6 5/8

204

15 1/2

IADC545,615

7 5/8

440

17 1/2

IADC535,545

7 5/8

594





IADC code

WOB

(KN/mm)

RPM

(r/min)

Applicable Formations

114/115

0.25~0.70

200~80

Very soft with low compressive strength strength and high drillability,

such as soft shale,clay and salt bed,etc

116/117

0.35~0.90

150~80

Hardfaced tooth surface and gage, high cutter exposure and the gage

fitted with compacts

126/127

 0.35~1.0

150~70

Hardfaced tooth surface and gage, high cutter exposure and the gage

fitted with compacts

136/137

0.35~1.05

120~60



Hardfaced gage and all tooth surfaces and the gage fitted with compacts

for enhanced protection

216/217

  0.5~1.20

100~50



Hardfaced gage and all tooth surfaces and the gage fitted with compacts

for enhanced protection

Note: The upper limits of WOB and RPM in above table should not be used simultaneously.






API 5" TCI Tricone Rock Bit for oil well
