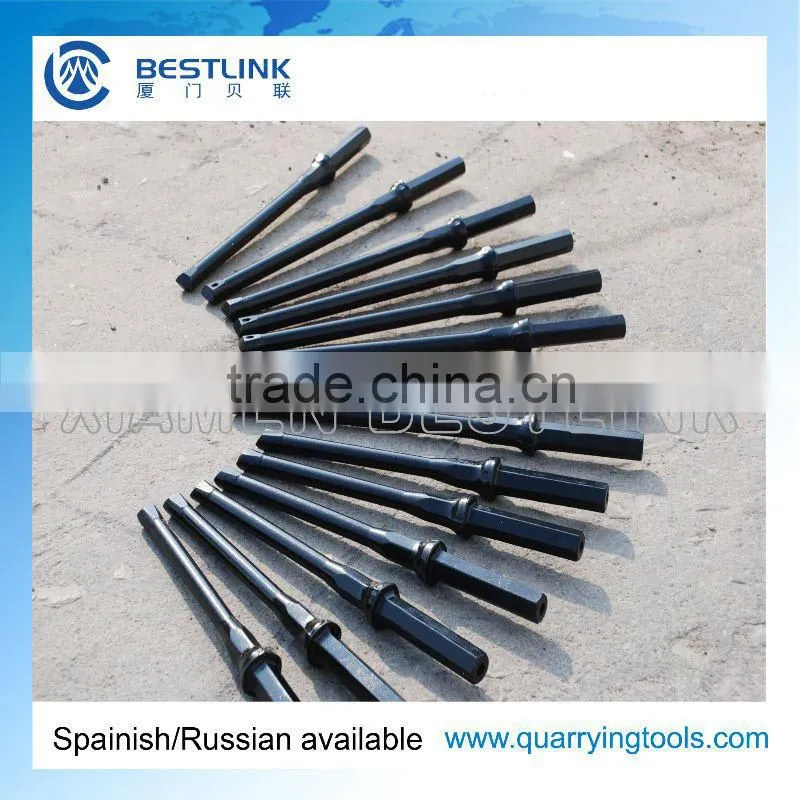

The staff at Bestlink factory has a long traditonal of producing plug hole rod.
plug hole rod are normally produces Hexagon 22*108 Drill Steel,where the dimension given are measured across the flat of the hexagon.

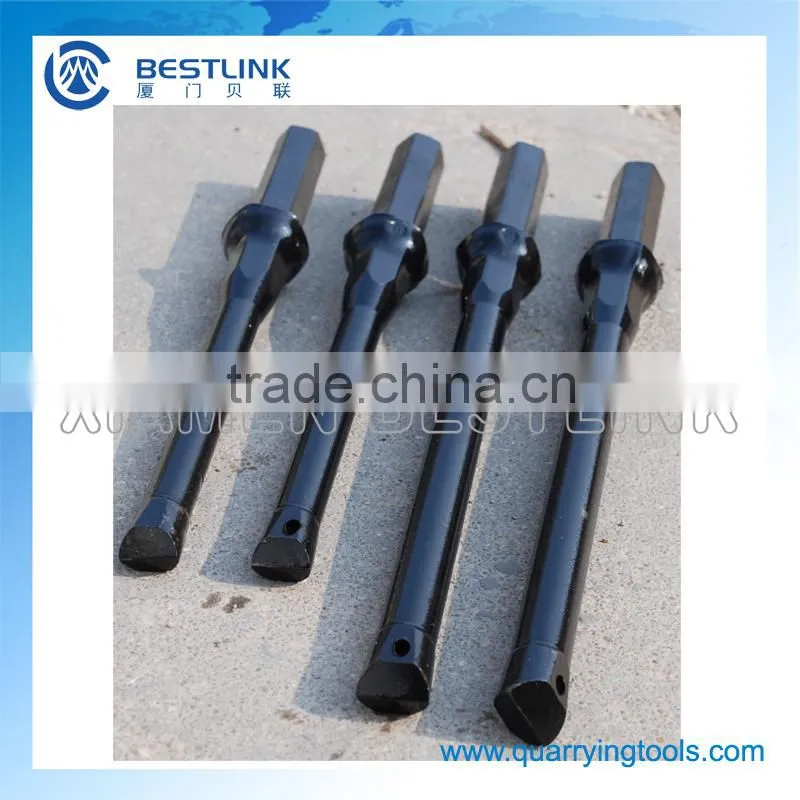

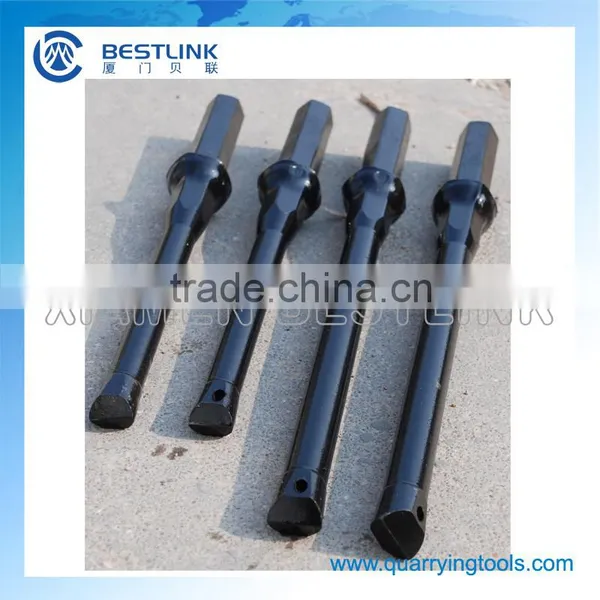

plug hole rod are a fixed length with a shank at one end and a bit at the other ,and are able to drill to a depth equivalent to their effective length.The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.
To drill deep holes,the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.
To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.
The products in this brochure are the most cmmonly used.For other bit diameters and lengths please contact us.

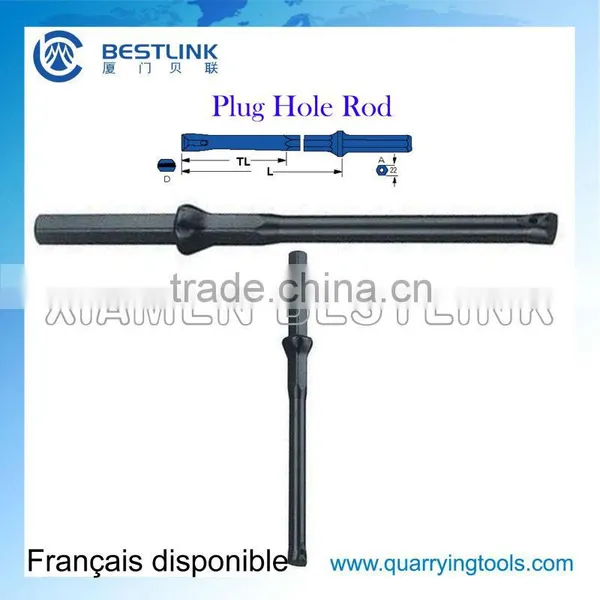

| Shank | Turned length (TL) | chisel Bit D | Weight |
| mm | mm | mm | kg |
| Hex 19 x 108 | 150 | 7 20 22 | 0.6 |
| 200 | 20 22 | 0.6 | |
| 250 | 20 | 0.8 | |
| Hex 19 x 82.5 | 280 | 20 22 | 1 |
| Hex 22 x 108 | 150 | 17 20 22 | 0.7 |
| 200 | 17 20 22 | 1 | |
| 250 | 17 20 22 | 1.1 | |
| 300 | 17 20 22 | 1.7 | |
| 200 | 17 20 22 | 0.8 | |
| 250 | 17 20 22 | 0.9 | |
| 300 | 17 20 22 | 1.5 | |
| 350 | 17 20 22 | 1.8 | |
| 550 | 17 20 22 | 2.4 | |
| 710 | 17 20 22 | 2.9 |

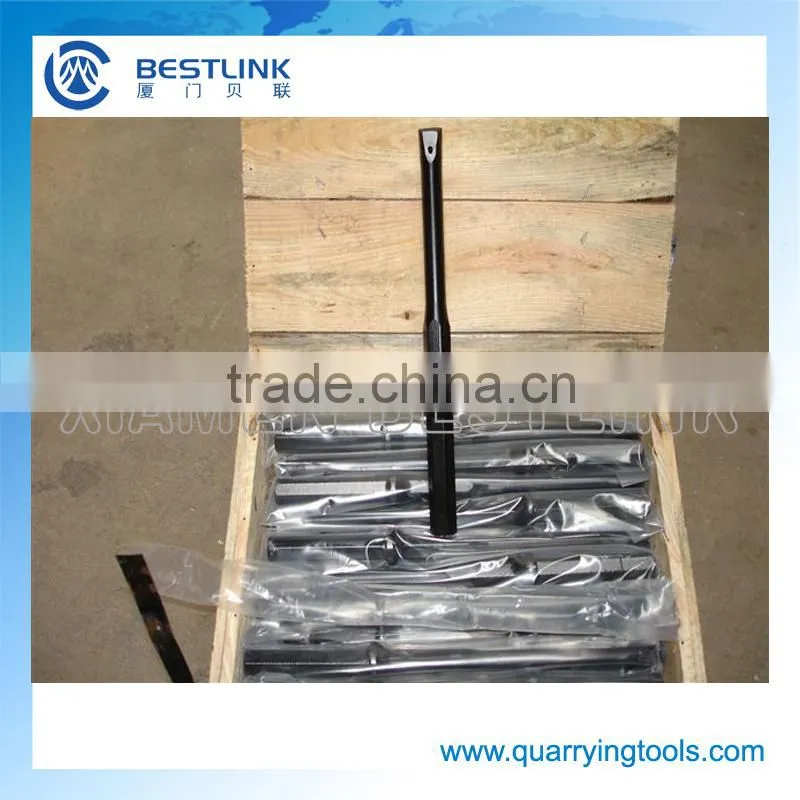

50 pcs per crate
