1.Product description
steel tooth bit,steel tooth tricone bit,
steel tooth roller bit
For soft to medium formation drilling
Reliable bearing
Inserted Tooth and Milled Tooth Tri-cone Rock Bits,Our products have reliable quality and competitive price
Tricone Bit/ TCI Bit
Inserted Tooth and Milled Tooth Tri-cone Rock Bits
1.Sizes ranging from 3 7/8' to 26' .
2.Covers almost all IADC codes .
3.. Tungsten carbide insert cutter of high strength and toughness is used to increase the impact
resistance of cutters and decrease the breakage rate.
4. The features of TCI bits lead to its drilling formation almost are hard rocks, like limestone, dolomite, chert, firm sandstone, firm anhydrite, etc.
5.Widely used in oil exploration, mining prospecting, water well drilling ,subterranean heat,
hydrology, etc
IADC code: 116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337
115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
Available sizes: from 2 7/8 to 26” ( larger sizes for hole opener bit ,reamer bit )

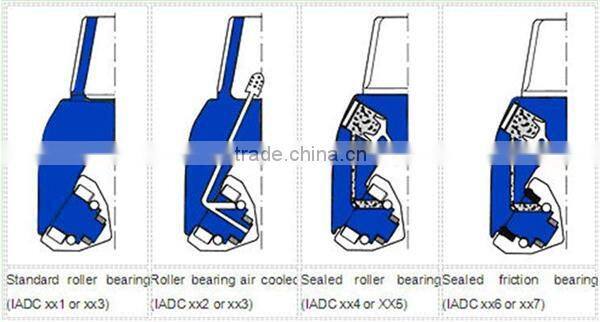

Bearing type: sealed bearing and non-sealed bearing
(The sealed bearing include:
the metal sealed journal bearing and the rubber sealed journal bearing)
Formation or layer : soft ,medium soft ,hard,medium hard
Button size (extra features): Button bit,saw teeth
1) Y-Conical teeth
2) X-chisel teeth
3)K- wide teeth
4)G- Gague protection
Material: tungsten Carbide
Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new
techniques and new techniques. The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces.
Bearing Structure
Non-sealed roller bearing. Drilling fluid can enter the bearing directly for cooling; Balls lock the cone
which reduces the probability of cone ropping to minimum.
Product Application
It is suitable for the shallow well, water well and geothermal well.
IADC | WOB(kN/mm) | RPM(r/min) | Formation |
114115 | 0.3-0.75 | 180-50 | Soft formation with low compressive strength and high drillability,such as mudstone,clay,chalk,etc |
116117 | 0.3-0.8 | 150-70 | Soft formation with low compressive strength and high drillability,such as mudstone,clay,chalk,etc |
124125 | 0.3-0.85 | 180-60 | Soft formation with low compressive strength and high drillability,such as mudstone,clay,salt,loose stands,soft limestone,etc |
126127 | 0.3-0.9 | 150-60 | Soft formation with low compressive strength and high drillability,such as mudstone,clay,salt,loose stands,soft limestone,etc |
134135 | 0.35-0.95 | 150-50 | Soft to medium formation with low compressive strength or soft with harder streaks,such as mudstone,shale,soft limestone ,sands,etc |
136137 | 0.35-1.0 | 120-60 | Soft to medium formation with low compressive strength or soft with harder streaks,such as mudstone,shale,soft limestone ,sands,etc |
214215 | 0.4-0.95 | 150-60 | medium hard formation with high compressive strength ,such as medium soft shale,anhydrite,medium soft limestone ,medium soft sandstone as well as thick and hard streaks,etc |
216217 | 0.4-1.0 | 100-60 | medium hard formation with low compressive strength ,such as medium soft shale,limestone and sandstone as well as thick and hard streaks,etc |
244 | 0.35-0.95 | 150-50 | medium hard formation with high compressive strength ,such as hard shale,sands ,limestone,etc |
246247 | 0.4-1.0 | 80-50 | medium hard formation with high compressive strength ,such as hard shale,sands ,limestone,etc |
324325 | 0.4-1.0 | 120-50 | hard formation with high strength and abrasiveness such as hard limestone,hard sands,dolomite,hard shale,etc |
Widely used in oil exploration,mining prospecting,subterranean heat ,hydrology etc.
2.Instructions for use:
1,According to the stratigraphic lithologic data, hydraulic and drilling parameters, choose the type of drill bit.
2,According to the hydraulic parameters, choose corresponding nozzle .nozzle hole size difference should not be too large, so as to avoid erosion channel.
3,Before drill down, check the drill bit size, type size is consistent with the well, the nozzle is installed, connected with the drill bit screw thread specification and the joint compliance.
4,The drill bit should be under well as the operation rules.bit and bottom contact, It must operate 30 minutes under light pressure and slow turning (drilling pressure 5-15kN, speed 60r/min) , then can be gradually increased to the normal drilling pressure.

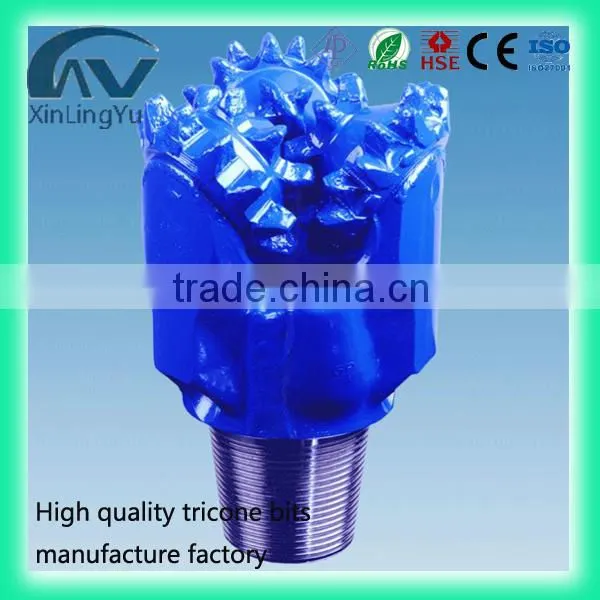

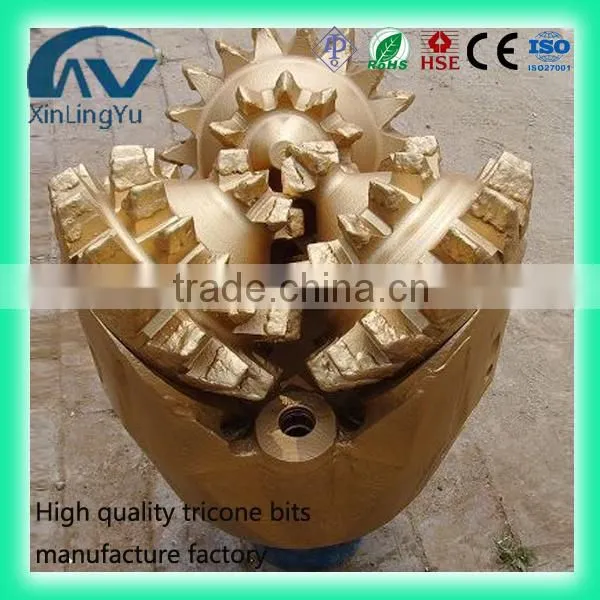

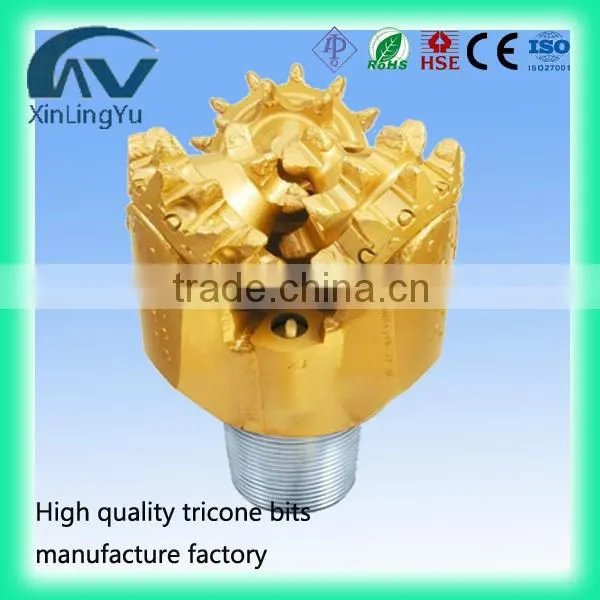

3.Show the figure of the product

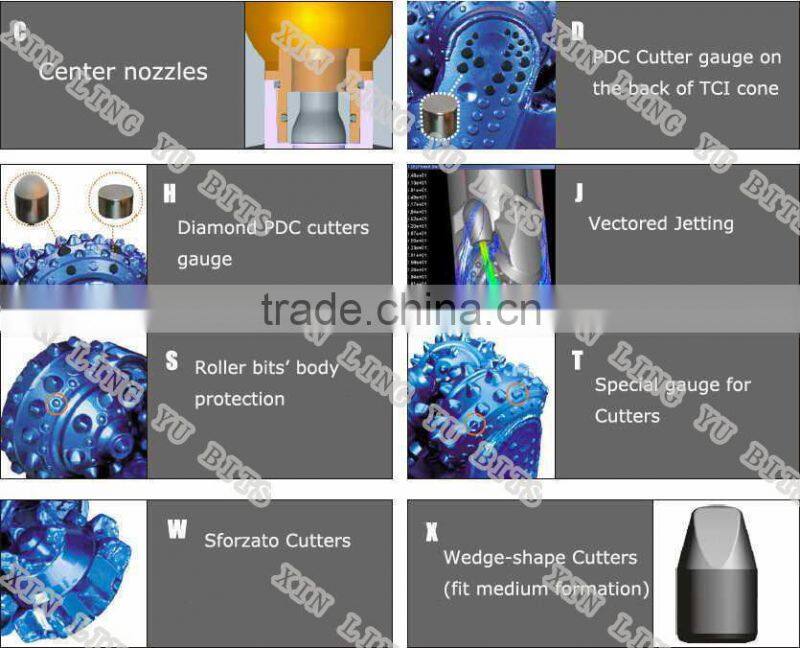

The advantage:
1)Rubber sealed sliding bearing bits are sealed by special type “O”.Under the normal rotary speed conditions,they can stand high bit pressure.The bore surface of the cone has been treated with special techniaue in order to improve sliding motion of the bearing.And every performance is improved greatly.
2)The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal .The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
3)Surface of cone back and cutters are hard enhanced by high wear resistance tungsten carbide,largely increase the work life of bit.
Optimal cutter rows,cutter quantity,cutter length and cutter structure design largely improve the drilling capability and speed.
4.Our service
(1)Supply both steel tooth and TCI tricone bit ,PDC bit.
(2).We have two bit new and renovated,Many sizes in stock.
(3)Our tricone bit is high effiency and long working life.Export to USA and Europe
(4)Fast production for big orders,delivery by sea,air,express.Works on FOB,CFR,CIF

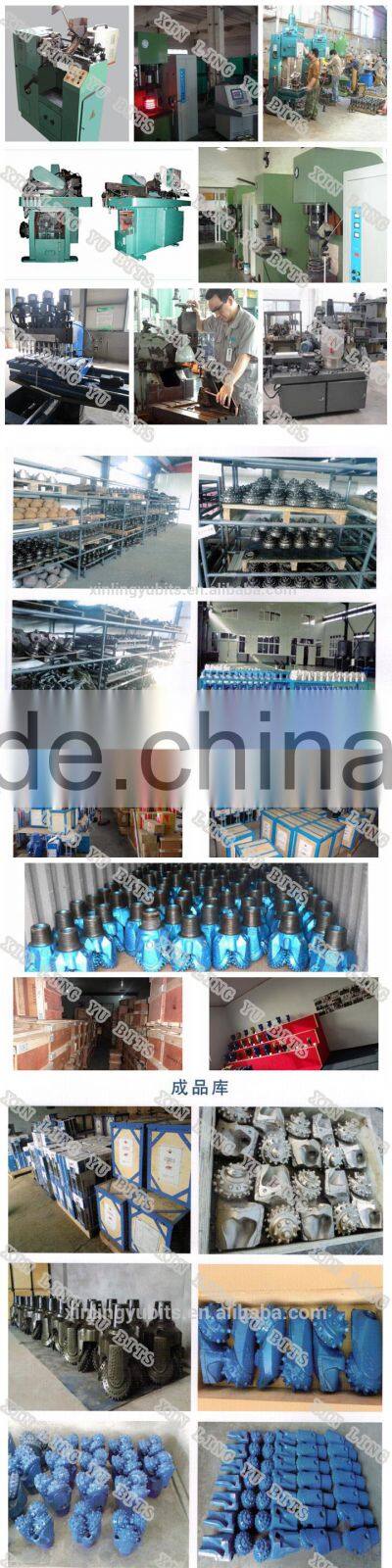

5.Inventory and production

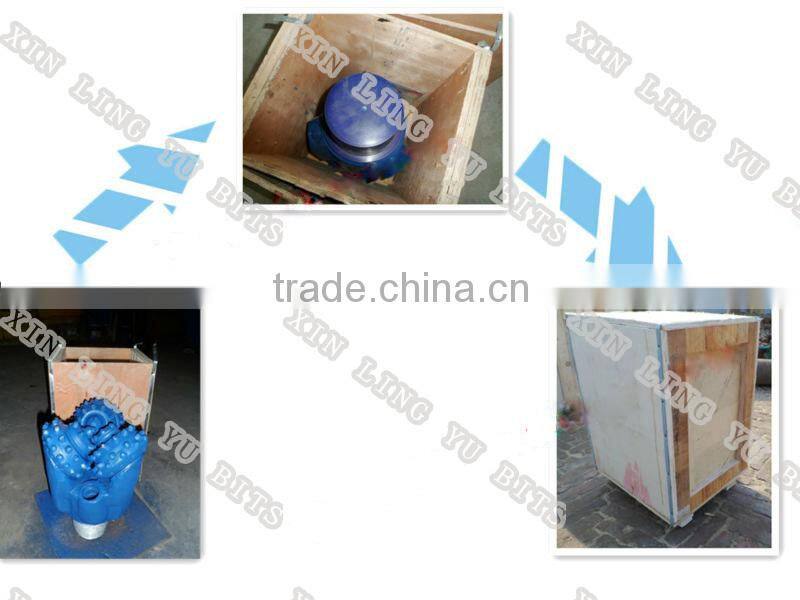

6.The packing and shipping
Packaging Details:fumigation wooden case or steel case as you required
Delivery Detail:3 DAYS
7.FAQ
1. What type tricone bit do you produce?
Answer:Bothe steel tooth tricone bit and TCI tricone bit
2.MOQ
Answer:MOQ is only 1 pcs.Many sizes in stock.
3.What standard is your steel tooth tricone bit and TCI tricone bit
Answer:API,IADC,we ourself have strict production control.
4.Payment terms
Answer:Works on TT, FOB.Pay 30% of the full first, do the deposit, we stock up in advance, after full payment, we delivery.
5.Delivery time
Answer:If you need the quantity, we have in stock, it is the first 30% of the full, we are ready for shipment, after being fully payment, delivery within 48 hours.If demand is big, we are depending on the amount of concrete analysis.
6.The quality of your products
Answer:Our tricone bit is high effiency and long working life.Obey the instructions and operation key points, steel tooth tricone bit normal use is up to 60 hours.
7. Do you have any certification?
Answer:Our drill bit is in line with the American petroleum institute APISpec7 standards, as well as the People's Republic of China oil and gas industry standard Q/JZ. J. 2.API,IADC,we ourself have strict production control.
8. Can you supply us on regular basis if we establish a business relationship with you?
Answer:Yes,We have our own production factory, can quickly produce big order.
9.What is your tricone bit drilling rock formation?
Answer:Our steel tooth tricone bit is suitable to drill soft rock formation;Rubber sealed bearing tricone bit is suitable to drill hard rock formation;Metal sealed bearing tricone bit is suitable to drill very hard rock formation.
8.Contact us
Kindly send us E-mail or call us,we will try all best to support you and give you good price.
Thanks for interests in our tricone bits.Welcome to enquiry us!Waiting to offer you a good price!
