API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade

API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-1
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-2
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-3
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-4
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-5
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade thumbnail-6
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-1
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-2
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-3
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-4
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-5
API 3"-26"Wings Step Drag Bits,pdc Bits for Ore Mining,diamond Cutter Blade photo-6
US$ 50 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
New Field
Model Number:
API 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter
Contact Supplier Request Quote Chat Now
Hejian New Field Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name New Field
Model Number API 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter
Type Other, Center Drill Bit, 2-171/2" (50.8mm- 444.5mm) can be order
Material Tungsten Carbide
Use Metal Drilling

Professional with varies kinds of tungsten carbide (TC) drag bits in China for many years. Including of carbide drag bits, carbide step drag bits, 3-wings, 4-wings drag bits.





 API 3 Wings Alloy Steel Drag Bit/Stepped Drag Bit/Tungsten Carbide Drag Bit

1-API or ISO 9001:2008

2-Delivery Date: In 7 work days

3-Delivery term: By air or by sea

4-MOQ: 10 units

5-Brand new

6-Size: 3”-17”

7-Packing: Wooden Case



Drag Bit

Model

diameter

PDC cutter

blade quantity

rock formation

working way

LJG94GP

94MM,

Plane PDC

3

Middle and hard formation

cutting,crush

LJG113GP

113MM

Plane PDC

3

Middle and hard formation

cutting,crush

LJG133GP

133MM

Plane PDC

3

Middle and hard formation

cutting,crush

LJG153GP

153MM

Plane PDC

3

Middle and hard formation

cutting,crush

LJG171GP

171MM

Plane PDC

3

Middle and hard formation

cutting,crush

LJG200GP

200MM

Plane PDC

3

Middle and hard formation

cutting,crush





Product Description:

Drag bits also named blade bits ,with TC inserts on the blade.



They are usually designed for use in soft formations such as sand,clay or soft rock.



Their uses include drilling water wells,mining,geothermal,enviromental and exploration drilling.



Usually drag bits are three wings,while sometimes four wings or five wings.







Type:stepped & chevron



          (2- 4 wings drag bit)







Size Available:



From 3"(76.2mm) to 17 1/2"(444.5mm)



Size

Type Pin

Wt. (lbs.)

1 3/4" - 2 1/2"

AW, A-Rod

2

2 5/8" - 2 7/8"

AW, A-Rod

2 1/2

2 3/4" - 3 1/4"

3THD/4THD N-Rod, 2" IF

4

3 3/8" - 3 3/4"

3THD/4THD N-Rod, 2"IF

4 1/2

3 7/8" - 4 3/4"

2 3/8" API Pin

6

4 7/8" - 5 1/8"

2 3/8" API Pin

7

5 1/4" - 5 1/2"

2 3/8" API Pin

8

4 5/8" - 5"

2 7/8" API Pin

10

5 1/8" - 5 1/2"

2 7/8" API Pin

11

5 5/8" - 6 1/4"

3 1/2" API Pin

18

6 1/2" - 6 3/4"

3 1/2" API Pin

19

7" - 7 1/2"

3 1/2" API Pin

21

7 5/8" - 8"

3 1/2" API Pin

23

NOTICE: The above is 3-way.

Chevron One Piece (4-way) Drag Bits

Size

Type Pin

Wt. (lbs.)

2 3/4" - 3 1/4"

3THD/4THD N-Rod, 2" IF

5

3 3/8" - 3 3/4"

3THD/4THD N-Rod, 2" IF

5 1/2

3 7/8" - 4 3/4"

2 3/8" API Pin

9

4 7/8" - 5 1/8"

2 3/8" API Pin

9

5 1/4" - 5 1/2"

2 3/8" API Pin

10

4 5/8" - 5"

2 7/8" API Pin

12

5 1/2" - 6 1/4"

3 1/2" API Pin

22

6 1/2" - 6 3/4"

3 1/2" API Pin

24






Three wings step drag bits:

  1. Drag bits are made according to API standard or no thread standard just welding
  2. Various step and chevron drag bits are available from 3 inch to 17 1/2 inch. (normal small size are 3”,3 3/4”,3 7/8”,4 3/4”,4 5/8”,5 7/8” and so on)
  3. There is very good feedback from our customers because of the quality and price.
  4. Different drag bits can be made according to your drawings or samples.

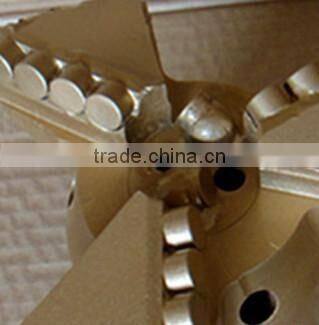

Real Pictures
API 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter bladeAPI 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter bladeAPI 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter bladeAPI 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter bladeAPI 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter bladeAPI 3"-26"Wings Step Drag Bits,pdc bits for ore mining,diamond cutter blade
