Dimond Wire Saw Cutting Machine, Quarry Saw machine, stone beads machine
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.
We designed a series of BLD-W products after fully study the cutting condition and technique of diamond wire saw, it used high quality transducer and PLCto realize automatically, reasonably,timely to adjust the cutting techniques.
Technical Specification
| Type Technical Data | BL-11G | BL-15G | BL-18.5G | BL-22G | BL-30G | BL-37G | BL-45G | BL-55G | BL-75G |
| Driving motor power (kw) | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Flywheel's Diameter (mm) | Φ550 | Φ550 | Φ650 | Φ650 | Φ800 | Φ800 | Φ800 | Φ800 | Φ1000 |
| Linear wire speed (m/s) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Towable length of wire (m) | 10-20 | 10-30 | 10-35 | 10-40 | 20-50 | 20-80 | 20-100 | 20-120 | 20-150 |
| Feeding Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Sideways Range(manual) (mm) | 200 | 200 | 450 | 450 | 450 | 450 | 650 | ||
| Rotation Angle | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Machine travelling speed(m/h) | 0-30 | 0-30 | 0-30 | 0-30 | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 |
| Length of Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 |
| Power ( AC V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Working Temperature Range (°C) | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 |
| Weight (Tons) | ~0.35 | ~0.37 | ~0.6 | ~0.7 | ~2.1 | ~2.3 | ~2.6 | ~2.9 | ~3.1 |

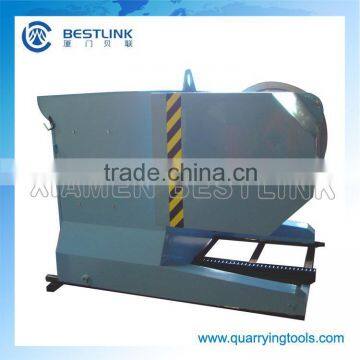

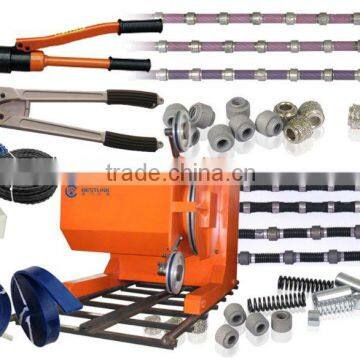

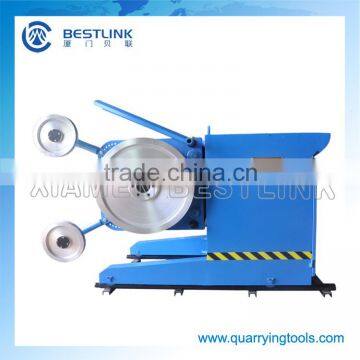

Details pictures:

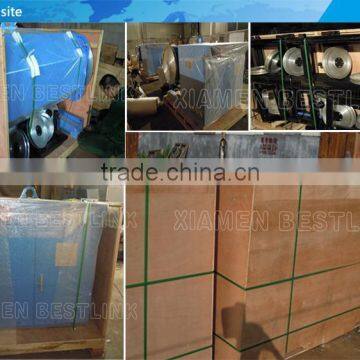

Working Effect Pictures:
