Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Dmx Madrix Rigid RGB Led Strip Bar Light 5050 LED, 12V

Dmx Madrix Rigid RGB Led Strip Bar Light 5050 LED, 12V

Dmx Madrix Rigid RGB Led Strip Bar Light 5050 LED, 12V thumbnail-1
Dmx Madrix Rigid RGB Led Strip Bar Light 5050 LED, 12V photo-1
US$ 11.5 - 13 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
5050 SMD LED
Type:
LED Bar Lights
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Aidisen Optoelectronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050 SMD LED
Type LED Bar Lights
Input Voltage(V) DC12V
Lamp Power 12W
Lamp Luminous Flux(lm) 320 Lumen
Color Temperature(CCT) RGB
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, REACH, CE
Emitting Color Other, RGB full color
Place of Origin Guangdong, China
Brand Name AidisenLED
Model Number ADS-1048-5050

Specifications

1.led tube digital light dmx 5050
2.48pcs smd5050 leds
3.dmx rgb with IC
4.Madrix software used
5.Cheap Aluminum led strip

led tube digital light dmx 5050







48pcs SMD5050 Aluminum rgb leds



4 years expenience factory in shenzhen shiyan



DMX with Madrix software used, DJ dancing floor leds



Cheap price with good quality



Led Factory, OEM accept.









Advantages of 5050 SMD LED RGB DMX Digital rigid strip ic light:



1,direct from factory LED DMX IC 5050 RGB Rigid strip light
2,5050 SMD LED RGB IC Strip with aluminum base
3,50000hour CE RoHS

4, LPD6803, SM 16716 IC,

4, DMX Controller,

5, OEM/ODM accept

6, 3-5 Days delivery

7, sign, decoration,screen, stage , dance floor, DJ light used







Instruction:



1, ADS-1048IC-5050 is a combination of a aluminium shell and PCB board,

     also 4 spell line with blue,green,yellow,red color.with 48 PCS 5050 RGB LED.
2, This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation
     methods may compose different dynamic effect of different color's character and design.
3, Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in
     building profile, Street lighting,stage view,outside Ads screen, entertainment and so on for decoration and lighting.





Specification of DMX LED Strip light





item Color LED Qty Lumen Kelvin LED dimension unit
1048IC-5050 Red 48 50 619-635k 5050 RGB 1000*15*5mm 1meter
1048IC-5050 Green 48 170 512-528k 5050 RGB 1000*15*5mm 1meter
1048IC-5050 Blue 48 56 463-475 5050 RGB 1000*15*5mm 1meter





LED Rigid parameter:





Items parameter unit
Voltage DC12 voltage
Power 12 W
IP grade IP66
Dimension 1000*15*5 mm
IC Type LPD 6803 SM 16716 1903,WS 2801 IC
view angle 120 degree
lifespan 50 000 hours



Detailed specifications:




01. Item No: 5050  6/12/24/48PCS LEDs /meter
02. Input Voltage: 12V  DC
03. Power:  1.5W/3W/6W/12WMeter
04. Strip width: 15mm
05. Available colors: Various single color&RGB & full color
06. Long working lifespan: More than 50000h
07. Both waterproof and non-waterproof are available
08. Packing: 1m/pcs
09. White PCB/blackavailable
10. Warranty: Two Years

11.CE/ROHS Certification

12. IP 66 waterproof



Applications:


1) Car decoration
2) Architectural decorative lighting
3) Archway, canopy and bridge edge lighting
4) Amusement park, theater and aircraft cabin mood lighting
5) Emergency hallway lighting
6) Auditorium walkway lighting
7) Stairway accent lighting
8) Concealed lighting
9) Backlighting for signage letters
10) Channel letter lighting
11) Emergency exit path lighting
12) Cove lighting

13) sign, screen display

14) stage, dance floor DJ floor,DJ Light



Trade Terms:


1.Payment: T/T 100% in advance T/T,Paypal,Western Union
2.Production lead time  500M: 2-3days, 1000~2000M:3-5days, above 5000M 5-7days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ:10M



Our service:


1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information



  AidisenLED Exhibition:


1. Exhibition Name LED China 2011
Place China Import and Export Fair Pazhou Complex, Area B, Guangzhou
Date 1st Mar. To 4th, Mar., 2011
Booth /Stand Number: G581

2. Exhibition Name: LED Shanghai 2011
Date: 2011 6~9th July
Venue: Shanghai, China
Booth No. 552(E1 HALL)



3. Exhibition Name: Hong Kong International Lighting Fair(Autumn Edition)
Date: 2011 27-30th October

Venue: Hong Kong CONVENTION & EXHIBITION CENTRE

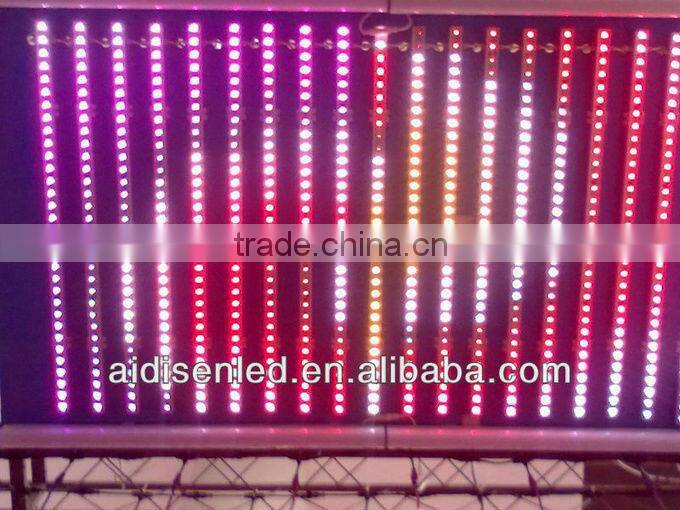

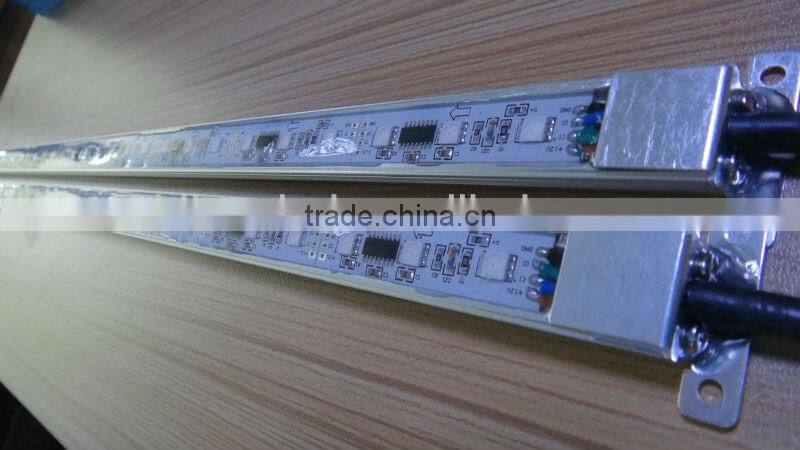

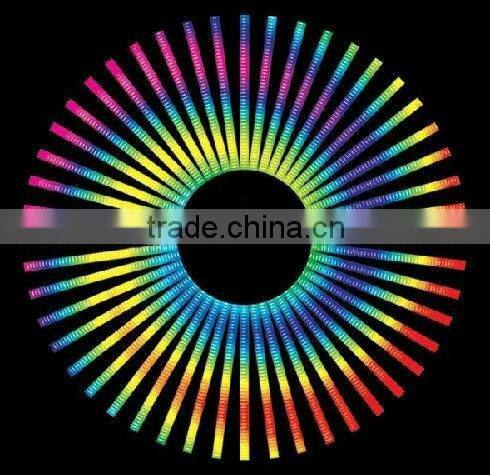

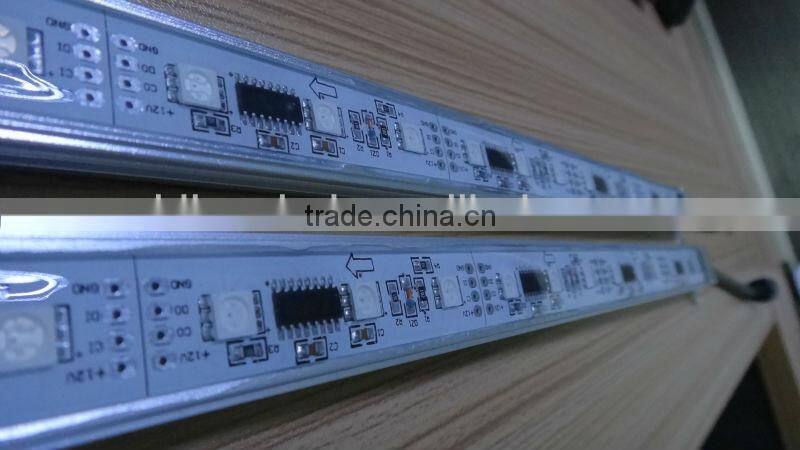

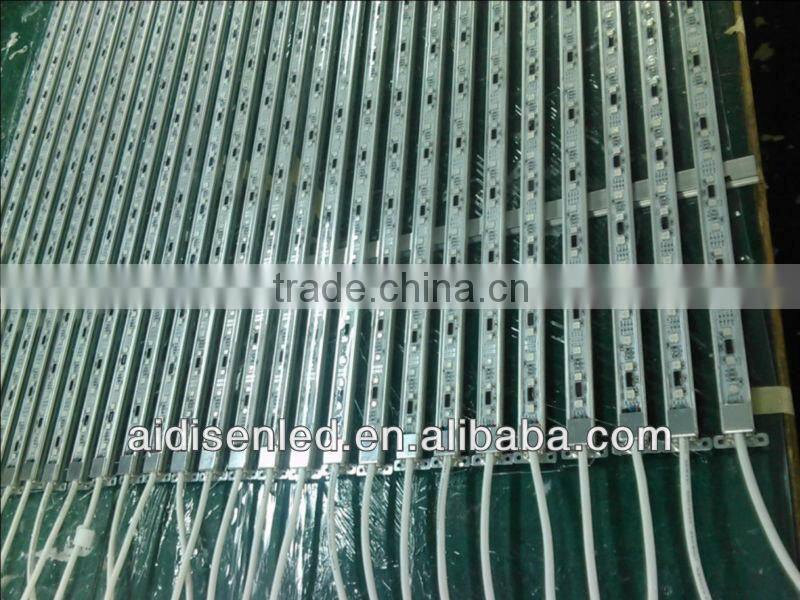

Pictures:





dmx madrix rigid RGB led strip bar light 5050 LED, 12Vdmx madrix rigid RGB led strip bar light 5050 LED, 12Vdmx madrix rigid RGB led strip bar light 5050 LED, 12Vdmx madrix rigid RGB led strip bar light 5050 LED, 12V



dmx madrix rigid RGB led strip bar light 5050 LED, 12V



dmx madrix rigid RGB led strip bar light 5050 LED, 12V
