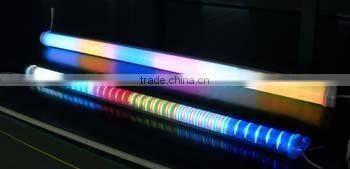

LED Light Tube Lamp

Specifications

Product parame:

Working voltage:                                         DC12V

Working current:                                        0.36ma

Working consumption:                                  0.72w

Working temperature:                             –40°C- 60°C

IP grade:                                                     IP66

Dimension:                                                78*18*9mm

LEDtype:                                        Φ5strawhat3R3G3B  LED

LED qty:                                                         108/144pcs

Lifespan:   MTBF>                                            50000h

Viewing angle:>                                          90°

TUBE with high brightness,suitable in digital LED colorful characters,channel letters,various kinds inside and outside light source of illumination facility,It's can achieve different effect in only an lamp

This product can carry out the effects of RGB full-color running water,chasing and scanning.

This module could be linked up to 20 PCS modules,more than 20pcs is strictly prohibited.

The diameter of the power cord should be based on the actual maximun current,the product power,cabling length (recommended no more than 8meters),and the voltage of transmission line .
