aluminium led strip bar 5050
Advantages of 5050 SMD LED RGB DMX Digital bar rigid strip ic light:
1,direct from factory LED DMX IC 5050 RGB Rigid strip light
2,5050 SMD LED RGB IC Strip with aluminum base
3,50000hour CE RoHS
4, LPD6803, SM 16716 IC, 1903 IC, WS2801 IC
4, DMX Controller,
5, OEM/ODM accept
6, 3-5 Days delivery
7, sign, decoration,screen, stage , dance floor, DJ light used
Introuction ( aluminium led strip bar 5050 ):
1, ADS-1048IC-5050 is a combination of a aluminium shell and PCB board,
also 4 spell line with blue,green,yellow,red color.with 48 PCS 5050 RGB LED.
2, This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation
methods may compose different dynamic effect of different color's character and design.
3, Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in
building profile, Street lighting,stage view,outside Ads screen, entertainment and so on for decoration and lighting.
Specification of aluminium led strip bar 5050
| Item | Color | LED QTY | Lumen | Kelvin | LED | Dimension | Unit |
| 1048IC-5050 | Red | 48 | 50 | 619-635k | 5050 RGB | 1000*15*5mm | 1 meter |
| 1048IC-5050 | Green | 48 | 170 | 512-528k | 5050 RGB | 1000*15*5mm | 1 meter |
| 1048IC-5050 | Blue | 48 | 56 | 463-475K | 5050 RGB | 1000*15*5mm | 1 meter |
LED Rigid strip bar 5050 parameter:
| Items | parameter | unit |
| Voltage | DC12 | voltage |
| Power | 12 | W |
| IP grade | IP66 | |
| Dimension | 1000*15*5 | mm |
| IC Type | LPD 6803 SM 16716 1903,WS 2801 IC | |
| view angle | 120 | degree |
| lifespan | 50 000 | hours |
Detailed specifications:
01. Item No: 5050 6/12/24/48PCS LEDs /meter
02. Input Voltage: 12V DC
03. Power: 1.5W/3W/6W/12WMeter
04. Strip width: 15mm
05. Available colors: Various single color&RGB & full color
06. Long working lifespan: More than 50000h
07. Both waterproof and non-waterproof are available
08. Packing: 1m/pcs
09. White PCB/blackavailable
10. Warranty: THREE Years
11.CE/ROHS Certification
12. IP 66 waterproof
Applications:
1) Car decoration
2) Architectural decorative lighting
3) Archway, canopy and bridge edge lighting
4) Amusement park, theater and aircraft cabin mood lighting
5) Emergency hallway lighting
6) Auditorium walkway lighting
7) Stairway accent lighting
8) Concealed lighting
9) Backlighting for signage letters
10) Channel letter lighting
11) Emergency exit path lighting
12) Cove lighting
13) sign, screen display
14) stage, dance floor DJ floor,DJ Light
1.Payment: T/T 100% in advance T/T,Paypal,Western Union
2.Production lead time 500M: 2-3days, 1000~2000M:3-5days, above 5000M 5-7days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ:20M
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
2011 AidisenLED Exhibition:
1. Exhibition Name Middle East Sign & Graphic Imaging 2011
Place: Dubai Airport Expo, Dubai
Date: 24-26th Jan, 2011
Booth/Stand Number U25
2. Exhibition Name LED China 2011
Place China Import and Export Fair Pazhou Complex, Area B, Guangzhou
Date 1st Mar. To 4th, Mar., 2011
Booth /Stand Number: G581
3. Exhibition Name Euro-Reklama Outdoor EXPO 2011
Place Poznan International Exhibition Centre, Poland
Date 12-15th Apr. 2011
Booth/Stand Number: Confirmed soon
4. Exhibition Name Expopublicitas 2011
Date 25th, May to 27th, May., 2011
Venue: Mexico city, Mexico
Booth/Stand Number: 1303
5. Exhibition Name: LED Shanghai 2011
Date: 2011 6~9th July
Venue: Shanghai, China
Booth No. 552(E1 HALL)
6. Exhibition Name: Serigrafia Sign 2011
Date: 21th, July. To 23th, July., 2011
Venue: Expo Center Norte - Sao Paulo, Brazil
Booth/Stand Number: 245-G
7. Exhibition Name: Expo Sign & Serigrafia
Date: 2011 4-6th August
Venue: Buenos Aires, Argentina
Booth/Stand Number: 1836
8. Exhibition Name: Sign Africa 2011
Date: 2011 24~26th August
Venue: Johannesburg, South Africa
Booth No. J8
9. Exhibition Name: Hong Kong International Lighting Fair(Autumn Edition)
Date: 2011 27-30th October
Venue: Hong Kong CONVENTION & EXHIBITION CENTRE

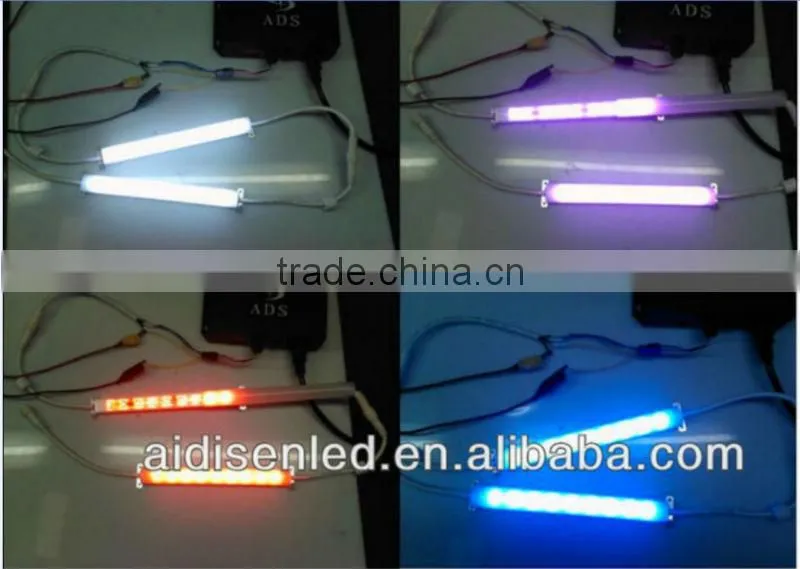

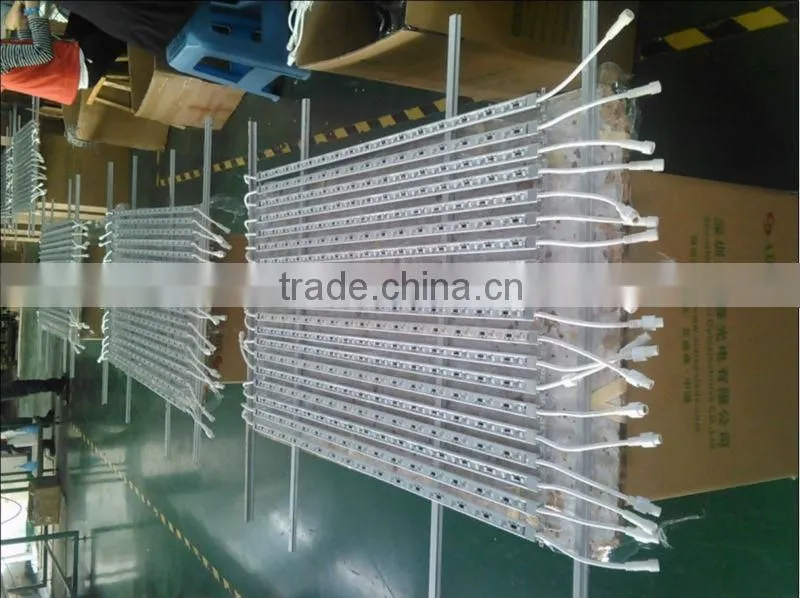

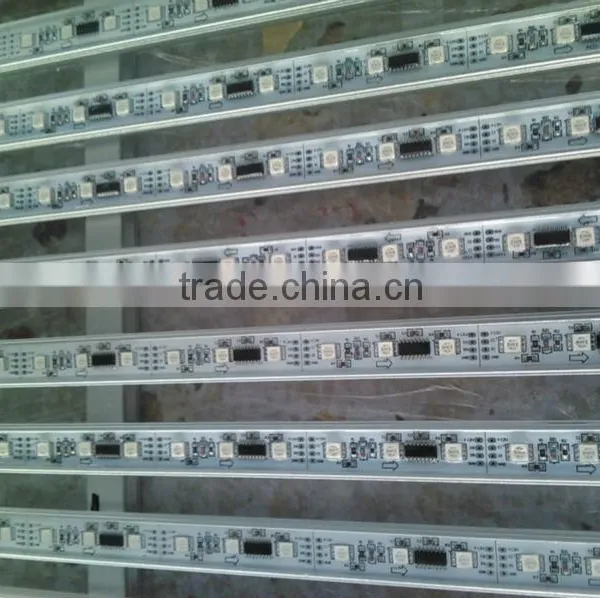

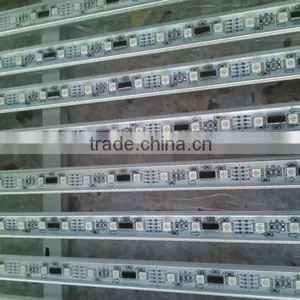

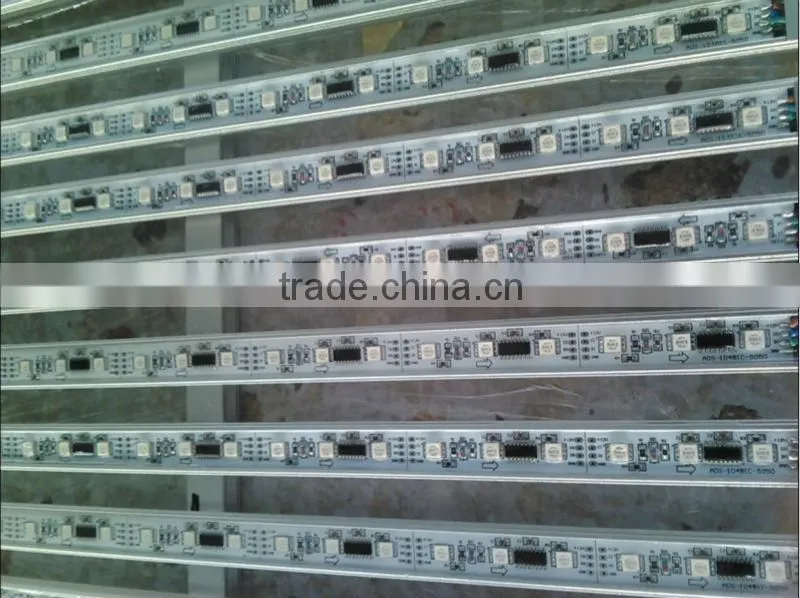

Pictures( aluminium led strip bar 5050 ):
