Aluminium Flexible Air Vent Duct
(Air Ducting,Insulated & Non-insulated Air Flexible Duct & Silent Insulated Duct)
Made of Aluminum foil + pet + steel wire OR flexible duct+insulated sponge+aluminum foil.
(Silent insulated duct Punched many small hole, can absorb most of sound from airstream)
Widely used in thermally insulated ducting. which has be special designed for HAVC system market.
We are the biggest manufacturer in China. Our price is lowest , the quality is perfect , and the delivery will be promptly.

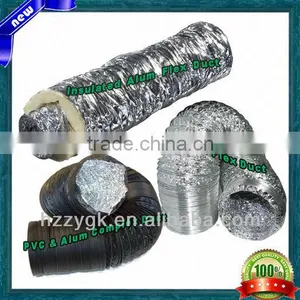

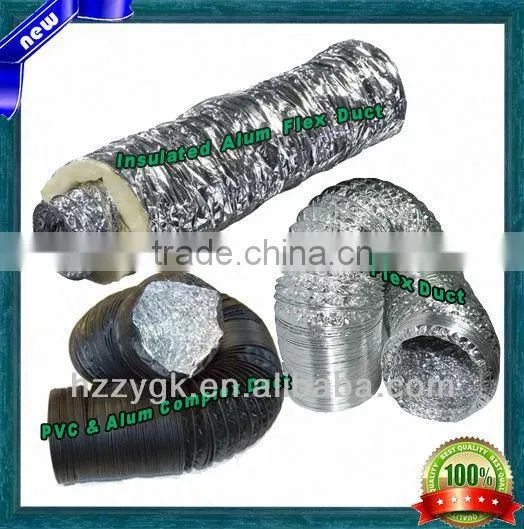

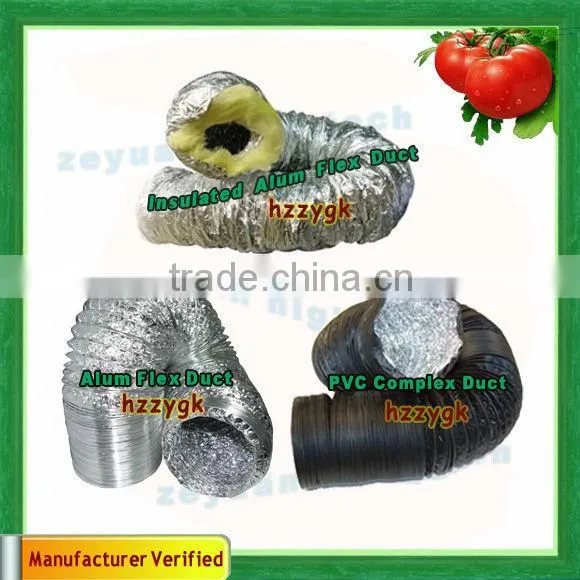

Aluminum Flexible Duct
Non-insulated aluminium flexible ducts are specifically produced for low and medium pressure heating, cooling, ventilation, exhaust and air conditioning systems.
Airtight aluminium flexible ducts are produced from multi layer aluminium strengthened with high tension hard steel spring wire. It has high elasticity and flexibility.
It can be easily fitted to circular, oval or rectangular connectors. In case of fire no toxic or poisonous gases are released.
| PROPERTIES | VALUE |
| Diameter Range | 50-750mm (2"-30") |
| Temperature Range | -30 ~ +250 ºC |
| Velocity Of Air Flow (Max.) | 30 m/s |
| Working Pressure | 2500 Pa |
| Bending Radius | 0.54*D |
| Standard Length | 10M, 5M etc |
PVC & Aluminum Complex Flexible Duct
Aluminum & PVC combined flexible air ducts are specifically produced for discharging welding fumes and dense chemical gases where high mechanical resistance is required.
This product is produced from multi layer aluminium strengthened with high tension steel spring wire, covered with a nonflammable PVC jacket.
Aluminium & PVC combined flexible air ducts are also recommended for heating, cooling and air-conditioning systems.
| PROPERTIES | VALUE |
| Diameter Range | 50-750mm (2"-30") |
| Temperature Range | -30~ +140ºC |
| Velocity Of Air Flow (MAX.) | 30 m/s |
| Working Pressure | 2500 Pa |
| Standard Length | 10M; 5M; Available on request |
Insulated Aluminum Flexible Duct
(silent insulated duct)
Good insulation---heat insulated.
(Absorb noise---can absorb the noise from the shaking when ventilated.)
No corrosive---not corrode the alu. pipe and metal parts.
Durability---not decay, mildew, durability.
Fire---resistance.
Practicality: suitable for the densely-populated area (such as school, supermarket, office, stadium, theater, factory...) high requietment of the enviroment area, such as hospital, laboratory, howff, bus, train, broadcasting studio.
| PROPERTIES | VALUE |
| Diameter Range | 75-750mm (3"-30") |
| Temperature Range | -30 ~ +250ºC |
| Velocity Of Air Flow (MAX.) | 30 m/s |
| Working Pressure | 2500 Pa |
| Bending Radius | 0.54*D+25MM |
| Thickness Of Fiberglass Insulation | 25MM |
| Density Of Fiberglass Insulation | 16KG/M3 |
| Standard Length | 10M; 5M; Available on request |
NOTE: OTHER SIZES AND LENGHT ETC ARE AVAILABLE ON REQUEST.
