Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 7W Crystal Surface Square Led Downlight

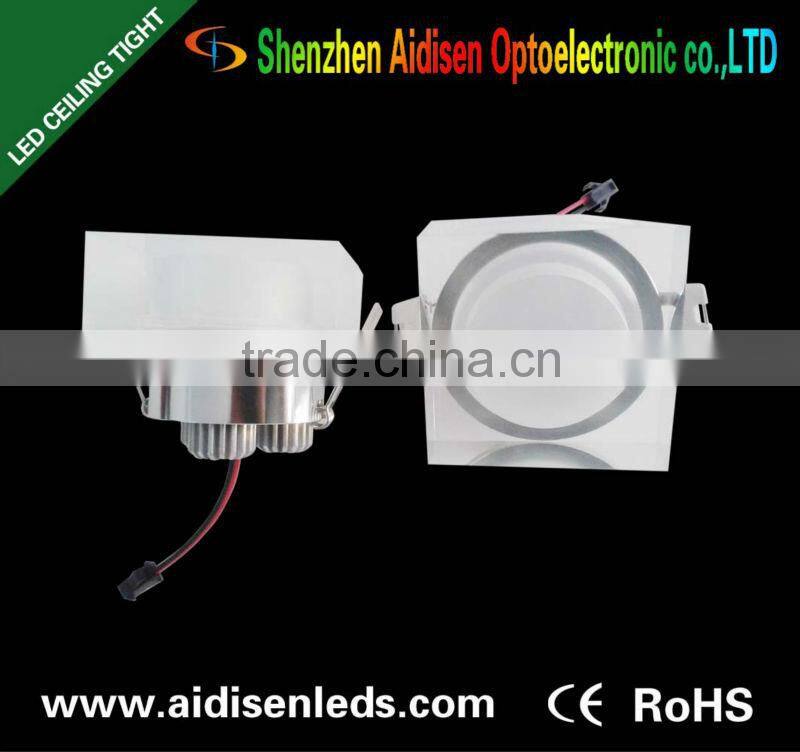

7W Crystal Surface Square Led Downlight

Shenzhen Aidisen Optoelectronic Co., Ltd.

7W Crystal Surface Square Led Downlight photo-1

US$ 8 - 8.2 MOQ: 50 Pieces

Key Specifications

Get Latest Price

LED Light Source:

led downlight

Warranty(Years):

2 years

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen zhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source led downlight

Warranty(Years) 2 years

Input Voltage(V) AC85-265V

Lamp Power(W) 7

Lamp Luminous Flux(lm) 685±5%

Color Temperature(CCT) Pure White

Working Temperature(℃) -25, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP66

Certification CE

Model Number ADS-THW-7B

Place of Origin Guangdong, China

Brand Name ADS

Specifications

Epistar 7W LED, aluminum shell, transparent lens, factory directly sell, 2year warranty,best quality

Specification:

n Product Information

Input voltage	AC85-265V, 50~60Hz
LED Type	Epistar 35mil
LED Qty	7Pcs
LED Power	7W
Lumens	685±5%
Color Temp	2700-7000K
CRI	Ra>80
Life-span	>50,000hrs
Beam Angle	≥120
Total Harmonic Distortion	≤15%
Power Factor	>0.88
Working Temp	-25°C~+50°C
Storage Temp	-40°C~+80°C
Outer shell material	A1
Color of the Lamp	Silver
Certification	CE/RoHS
Lamp Weight G.W./N.W	0.207Kg/Pcs
Size	Φ108*65mm

Led downlight items:

Item	Model number	Description	Voltage	Power	Lumen	Color temperature	Lifespan	Beam angle
1	ADS-THW-3D	3PCS High power LED	AC85-265V	3W±10%	300±5%	2700K-7000K	Over 50k hrs	≥120°
2	ADS-THW-3C	3PCS High power LED	AC85-265V	3W±10%	300±5%	2700K-7000K	Over 50k hrs	≥120°
3	ADS-THW-3A	3PCS High power LED	AC85-265V	3W±10%	300±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°
4	ADS-THW-5A	5PCS High power LED	AC85-265V	5W±10%	500±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°
5	ADS-THW-5B	5PCS High power LED	AC85-265V	5W±10%	480±5%	2700K-7000K	Over 50k hrs	≥120°
6	ADS-THW-6C	6PCS High power LED	AC85-265V	6W±10%	600±5%	2700K-7000K	Over 50k hrs	≥120°
7	ADS-THW-6D	6PCS High power LED	AC85-265V	6W±10%	600±5%	2700K-7000K	Over 50k hrs	≥120°
8	ADS-THW-7A	7PCS High power LED	AC85-265V	7W±10%	700±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°
9	ADS-THW-7B	7PCS High power LED	AC85-265V	7W±10%	685±5%	2700K-7000K	Over 50k hrs	≥120°
10	ADS-THW-9A	9PCS High power LED	AC85-265V	9W±10%	900±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°
11	ADS-THW-9B	9PCS High power LED	AC85-265V	9W±10%	884±5%	2700K-7000K	Over 50k hrs	≥120°
	ADS-THW-12A	12PCS High power LED	AC85-265V	12W±10%	1200±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°
12	ADS-THW-12B	12PCS High power LED	AC85-265V	12W±10%	1196±5%	2700K-7000K	Over 50k hrs	≥120°
13	ADS-THW-15A	15PCS High power LED	AC85-265V	15W±10%	1500±5%	2700K-7000K	Over 50k hrs	25° 30° 45° 60°

Features and Application:

1. Energy saving and environmental protection, lead, mercury and other harmful substances;

2.Long life, over 50,000 hours; The low thermal voltage, safe and reliable, impact resistance, anti-Lei Lijiang, no ultraviolet and infrared;

3.High brightness, no flicker, eliminating the traditional strobe light visual fatigue;

4.Wide voltage range over the globe. Life and brightness from voltage fluctuations;

5.Fast response time, there is no traditional lights start flashing, which means that light. Scope:

ping malls, office buildings, hotels, exhibition halls, conference rooms, hospitals, window, bedroom and other places,especially for luxury high standard large space lighting decoration.
