Help CenterT1000C LED Pixel Controller for ws 2801 Lpd 6803 Pixel Light
Related Products
-
Dmx Rgb Led Controller With Botton(CE&ROHS)ADS-DC5RGBUS$ 14 - 17MOQ: 1 Piece -
rf Waterproof Rgb Led Controller (CE&ROHS)ADS-DC5RGBUS$ 14 - 17MOQ: 1 Piece
-
CE and RoHS Approved DC12V Rgb Led Strip 5050 60leds/m 14.4wUS$ 6 - 7MOQ: 100 Meters
-
RGB Led Controller With Botton(CE&ROHS)ADS-DC5RGBNegotiableMOQ: 1 Piece
-
Easy Contact Led Controller Rgb (CE&ROHS)ADS-RGBcontrollerUS$ 14 - 17MOQ: 1 Piece
Specifications
1, LED Programmable pixel IC light controller2, CE/ROhs
3, available for WS2801,LPD6803,sm16716 icdmx and so on
4,2048 pixe
Specification
Support Chips
| Support chips | LedEdit corresponding model | Single one support lights | Remarks |
| LPD6803,D705,1101,6909,6912 | T-1000-6803 | 2048pixels | |
| LPD8806,LPD8809 | T-1000-8806 | ||
| TM1803,TM1804,TM1809,TM1812 | T-1000-TM | TM1804andTM1809are devided into high and low speed | |
| DMX512 | T-1000-DMX | 170/512pixels | Compatible standard DMX512agreement |
| WS2801,WS2803 | T-1000-WS | 2048pixels | |
| TLS3001,TLS3002 | T-1000-TLS | ||
| P9813 | T-1000-P9813 | ||
| SM16715 | T-1000-SM16715 | ||
| SM16716 | T-1000-SM16716 | ||
| BS0815 | T-1000-0815 | ||
| Match 6909,6912 Guardrail tube | T-1000-HL32 | 1024pixels×sub-control quantity | Must connect sub-control board |
Advantages
1, direct from LED Controller factory
2, different controller for different IC Model ws2801,lpd6803, sm 16716 , WS 2803 and so on
3, with 3-5 day delivery
4, CE/RoHS Approved
5, OEM.ODM
6, LED Pixel light also can be offered
Single port offline controller T-1000C manual
Single-port offline controller T-1000C manual
T-1000C
1,32—256 Gray,Gamma correction procession software
2,Support the rules and special-shaped handle.
3,Single-port output,can support 1024/2048 lights
4,Off-line control, play back content stored in the SD card
5,T-1000C store a maximum of 16 documents,copy multiple files to the SD card in order
Specific parameters
Memory Card
Type: SD card
Capacity:256MB—2GB
File Format: FAT file format
Store files:*.led
Physical parameters
Weight: 0.2kg
Size: 122mm*67mm*25mm
Temperature: -20°C—85°C
Power Supply: AC 85V—264V
Power: 3W

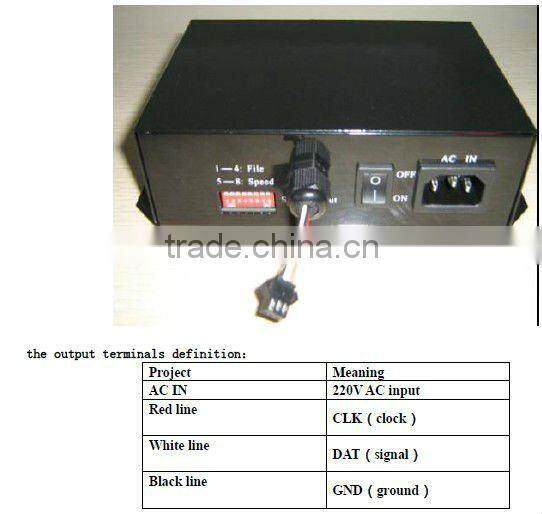

wire connection
pictures :
